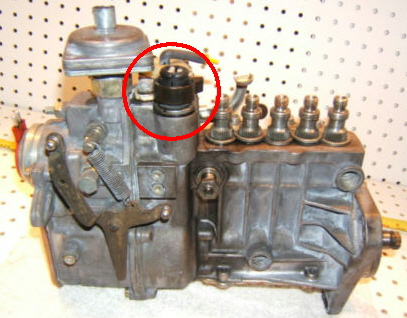

I've traced down a random idle surge to a broken wire in the rack position sensor harness. I need to remove the connector from the sensor, so that I can locate the break. My simple problem is that I'm not sure if it lifts straight out or twists. Anyone know?

Attached Thumbnails



It's a bayonet lock. Give a quarter turn to the collar (that stays with the IP) then pull off the connector. All of mine were stuck so I popped open the connector top and removed the wires when the IP had to come off.

Sixto
83 300SD

That plug can be a serious pain to get off. After turning 1/4 turn to release the plug, wiggle on it while pulling. It can take some real effort depending on how stuck it is.

__________________
Current stable:
1995 E320 149K (Nancy)
1983 500SL 120K (SLoL)

Black Sheep:
1985 524TD 167K (TotalDumpster™)

Gone but not forgotten:
1986 300SDL (RIP)
1991 350SD
1991 560SEL
1990 560SEL
1986 500SEL Euro (Rusted to nothing at 47K!)

Thanks, I'll give that a try.
