Help identifying this device!
Greetings,

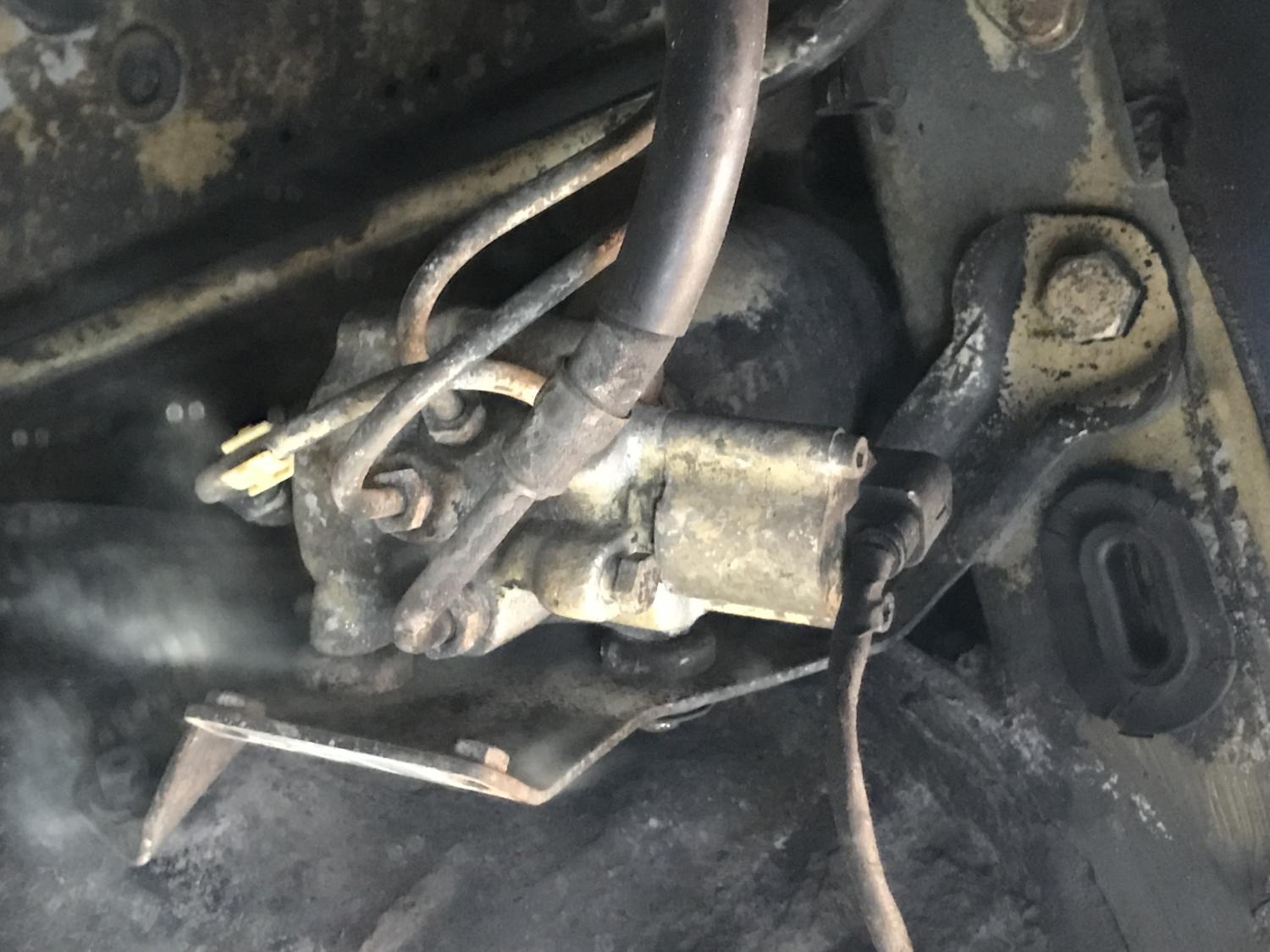

I am trying to identify this device. I am assuming it's an electric fuel pump. I have searched for anything that looks like this and I haven't found it. I have looked on a Benz Dealer parts website but it shows the pump and filter grouping. This is from a 1991 350SD behind the right rear wheel obviously where the fuel pump would be. Thank you, Kris |
#2
|
|||
|
|||
Those look like hydraulic lines to me. Have you traced where they go?
__________________
1977 300d 70k--sold 08 1985 300TD 185k+ 1984 307d 126k--sold 8/03 1985 409d 65k--sold 06 1984 300SD 315k--daughter's car 1979 300SD 122k--sold 2/11 1999 Fuso FG Expedition Camper 1993 GMC Sierra 6.5 TD 4x4 1982 Bluebird Wanderlodge CAT 3208--Sold 2/13 |
#3
|
||||
|
||||
Does this 350SD have ASD? Maybe the first US spec SWB 126 with SLS that I've heard of? There isn't a factory electric pump on these cars. No fuel supply or return lines that small either.
Sixto 83 300SD 98 E320 wagon |
#4
|
||||
|
||||
I'm guessing that's for the ASD system since there's a wire going to it. The rear SLS system is hydraulic only.
-J
__________________
1991 350SDL. 230,000 miles (new motor @ 150,000). Blown head gasket Tesla Model 3. 205,000 miles. Been to 48 states! Past: A fleet of VW TDIs.... including a V10,a Dieselgate Passat, and 2 ECOdiesels. 2014 Cadillac ELR 2013 Fiat 500E. |
#5
|
|||
|
|||
I haven't traced these lines. Yes, this car has ASD.
Thanks for the replies, Kris |
#6
|
||||
|
||||
Then two lines route to the tandem power steering/hydraulic accessory pump and the third goes to the differential.
Sixto 83 300SD 98 E320 wagon |
#7
|
||||
|
||||
Looks like it has an SLS type accumulator on it too. I'd venture that by now it's bad and at the least needs a nitrogen recharge.
-J
__________________
1991 350SDL. 230,000 miles (new motor @ 150,000). Blown head gasket Tesla Model 3. 205,000 miles. Been to 48 states! Past: A fleet of VW TDIs.... including a V10,a Dieselgate Passat, and 2 ECOdiesels. 2014 Cadillac ELR 2013 Fiat 500E. |
