  #1
Old 10-24-2018, 09:15 AM
Registered User

Join Date: Oct 2018
Posts: 3
Oil housing

looking into doing a remote oil filter and removing the the troublesome housing behind the IP to make oil changes easier and access for removal of ip

i founnd om617 relocate adapters for the block but i am unsure if these will work on the om60x blocks. i think the housing themselves differ between the NA and turbo version for oil feed lines but from what i can see the bottom of the housings where they attach to the block look similar.

can anyone verify?

first post guys
thanks

swapping m602 into land rover discovery II

Reply With Quote
  #2
Old 10-24-2018, 09:17 AM
Registered User

Join Date: Oct 2018
Posts: 3
https://www.doomsdaydiesel.net/product-page/om617-oil-filter-relocator

heres the adapter
Reply With Quote
  #3
Old 10-24-2018, 09:18 AM
Registered User

Join Date: Oct 2018
Posts: 3
https://www.doomsdaydiesel.net/product-page/om617-oil-filter-relocator
Reply With Quote
  #4
Old 10-24-2018, 11:18 AM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 51,038
Don't know about your engine but as long as the area on the Engine Block where the filter attaches is flat you simply need a flat plate sufficiently thick to take the treads for what ever hose fittings you pan to use.

If you get a stock Oil Filter to block Gasket you can use that to mark off where the blot holes will go on the flat plate.
Aluminum seems to be the most popular metal to make the plate out of.

In the attached pic the old Gasket could be use to know where to drill the holes.

In the next pic someone used 2 steel (looks like not machined flat) thin steel plates in order to keep the stock filter. However, the stock filter takes up a lot of space.

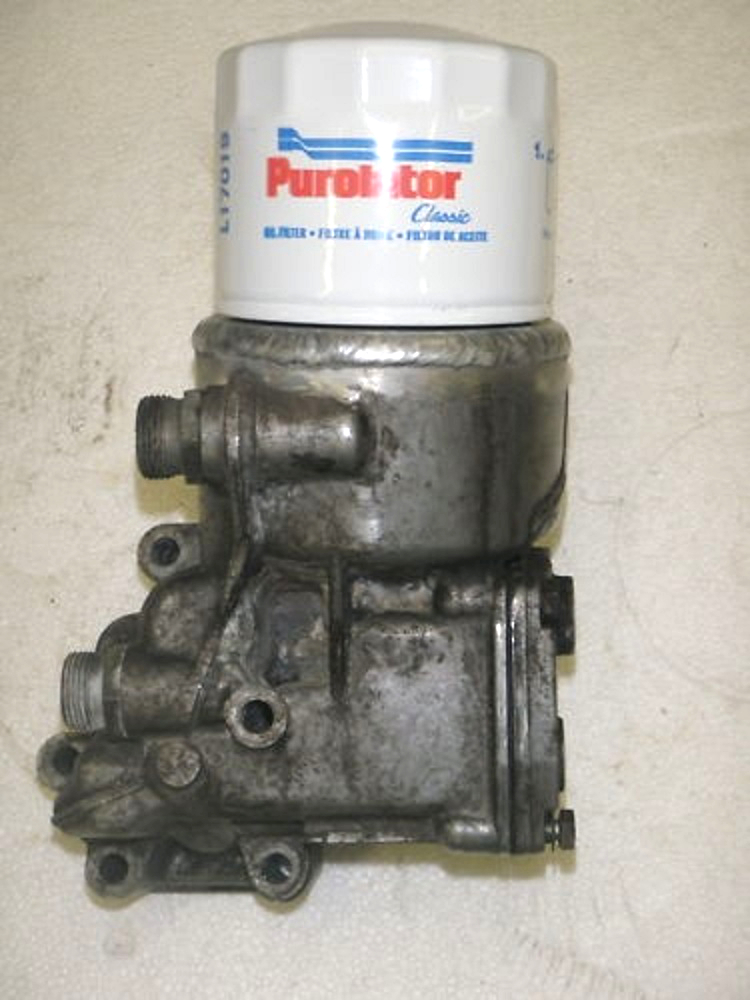

The last example is a picture of what someone was trying to sell on eBay. He welded a spin-on oil filter adapter to a stock housing that was cut down. A complicated thing to do but if the spin on Filter was removed I am guess it would give you room to take the IP out and at the same time it you don't have to worry about finding room for a remote Oil Filter.
However, since the filter is upside down an oil filter change is going to be messy.

Anoter issue is that if you have hoses going to the Oil Filter when you start the Engine it is going to take longer for pressureized oil to get to the Oil Filter and then the Engine.
Attached Thumbnails
Oil housing-oil-filter-adapter-plate-gasket-templet.jpg   Oil housing-oil-filter-adapter-plate-3-.jpg   Oil housing-spin-oil-filter-617-.jpg
__________________
84 300D, 82 Volvo 244Gl Diesel

Last edited by Diesel911; 10-24-2018 at 11:40 AM.
Reply With Quote
  #5
Old 10-24-2018, 03:39 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 51,038
The site you posted has "The OM617 Oil Filter Relocator ..." if there was other engines it fit that would be in the Ad. Hope that did not sound rude. But, if I had adapter plates to sell I would include all of the engines that it fit in the Ad.
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #6
Old 10-24-2018, 11:53 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 51,038
Note that inside of the stock Oil Filter Housing is a Bypass Valve and a Thermostat that controls the oil going into the Oil Cooler.

Any spin on filter that has a bypass valve built into the filter is likely to have a valve the opens way sooner then the Mercedes bypass valve. That means Oil in that particular spin on oil filter would not be passing through the filter element.

__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
