LED dash light bulbs

I want to convert my old standard bulbs to the new LED ones. I know the bulbs don't cost much, maybe $1 each or something, but I don't want to buy crummy ones that start flickering and failing 2 months after I put them in.

Has anyone converted and how are the results? Are there any quality brands out there that you know of, or do you know which brands to avoid?

Also how many lights on the dash? There's 1 or 2 for the speedometer cluster,
one for the a/c controls, one for the shifter, and what other ones?

Thanks,

Jeff 1991 300d, 218k
Reply With Quote
  #2
Old 12-23-2018, 12:46 PM
Registered User

Join Date: Dec 2018
Posts: 109
Watching want to do the same thing!

Sent from my SM-G892A using Tapatalk
__________________
Brad

Bunch of old metal, trying to keep it on the road....
Reply With Quote
  #3
Old 12-23-2018, 03:15 PM
Registered User

Join Date: Jun 2006
Location: Southeast
Posts: 1,572
Short of any replies.....

Short of any replies, I guess I'll just have to call a MB parts dealer to see what bulbs they have. I just don't want to end up with any junk from China where I'm driving down the road and the lights start to flicker then suddenly quit. I don't want to do the job twice.
Reply With Quote
  #4
Old 12-23-2018, 03:36 PM
Maximan1's Avatar
Registered User

Join Date: Sep 2018
Location: Anaheim
Posts: 119
LEDs pretty much all come from China. The $1-$2 ones are garbage. There's some that Kent sells, they work well. I've had good luck with name brand bulbs - you can buy them from Walmart, autozone, or any auto parts store. You will pay a premium, but I've had no issues with any of them at all. All my dash lights are LEDs, including the back lighting on the center console and HVAC knobs.
__________________
Milan Brown 1979 240D (dead), currently rebuilding a 1985 OM617 to swap in.

1996 Honda Civic (daily driver)
Reply With Quote
  #5
Old 12-24-2018, 04:00 PM
Vice President of Snark

Join Date: Nov 2009
Location: Austin, TX
Posts: 1,207
I'm running these : https://www.superbrightleds.com/moreinfo/miniature-wedge-base/194-led-bulb-3-smd-led-miniature-wedge-retrofit-car/3551/

And they are good at night. My dash lights (spider lights) aren't working now though, haven't figured it why.
Reply With Quote
  #6
Old 12-29-2018, 02:59 AM
Registered User

Join Date: Jun 2006
Location: Southeast
Posts: 1,572
What are spider lights?

Quote:
Originally Posted by andrewjtx View Post
I'm running these : https://www.superbrightleds.com/moreinfo/miniature-wedge-base/194-led-bulb-3-smd-led-miniature-wedge-retrofit-car/3551/

And they are good at night. My dash lights (spider lights) aren't working now though, haven't figured it why.
For the link you gave, those look like speedometer cluster bulbs, and not for the shifter area and climate control, etc. Is that what those are?

And what are spider lights?
Reply With Quote
  #7
Old 12-29-2018, 09:52 AM
jay_bob's Avatar
Control Freak

Join Date: Oct 2011
Location: Columbia, SC
Posts: 3,269
The “spider” refers to the fiber optic light distributor behind the dash that lights up the rocker switches above the heater controls. One bulb lights up all these switches.
__________________
2014 ML350 Bluetec (wife's DD)
2008 E320 Bluetec (my DD)
2008 ML320 CDI (Older son's college DD)
1998 E300DT (Younger son's college DD)
1987 300TD sold to vstech
----------
gone but living on
1983 240D (body to greazzer, engine to t walgamuth)
Reply With Quote
  #8
Old 12-30-2018, 05:16 AM
Registered User

Join Date: May 2008
Posts: 44
I played with LED's on my w123 cluster. While not the same, something to consider are bulb dimensions. Your LED bulbs that you're looking at might have the same bulb base as their incandescent equivalent, but the bulb height may be different. As i remember, in some instances the bulb was too tall such that i couldn't even screw in the base.
Reply With Quote
  #9
Old 01-02-2019, 08:35 AM
Bengoshi2000's Avatar
1991 300D 2.5 Turbo

Join Date: Jan 2011
Location: NC, USA
Posts: 229

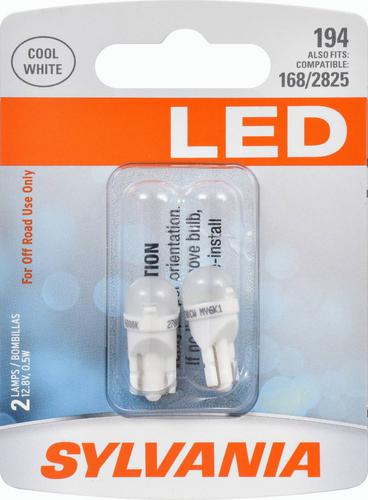

I used these for the main bulb pair in the cluster. The white frosted cap will come off allowing it to fit perfectly in the cluster.

__________________
1991 300D 2.5
Reply With Quote
  #10
Old 01-04-2019, 09:44 PM
Registered User

Join Date: Aug 2018
Location: Netherlands, South
Posts: 232
I use these in my W123 dash.

4300k on the left:



Reply With Quote
  #11
Old 01-06-2019, 02:51 PM
Registered User

Join Date: Jun 2006
Location: Southeast
Posts: 1,572
How do you change the climate control bulbs?

Years ago I'm smartly used a straw to go over the bulb to then pull it out, preventing me from having to take apart the whole assembly. But this time I don't have and can't find the same diameter straw.

If I wanted to take that plastic assembly apart that holds the bulbs how can I do that without breaking any of the plastic clips that appear to keep the two halves together?
Reply With Quote
  #12
Old 01-07-2019, 08:32 AM
jay_bob's Avatar
Control Freak

Join Date: Oct 2011
Location: Columbia, SC
Posts: 3,269
There is actually a tool made for this purpose, the name is “lamp extractor”. It was developed for the telephone industry for the little incandescent bulbs used on the operator switchboards and the older key system business phones. They continue to be used on industrial control panels for removing incandescent bulbs in operator devices. Just looked on eBay and there were several offered in the $10-20 range.

A piece of rubber tubing also works very well for this.
__________________
2014 ML350 Bluetec (wife's DD)
2008 E320 Bluetec (my DD)
2008 ML320 CDI (Older son's college DD)
1998 E300DT (Younger son's college DD)
1987 300TD sold to vstech
----------
gone but living on
1983 240D (body to greazzer, engine to t walgamuth)
Reply With Quote
  #13
Old 01-07-2019, 09:24 AM
Registered User

Join Date: Dec 2018
Posts: 109
Quote:
Originally Posted by jay_bob View Post
There is actually a tool made for this purpose, the name is “lamp extractor”. It was developed for the telephone industry for the little incandescent bulbs used on the operator switchboards and the older key system business phones. They continue to be used on industrial control panels for removing incandescent bulbs in operator devices. Just looked on eBay and there were several offered in the $10-20 range.

A piece of rubber tubing also works very well for this.
WOW!! Somebody else knows about these!! Been in telecom since the mid 80's in the Army, changed many a switchboard and phone lights with them!!

Sent from my SM-G892A using Tapatalk
__________________
Brad

Bunch of old metal, trying to keep it on the road....
Reply With Quote
  #14
Old 01-07-2019, 12:20 PM
Registered User

Join Date: Jun 2006
Location: Southeast
Posts: 1,572
Someone else said 1/4 rubber tubing

Someone on a thread long ago said 1/4" rubber tubing would do the trick.
