81-240 D axles

Getting parts gathered to do my rear diff swap and was looking at part here on Pelican, going to get new output seals but also my search pulled up this part number 407-33-003-INT, complete axle shaft assemblies for basically $55.00 each...assuming Pelican wouldn't sell junk ...right....

I was looking at doing the boot kits but fighting those all over the driveway was going to be fun...so...anybody have any experience with these complete shafts...I'm VERY skeptical of them do to the "get what you pay for thing" but I want to trust Pelican on not offering..shall we say..substandard parts....
__________________
Brad

Bunch of old metal, trying to keep it on the road....
Reply With Quote
  #2
Old 01-13-2019, 02:11 PM
CDTurbo001's Avatar
Registered User

Join Date: Oct 2017
Location: Campbellsville, KY
Posts: 144
I bought Cardone axles off of rock auto for about the same price - they've only been installed a few months but they looked alright when they went in. Also put in some DSS axles from auto house Aye Zee (about twice this price) back in the summer - I had to remove one trailing arm bolt to get them in because they didn't articulate quite as far as the originals, but they're holding up fine so far.
__________________
'82 300CD
"Pearl", the very first turbo diesel 123 coupe
Totaled 11/23/18, rebuild in progress.
'85 300TD, "Artemis".
'78 300D euro, "Ol' Red".
Reply With Quote
  #3
Old 01-13-2019, 03:30 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 25,569
Quote:
Originally Posted by CDTurbo001 View Post
I bought Cardone axles off of rock auto for about the same price - they've only been installed a few months but they looked alright when they went in. Also put in some DSS axles from auto house Aye Zee (about twice this price) back in the summer - I had to remove one trailing arm bolt to get them in because they didn't articulate quite as far as the originals, but they're holding up fine so far.
Were they Cardon Rebuilt Axles or Cardon New Axles?

The Cardon Rebuilt Axles are original Mercedes Axles. I had them on mine and after 5 years the boots started to crack (not cracked through to the inside) and I re-booted them myself.
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #4
Old 01-13-2019, 03:51 PM
Registered User

Join Date: Dec 2018
Posts: 99
Quote:
Originally Posted by Diesel911 View Post
Were they Cardon Rebuilt Axles or Cardon New Axles?

The Cardon Rebuilt Axles are original Mercedes Axles. I had them on mine and after 5 years the boots started to crack (not cracked through to the inside) and I re-booted them myself.
The ones on that rock place are Remans..says so right in the description...
__________________
Brad

Bunch of old metal, trying to keep it on the road....
Reply With Quote
  #5
Old 01-13-2019, 04:06 PM
Registered User

Join Date: Sep 2001
Posts: 551
Take a look at CVJ axles.
__________________
Does a Caddy stretch? No, but a Mercedes bendz.
Reply With Quote
  #6
Old 01-13-2019, 04:27 PM
Registered User

Join Date: Dec 2018
Posts: 99
Quote:
Originally Posted by Sugar Bear View Post
Take a look at CVJ axles.
Yup.. Sent them an email also

Sent from my SM-G892A using Tapatalk
__________________
Brad

Bunch of old metal, trying to keep it on the road....
Reply With Quote
  #7
Old 01-13-2019, 05:16 PM
Registered User

Join Date: Sep 2004
Posts: 8,569
Quote:
Originally Posted by BATComm1966 View Post

I was looking at doing the boot kits but fighting those all over the driveway was going to be fun...
Could you explain what that means?
__________________
When cryptography is outlawed, bayl bhgynjf jvyy unir cevinpl.
Reply With Quote
  #8
Old 01-13-2019, 05:29 PM
Registered User

Join Date: Dec 2018
Posts: 99
Quote:
Originally Posted by tangofox007 View Post
Could you explain what that means?
It usually takes a special tool to install the boots, I should say to Strech them over the cans.. I don't have that tool so I was assuming I would be "fighting them all over the driveway" putting them on.

Sent from my SM-G892A using Tapatalk
__________________
Brad

Bunch of old metal, trying to keep it on the road....
Reply With Quote
  #9
Old 01-13-2019, 05:57 PM
Registered User

Join Date: Sep 2001
Posts: 551
I've used the manual tool to stretch the new boots over/on, it was not easy.
__________________
Does a Caddy stretch? No, but a Mercedes bendz.
Reply With Quote
  #10
Old 01-13-2019, 06:27 PM
Registered User

Join Date: Dec 2018
Posts: 99
I've done them on VW stuff but nothing like these cans.. I can only imagine...

Sent from my SM-G892A using Tapatalk
__________________
Brad

Bunch of old metal, trying to keep it on the road....
Reply With Quote
  #11
Old 01-13-2019, 06:33 PM
Registered User

Join Date: Sep 2004
Posts: 8,569
Quote:
Originally Posted by BATComm1966 View Post
It usually takes a special tool to install the boots, I should say to Strech them over the cans.. I don't have that tool so I was assuming I would be "fighting them all over the driveway" putting them on.
I have an Astoria Rapid Flexx Gun in you need it. Band crimper, too.
__________________
When cryptography is outlawed, bayl bhgynjf jvyy unir cevinpl.
Reply With Quote
  #12
Old 01-13-2019, 07:08 PM
Registered User

Join Date: Dec 2018
Posts: 99
Quote:
Originally Posted by tangofox007 View Post
I have an Astoria Rapid Flexx Gun in you need it. Band crimper, too.
Where are you located??

Sent from my SM-G892A using Tapatalk
__________________
Brad

Bunch of old metal, trying to keep it on the road....
Reply With Quote
  #13
Old 01-14-2019, 12:18 AM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 25,569

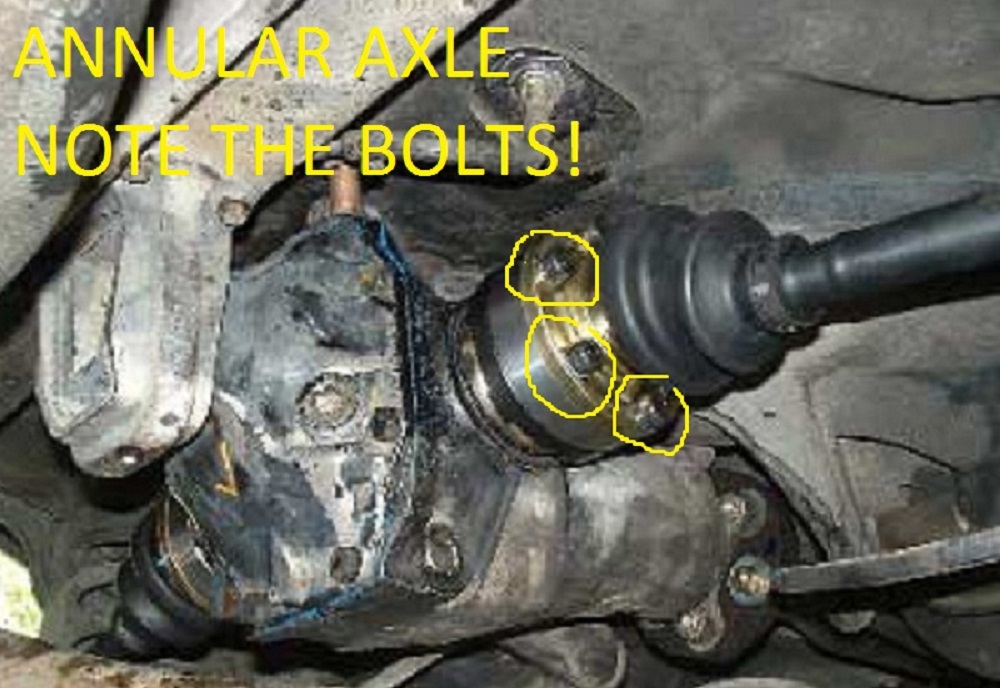

If your axle looks like the one in the pic on the differential end you don't need to stretch the boots.

To use the Astoria Flexx Gun boot spreader you need access to compressed air.
Attached Thumbnails
81-240 D axles-annular-axle-under-car-x.jpg
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #14
Old Yesterday, 01:34 AM
vwnate1's Avatar
Diesel Dandy

Join Date: Nov 2005
Location: Sunny So. Cal. !
Posts: 3,729
Post Drive Axle Boot R&R

Just for fun, look up ATF funnel boot replacement on you tube .

I don't see how it works but apparently it's do - able .

I look for annular axles in the junk yards, buy them and re boot, not difficult, just messy and like all important jobs, fiddly if you want it to last .

FWIW, I use original Mercedes boots from the Classic Center, not terribly $pendy, I just have to budget for them .
__________________
-Nate
1982 240D creampuff 370,000 miles
1978 300CD back from the dead&1980 300CD ~ SOLD
1984 300CD KEEPER ! 430,XXX miles
1984 Euro 300TD Fully optioned SWMBO's
1974 350SLC 4 speed stickshift SOLD & missed
Krazy Kommie Ural Motos (3)
BMW Moto R60/6 Barn Find, 8,000miles
1959 VW #113 Deuxe Beetle, 36hp engine, stock
Junk, Rust, Arthritis, Crushed Spine,Broken Neck&Back
Memories &Peace Of Mind
Reply With Quote
  #15
Old Yesterday, 08:50 AM
t walgamuth's Avatar
dieselarchitect

Join Date: Apr 2005
Location: Lafayette Indiana
Posts: 33,394
I like Nate's method. The original bearings are probably lifetime parts if the boots are kept intact. OTOH buying new cheap parts may be a lot less labor but may not last as long. I suspect money wise it would be a wash if hiring the work done, but a person on a budget would probably come out ahead using Nate's method and mb parts.
__________________
[SIGPIC] Diesel loving autocrossing grandpa Architect. 08 Dodge 3/4 ton with Cummins & six speed; I have had about 35 benzes. I have a 39 Studebaker Coupe Express pickup in which I have had installed a 617 turbo and a five speed manual. It still needs upholstery redone...I also have a 427 Cobra replica with an aluminum chassis.
Reply With Quote
