W123 300D fuel lines/tubing (2 & from Filter)

My lines (the clear lines leading to and from the main fuel filter) are quite hard/brittle. i have been able to find a replacement for one, but not the other. Replacements come with the brass fittings at each end, but my question here is:
Is it not possible to retain the fittings and simply find similar tubing, sliding it on to existing fittings? If so, would anyone be able to provide me with specs/links/recommendations for sourcing this tubing?

Thanks,
Brice

Reply With Quote
  #2
Old 06-25-2020, 02:42 PM
Registered User

Join Date: Feb 2019
Posts: 124
Belmertic.com has fittings.
Reply With Quote
  #3
Old 06-25-2020, 08:06 PM
JHZR2's Avatar
Registered User

Join Date: Jan 2002
Location: New Jersey
Posts: 4,217
Quote:
Originally Posted by hercules View Post
Belmertic.com has fittings.
Think the question is the opposite - needs the tubing.
__________________
Current Diesels:
1981 240D (73K)
1982 300CD (162k)
1991 350SD (113k)

Past Diesels:
1983 300D (228K)
1985 300D (233K)
Reply With Quote
  #4
Old 06-25-2020, 08:34 PM
vwnate1's Avatar
Diesel Dandy

Join Date: Nov 2005
Location: Sunny So. Cal. !
Posts: 5,512
Post Clear Plastic Fuel Lines

The M-B Classic Center had them for my 1982 240D reasonably priced, you'll need to give them the VIN .

They'll ship to your door and have all manner of fiddly little parts no one else does .

In Irvine, Ca. .
__________________
-Nate
1982 240D stripper 380,000 miles
1984 300CD KEEPER ! 481,XXX miles
1984 Euro 300TD Fully optioned SWMBO's
1974 350SLC 4 speed SOLD & missed
Kooky Kommie Ural Motocycles (3)
BMW Moto R60/6 Barn Find, 8,000miles
1959 VW #113 DeLuxe Beetle, 36hp engine, stock
Junk, Rust, Arthritis, Crushed Spine,Broken Neck, Back & arm, lots of screws, pins & plates .
Memories, Peace Of Mind
facts & reality don't change because you can't handle them
Reply With Quote
  #5
Old 06-25-2020, 10:34 PM
Registered User

Join Date: Feb 2019
Posts: 124
Belmetric has line or hose also ,give a look and choose,if you want to make your own.
Reply With Quote
  #6
Old 06-26-2020, 01:06 AM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 33,595
If you don't value having a clear hose they can be replaced with regular fuel hose you get at the chain auto parts stores. I replaced them with rubber hose when I modified my Filter Housing (to install a lager diameter fuel filter) that required moving the housing a inch+ which would not allow the stock hoses to work.

Getting the Plastic Hose off of the Banjo Nipples required me to use tap to pad the jaws of a vice grips used to grab the Banjo and I used a propane torch with only enough heat to soften the plastic so you can yank it completely off.
If you over heat it the plastic will stick to the nipple and you risk scratching the nipple when you remove the melted on plastic hose.

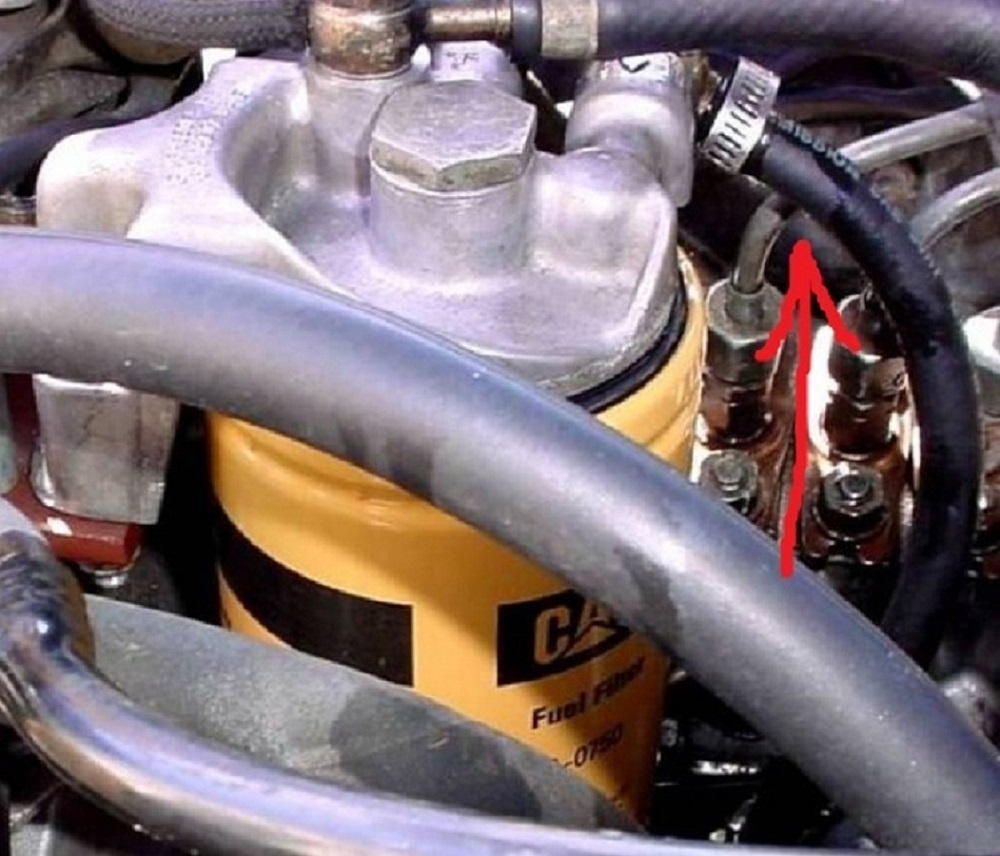

The red arrow in the attached pic points to one of the lines I replaced with rubber hose.
Attached Thumbnails
W123 300D fuel lines/tubing (2 & from Filter)-cat-fuel-filter-rubber-hose-2020.jpg
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #7
Old 06-26-2020, 01:19 AM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 33,595

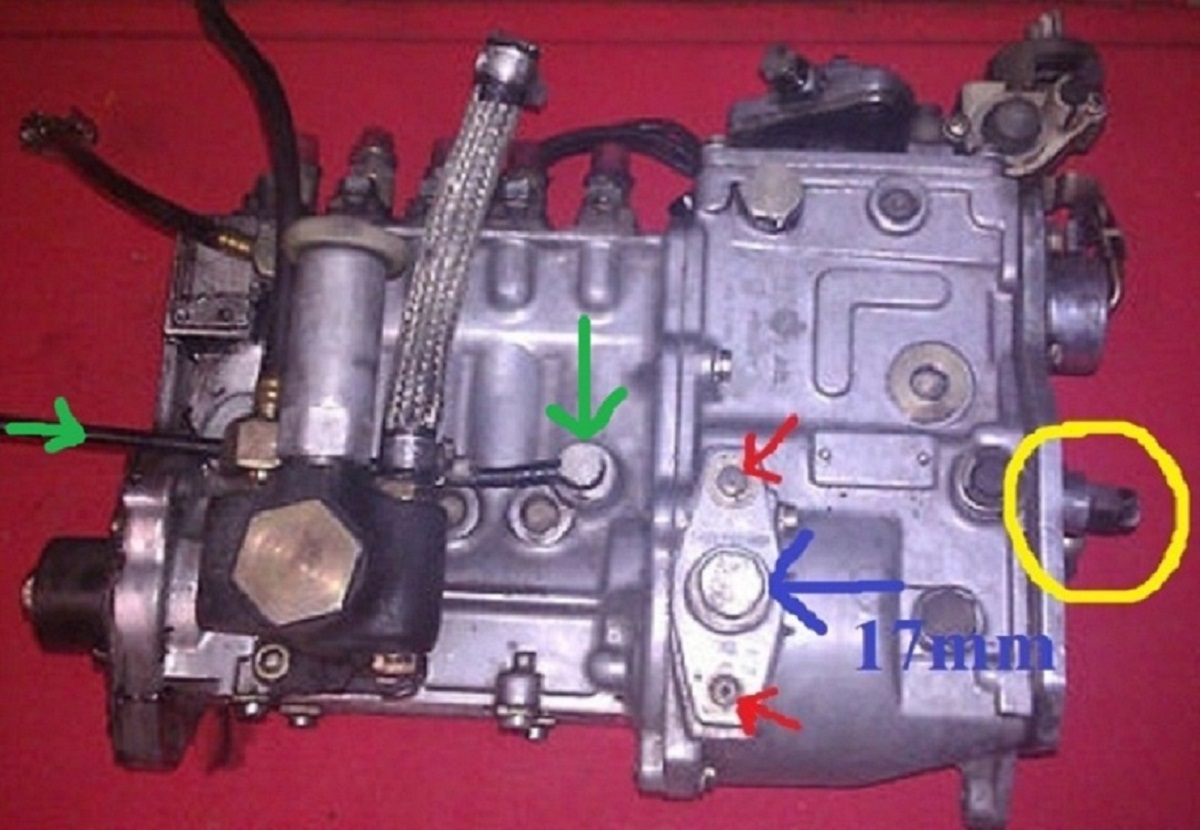

If you have an MW type fuel injection Pump you might consider replacing the skinny oil supply line that goes from the block to the fuel injection pump. It is made similar plastic as the fuel lines.
Attached Thumbnails
W123 300D fuel lines/tubing (2 & from Filter)-fuel-injection-pump-side-view-showing-17mm-plug-oil-supply-line-2020.jpg
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #8
Old 06-26-2020, 12:30 PM
Registered User

Join Date: Jun 2020
Posts: 2
Thanks @Diesel911, I do have that skinny oil supply line (green arrow). It is a lot thinner, but is likely quite brittle. I'll look at swapping that too.

Thanks to the others for sourcing options. I'd not yet found either of those sources. Much appreciated.
I'd like to stick with the clear line if possible, so will go that route first. For removing the line, as it is quite hard, I'd think the best rout for removal would be to cut a line (in line with the hose) where it goes over the fitting, as I'm sure it would be a nightmare to just pull off. If I cut it (razor blade), I'd think that would allow me to get it off.
Reply With Quote
  #9
Old 06-26-2020, 12:48 PM
vwnate1's Avatar
Diesel Dandy

Join Date: Nov 2005
Location: Sunny So. Cal. !
Posts: 5,512
Post Mercedes Classic Center irvine, Ca.

Here it is :


Classic Car Genuine Parts

A classic Mercedes-Benz is a treasure worth cherishing. Keep it running like new with Mercedes-Benz Genuine Parts.

Call 1-866-622-5277 or email classicparts@mbusa.com to order your parts directly from Mercedes-Benz Classic

Those hard plastic lines are hard for a reason....
