Hi,

I broke it. What a dope. My ACC was not functioning and when I went to replace the foam (which I knew disintegrated) I found the hose and housing for the temp sensor were disconnected. I tried to reassemble and I snapped the little sensor off.

Does anyone know a part numbers and sources for the following pieces?

--dashboard temp sensor
--the plastic housing that holds the temp sensor and connects to the hard plastic hose (it is white plastic in my car)

Thanks!

Chuck

__________________
1983 300td 240k (down with bad tranny)
1984 300d 222k (daily driver) "Olive"
1997 GMC K2500 105k (sled dog limo)

"The scenery in ANWR is as spectacular as the Grand Canyon and the wildlife is more impressive."

i'm going to follow this too, because i did the same dang thing, grrr

__________________
1984 300D Turbo - 231k....totalled 11/30/07 RIP

Call Phil and ask. He sells parts.

__________________
Rick Miley
2014 Tesla Model S
2018 Tesla Model 3
2017 Nissan LEAF
Former MB: 99 E300, 86 190E 2.3, 87 300E, 80 240D, 82 204D Euro
Chain Elongation References

I called Phil, he came up with part number 1268301772 which is an A/C E.T.R. Switch. It looks very close to what I broke except the base on this one is rectangular and I have a round base. Phil's part also has what looks like a plastic housing to protect the piece that I snapped off on mine. So, it does not appear to be the same part...any advice? I'll post the picture below.

84300DT

Is the part in this picture the same as yours? Or do you too have the round based piece?

Chuck

Attached Thumbnails



__________________
1983 300td 240k (down with bad tranny)
1984 300d 222k (daily driver) "Olive"
1997 GMC K2500 105k (sled dog limo)

"The scenery in ANWR is as spectacular as the Grand Canyon and the wildlife is more impressive."

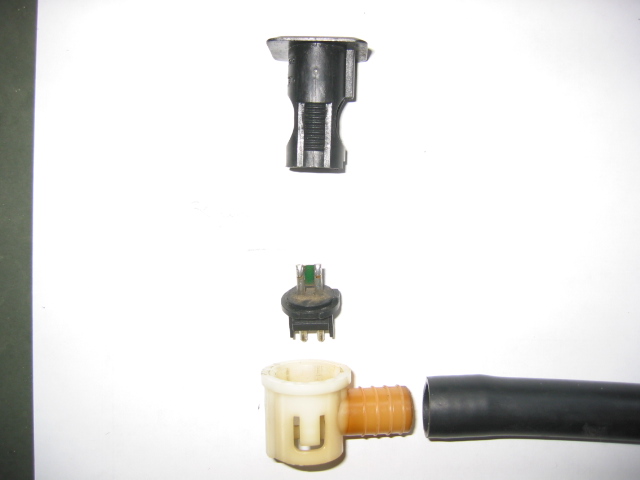

My assembly looks like this:

The top (black piece) is the mini-grill that slips into the hole in the dashboard. The temp sensor slides into this piece.

The round black piece is the temp sensor, minus the part I snapped off that fell into never-never land.

The mini-grill / temp sensor assembly then slide into the white piece and lock together. The plastic hose slides onto the barbed tube on the right.

Advice?

Attached Thumbnails



__________________
1983 300td 240k (down with bad tranny)
1984 300d 222k (daily driver) "Olive"
1997 GMC K2500 105k (sled dog limo)

"The scenery in ANWR is as spectacular as the Grand Canyon and the wildlife is more impressive."

i recall mine was round. the sensor end was not protected at all.
the 1st picture is certainly different looking. the plug end looks the same though. grr, i'm gonna have to take the glove compartment out again.

it is kind of annoying the heat is either on or off - no in between. same with a/c.

edit: your second pic is exactly the same as mine. the part i broke was that little round piece off the sensor tip end . it seems to be missing from your pic as well.

__________________
1984 300D Turbo - 231k....totalled 11/30/07 RIP

The top is 123-830-0572, and the bottom piece is 126-835-0079. The piece in the middle probably goes with either the bottom or top, as one piece.

Ok the top photo that Phil gave you is correct in that it is a AC ETR unit. This item goes in the heater/evaporator box BEHIND the center consol.
What your asking about is the cabin temperature sensor that in on the top center of the dash.

Job number 83-640

http://skinnerbox.steaky.org/123_DISK2/program/123-cd-index.html

Dave

__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car

Heres where the ETR sensor goes. This is the center of the heater/evaporator box right behind the Ac controls.

Dave

Attached Thumbnails



__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car

Just so you know. You did break your temperature sensor. You will probably have to get it at the dealer.
Here is a picture of mine. Notice the flat metal unit inside. that is what went to never-neverland (watch out for Michael ).

Dave

Attached Thumbnails



__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car

dave, yes that's the little bugger that broke but where to find one? that is the question. the dealer i went to didn't have any and said it would have to be ordered from germany!!!

__________________
1984 300D Turbo - 231k....totalled 11/30/07 RIP

1. Do a Google search for "Used Mercedes parts" and start calling.
2. Check the other Mercedes dealers near you

Dave

__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car

Email this guy.

OrderUsedParts115,116,123&126

Dave

__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car

AK300DT

Phil was able to find the parts...you can order them through the PartsShop link at the top of the screen. They are

123 830 05 72 SENSOR,INSIDE AIR TEMP '81-> $30.00
126 835 00 79 THERMOSTAT $4.50

I am guessing (hoping) that the "sensor" part is the black grill and the white cup and the "thermostat" is the piece that sits between them. We'll see in a few days, let me know if you want confirmation on this.


dmorrison
Thanks for the advice, photos and link to the repair manual site!

speedy300Dturbo
Thanks for the part numbers speedy, I just got back from a dog trip and got your post and Phil's email in the same inbox!

__________________
1983 300td 240k (down with bad tranny)
1984 300d 222k (daily driver) "Olive"
1997 GMC K2500 105k (sled dog limo)

"The scenery in ANWR is as spectacular as the Grand Canyon and the wildlife is more impressive."

thanks ak300 , yes would like to know due course which is the part no. for the sensor.
