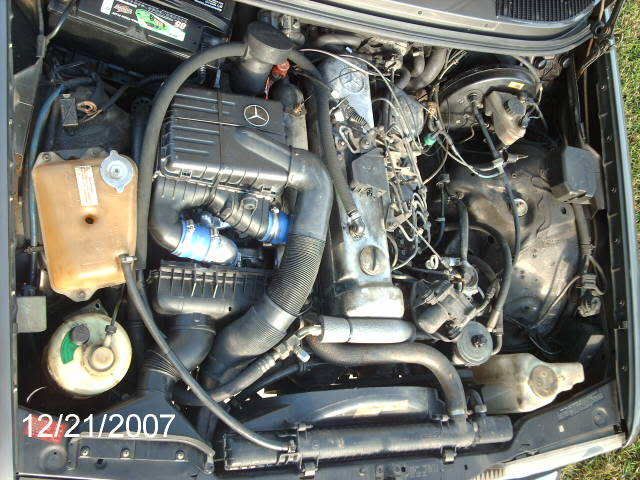

Air/water intercooler installed in my 240D - Page 3 - PeachParts Mercedes-Benz Forum

#1 05-25-2007, 12:27 AM

I found some interesting info. An intercooled OM617 at 14psi (75*f air and 75% volumetric efficiency) should flow about 400cfm.

Quote:

According to Corky Bell, Maximum Boost pg 61, 304 MPH or 0.4 mach is the point at which airflow meets increased resistance (drag) and flow losses are experienced.

0.4 mach = 304 MPH

2" piping
1.57 x 2 = 3.14 sq in
300 cfm = 156 mph = 0.20 mach
400 cfm = 208 mph = 0.27 mach
500 cfm = 261 mph = 0.34 mach
585 cfm max = 304 mph = 0.40 mach

2.25" piping
3.9740625 sq in = 1.98703125 x 2
300 cfm = 123 mph = 0.16 mach
400 cfm = 164 mph = 0.21 mach
500 cfm = 205 mph = 0.26 mach
600 cfm = 247 mph = 0.32 mach
700 cfm = 288 mph = 0.37 mach
740 cfm max = 304 mph = 0.40 mach

2.5" piping
4.90625 sq in = 2.453125 x 2
300 cfm = 100 mph = 0.13 mach
400 cfm = 133 mph = 0.17 mach
500 cfm = 166 mph = 0.21 mach
600 cfm = 200 mph = 0.26 mach
700 cfm = 233 mph = 0.30 mach
800 cfm = 266 mph = 0.34 mach
900 cfm = 300 mph = 0.39 mach
913 cfm max = 304 mph = 0.40 mach

2.75" piping
5.9365625 sq in = 2.96828125 x 2
300 cfm = 82 mph = 0.10 mach
400 cfm = 110 mph = 0.14 mach
500 cfm = 137 mph = 0.17 mach
600 cfm = 165 mph = 0.21 mach
700 cfm = 192 mph = 0.25 mach
800 cfm = 220 mph = 0.28 mach
900 cfm = 248 mph = 0.32 mach
1000 cfm = 275 mph = 0.36 mach
1100 cfm max = 303 mph = 0.40 mach

3.0" piping
7.065 sq in = 3.5325 x 2
300 cfm = 69 mph = 0.09 mach
400 cfm = 92 mph = 0.12 mach
500 cfm = 115 mph = 0.15 mach
600 cfm = 138 mph = 0.18 mach
700 cfm = 162 mph = 0.21 mach
800 cfm = 185 mph = 0.24 mach
900 cfm = 208 mph = 0.27 mach
1000 cfm = 231 mph = 0.30 mach
1100 cfm = 254 cfm = 0.33 mach
1200 cfm = 277 mph = 0.36 mach
1300 cfm max= 301 mph = 0.39 mach
