  #1
Old 09-15-2009, 01:38 PM
Registered User

Join Date: Apr 2009
Posts: 2
Question OIL EXTRACTOR NOT WORKING DILEMA !

I am attempting to do an oil extraction on my 2005 C320 Sport Sedan using a topsider Pela Pro extractor. I was able to only extract 2 quarts and no more. Checked all tubing for air leaks or hissing...none found.
Venting the extraction process by ONLY opening and removing the OIL FILTER STEM housing. I DID NOT remove the oil filler cap- oil filler cap was left closed. I could see the oil trying to get out...but only to be sucked back down. There seems to be a venting issue...as I stated I did NOT open the oil filler cap...do I need to do this, to provide maximum venting? Engine oil was very warm, engine run 5 minutes prior to extraction attempt. Any suggestions? Please help!
Reply With Quote
  #2
Old 09-15-2009, 02:27 PM
TX76513's Avatar
Platinum Member

Join Date: Apr 2003
Location: Brandon, Mississippi
Posts: 5,203
Unscrew the cap and look to make sure your small suction line is connected to the base of the piston tube securely and the check valve is positioned twards the top of the unit. I always open the 710 cap to vent.
__________________
BENZ THERE DONE THAThttp://www.peachparts.com/shopforum/...c/progress.gif
15 VW Passat TDI
00 E420
98 E300 DT
97 E420 Donor Car - NEED PARTS? PM ME!
97 S500
97 E300D
86 Holden Jackaroo Turbo D
86 300SDL
(o\|/o)
Reply With Quote
  #3
Old 09-15-2009, 02:57 PM
Registered User

Join Date: Jan 2006
Location: Tucson, AZ
Posts: 4,501
Quote:
Originally Posted by TX76513 View Post
I always open the 710 cap to vent.

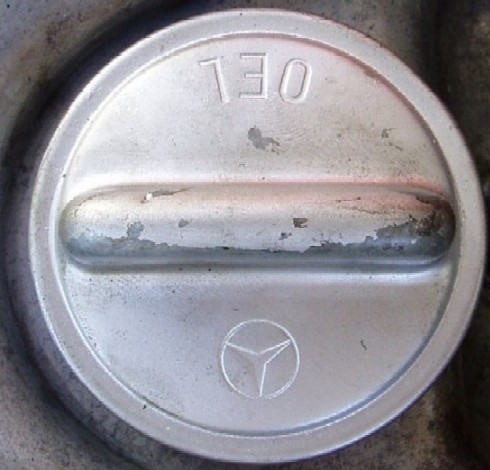

I don't think so! You should have a 730 cap! If you have a 710 then you have a cheap 'merican replacement!

OIL EXTRACTOR NOT WORKING DILEMA !-netwit-019.jpg

I don't know about the Pella but my Mity-vac can be persnickety at times regarding the pick-up tube. It's easy to push the tube past the oil pan bottom UP into a U-shape above the oil level. I always measure the dip stick, match the pick-up and then finagle it around just a little until I feel that slight "catch" which tells me I am at bottom.

You are using the pick-up tube and not just attaching to the dipstick tube, correct?

Last edited by Mike D; 09-16-2009 at 12:31 PM.
Reply With Quote
  #4
Old 09-15-2009, 03:08 PM
TX76513's Avatar
Platinum Member

Join Date: Apr 2003
Location: Brandon, Mississippi
Posts: 5,203
Quote:
Originally Posted by Mike D View Post
I don't think so! You should have a 730 cap! If you have a 710 then you have a cheap 'merican replacement!
I bought the very best HERE
__________________
BENZ THERE DONE THAThttp://www.peachparts.com/shopforum/...c/progress.gif
15 VW Passat TDI
00 E420
98 E300 DT
97 E420 Donor Car - NEED PARTS? PM ME!
97 S500
97 E300D
86 Holden Jackaroo Turbo D
86 300SDL
(o\|/o)
Reply With Quote
  #5
Old 09-16-2009, 06:49 AM
Registered User

Join Date: Aug 2002
Location: Southeastern PA
Posts: 2,994
It's best to at least loosen the oil filler cap. The Griot's Garage Liquid/Oil Extractor kit has a wire inside the extraction line to keep the line straight and against the bottom of the oil pan. You may want to compare the quality of the GG oil extractor with the one you're using.
__________________
Fred Hoelzle
Reply With Quote
  #6
Old 09-16-2009, 07:01 AM
LarryBible
Guest

Posts: n/a
HMMmmm..... Does this engine have a removable drain plug in the bottom of the oil pan?
Reply With Quote
  #7
Old 09-16-2009, 11:06 AM
ejboyd5's Avatar
Registered User

Join Date: Aug 2004
Location: Southold, NY
Posts: 255
Quote:
Originally Posted by LarryBible View Post
HMMmmm..... Does this engine have a removable drain plug in the bottom of the oil pan?
That's so "old school," there is a chance you might actually get dirty if you used that approach. It's much, much better to spend untold $$$ on a high-tech oil extractor rather then using gravity which, if I am correct, has been around even longer than the automobile.
Reply With Quote
  #8
Old 09-16-2009, 12:20 PM
Registered User

Join Date: Jan 2006
Location: Tucson, AZ
Posts: 4,501
Give it a break guys. If you don't want to use an extractor then that's fine. Everybody is entitled to use whatever method they choose.

Since neither of you guys use an extractor why would you be commenting on their use?
Reply With Quote
  #9
Old 09-16-2009, 06:27 PM
LarryBible
Guest

Posts: n/a
I made no comment whatsoever regarding the use of the extractor. I merely asked if the oil pan has a drain plug. It just seems as if it would be a good back up plan in such instances. Silly me!
Reply With Quote
  #10
Old 09-25-2009, 03:46 PM
Registered User

Join Date: Apr 2009
Posts: 2
Cool

....the car DOES have a drain plug...and I will be happy to utilize it...as long as you can instruct on how to do so WITHOUT raising the car or removing the bottom engine cover plate. That is the reason for using an
extractor....SILLY ME !
Reply With Quote
  #11
Old 11-01-2009, 12:59 PM
Registered User

Join Date: Nov 2009
Posts: 1
congratulations to EYECON and SOMU.i really like your works.hope to see u in the next challenge .....
Reply With Quote
  #12
Old 11-04-2009, 11:30 AM
Dee8go's Avatar
Senor User

Join Date: Apr 2006
Location: Arlington, VA
Posts: 7,190
Quote:
Originally Posted by LarryBible View Post
I made no comment whatsoever regarding the use of the extractor. I merely asked if the oil pan has a drain plug. It just seems as if it would be a good back up plan in such instances. Silly me!
Why not just tip the car over on its side, Larry? Wouldn't that work? That's how I drain the oil out of my lawn mower.
__________________
" The market, like the Lord, helps those who help themselves. But, unlike the Lord, the market does not forgive those who know not what they do."- Warren Buffett

OBK #55

1998 Lincoln Continental - Sold
Max 1984 300TD 285,000 miles - Sold
The Dee8gonator 1987 560SEC 196,000 miles - Sold
Orgasmatron - 2006 CLS500 25,000 miles
2002 C320 Wagon 113,000 miles
Reply With Quote
  #13
Old 11-04-2009, 11:06 PM
DeliveryValve's Avatar
Chairman of my Benz

Join Date: Jun 2006
Location: Central California
Posts: 4,117
Quote:
Originally Posted by cdimatteo View Post
....as I stated I did NOT open the oil filler cap...do I need to do this, to provide maximum venting? Engine oil was very warm, engine run 5 minutes prior to extraction attempt. Any suggestions? Please help!
My Mityvac extractor does basically nothing while oil is cold. It almost does something while it is warm. The oil has to be hot for it to suck it in the tank. And when I mean hot, I mean driven for 20 minutes hot. Not idle for 20 minutes, but driven.

Removing the oil cap to vent will also help.




.
__________________
1983 123.133 California
- GreaseCar Veg System


Reply With Quote
  #14
Old 11-04-2009, 11:08 PM
DeliveryValve's Avatar
Chairman of my Benz

Join Date: Jun 2006
Location: Central California
Posts: 4,117
Quote:
Originally Posted by cdimatteo View Post
,,,,as long as you can instruct on how to do so WITHOUT raising the car or removing the bottom engine cover plate. That is the reason for using an
extractor....SILLY ME !

That is the reason why I use mine also. Bottom covers are a pain.


.
__________________
1983 123.133 California
- GreaseCar Veg System


Reply With Quote
