Old 10-05-2004, 09:46 PM
Registered User
Join Date: Aug 2004
Posts: 21
Unhappy Asr

On a 94 600 SL Ihave a actuator problem took the covers off and found the wiring had turned to dust. I cut open the rest of the loom and found it was all dust!!! My question has anybody tried to fix this, I cannot get the connector apart so I can make new wiring. Help George at Sandera's Auto Works
Reply With Quote
Old 10-05-2004, 11:50 PM
Posts: n/a

Your best bet is to replace the entire harness, have you priced them?
i replaced one a few months back, i don't remember but i don't think they were that expensive. you will save a lot of headache if you do. if you want send me you vin and i will see what connectors are available from mercedes. when the sell connectors they usuall come with about 20 feet of additional wire, more than enough to replace damaged areas. send me an email with the vin if you want and i will check. Ray
Reply With Quote
Old 10-08-2004, 11:50 AM
Registered User
Join Date: Aug 2004
Posts: 21
asr wiring

Hi and thanks for the reply,
The Vin#WDBFA76E3RF088893. Question the loom in question is the one that is part of the Actuator (sodered to a curcuit board inside) are we talking about the same wiring loom? If so that would be great, both sides have this problem but the passenger side still operates. Thanks for any help George
Reply With Quote
Old 10-08-2004, 07:25 PM
Registered User
Join Date: Jul 2000
Posts: 638
SL 600 wiring harnesses

I also am keenly interested in any solutions to this--have the same problem. ETA's are $2500+ EACH.
Reply With Quote
Old 10-08-2004, 09:13 PM
Posts: n/a

i will look for you, i think i may have an loom from an old actuator, can you send a picture of the end to my email?
Reply With Quote
Old 10-11-2004, 12:28 PM
Registered User
Join Date: Aug 2004
Posts: 21
asr connector

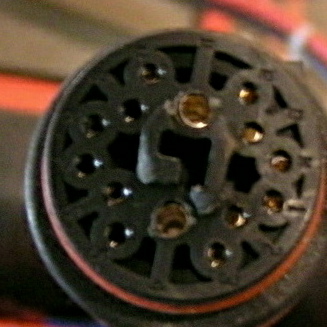

Thanks again for your time, here is a picture of the connector.
Attached Thumbnails
Asr-pict0649.jpg   Asr-pict0651.jpg
Reply With Quote
Old 10-14-2004, 09:51 AM
Registered User
Join Date: Aug 2004
Location: Newport News Virginia
Posts: 15

I am curious if this electrical breakdown will require a new or rebuilt actuator or could it be just the wiring. I have a new engine wiring harness, but now am being told I need to replace the throttle actuator. Also, the wiring attached to the O2 sensor has disintigrated. I have been told there several wiring harnesses in my vehicle. Are both the O2 sensor and throttle actuator on the same harness? If so, anyone know a part #?

I am basically looking to avoid replacing the throttle actuator.
Reply With Quote
Old 10-14-2004, 05:29 PM
Jim's500E's Avatar
Large Member
Join Date: Mar 2001
Location: Manchester, Connecticut
Posts: 1,325
Before changing out all sorts of $$junk...take a look at the wiring harness that goes to the Alt and the starter. They go bad to on W124s, especially at this age regardless of mileage. BTDT. Do that before the TBA.

1992 500E
2007 CLK63
2003 Audi RS6
2001 Audi allroad
Reply With Quote
