#1
|
|||
|
|||
400e wiring harness is done :(
well today i am driving and i notice 1) seat belt display wont stop flashing 2) the radio wont work (turns on and says E 2 then turns off) 3)Radio antenna wont go all the way down, or up for that matter 4)The doors dont lock together, each one has to be locked and unlocked seperately. That, along with the fluttering gas gauge leads me to beleive it is the wiring harness. How much do they cost and how hard is the installation? I guess i was due for a major problem with 214,000 on the clock
__________________
1993 400e Charlotte |
#2
|
||||
|
||||
I haven't replaced a wire harness yet in my car and I haven't done much research on the subject. I did find this for you in case you need it:
http://www.peachparts.com/Wikka/M104WireHarness Best of Luck
__________________
1989 300CE Astralsilber/Schwarz 1992 300CE Schwarz/Schwarz |
#3
|
||||
|
||||
The typical harness problem is with the engine wiring harness and the symptoms don't include what you mentioned. My wild guess is that you need a new overvoltage protection relay and/or a new voltage regulator.
Sixto 95 S420 87 300SDL |
#4
|
|||
|
|||
o yea i forgot the main reason i posted this. The car wont start. Wont turn over at all.
__________________
1993 400e Charlotte |
#5
|
||||
|
||||
If the voltage regulator's been dying for a while, the battery's probably discharged.
Assuming the alternator and voltage regulator are similar to the 80s set-up: - disconnect the battery - remove the 2 screws on the back side of the alternator - extract the voltage regulator - check the brushes of the voltage regulator - if a brush is not clean and shiny, it wasn't in good contact with the armature A voltage regulator is $25-50 depending on brand and source. I hope that's all it is. Sixto 95 S420 87 300SDL |
#6
|
||||
|
||||
Quote:
__________________
1989 300CE Astralsilber/Schwarz 1992 300CE Schwarz/Schwarz |
#7
|
||||
|
||||

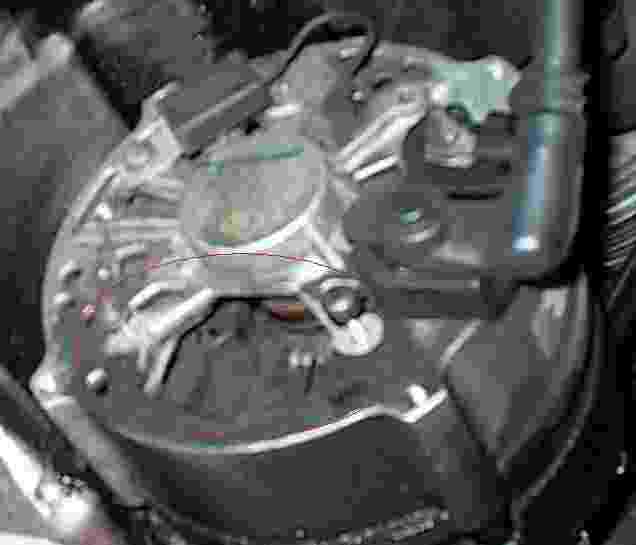

Sorry about the lousy picture. The voltage regulator goes in the spot marked with a red oval. Remove the 2 screws, pull out the regulator.
Should clarify - this picture is not of a 400E or M119. Sixto 95 S420 87 300SDL |
#8
|
|||
|
|||
the thing is the lights work when the key isnt even in the ignition. I dont see how they would if the battery was dead. Ill go check it out tho. Thanks for the feedback
__________________
1993 400e Charlotte |
#9
|
||||
|
||||
Try to start the engine with the lights on. If the lights dim, the battery doesn't have enough juice for the starter. If the lights don't dim, there's a problem between the key switch and the starter.
Sixto 95 S420 87 300SDL |
