  #16
Old 12-08-2004, 04:39 PM
TROVERMAN's Avatar
Registered User

Join Date: Oct 2003
Location: NH
Posts: 355
On your dash, use a flashlight (or not if the symbols are clearly legible) to light up the warning lights. On some cars, particulary earlier ones, I believe that there might have been a "Lambda Sensor" warning light. As to the reliability of these, I don't know. There shouldn't be anything to reset-just plug in (or rewire) the new sensor. The engine reads the correct inputs and adjusts the fueling system accordingly.

__________________
________________________
2002 Mercedes-Benz E320 4Matic
1995 Mercedes-Benz E320 Wagon
2005 Land Rover LR3 V8 SE
1999 Audi A8 4.2L quattro
Reply With Quote
  #17
Old 12-08-2004, 05:16 PM
Registered User

Join Date: Mar 2003
Location: Southern California
Posts: 2,272
Correct! The O2 sensor light illuminated on the dash of my erstwhile '84 190E at 30K miles. I asked the dealer how they reset the light. The answer was remove the bulb, which I did without replacing the sensor.

I sold it at 49K, and it passed its title transfer emission test - no problem.

Duke
Reply With Quote
  #18
Old 12-08-2004, 05:24 PM
Registered User

Join Date: Mar 2003
Location: Southern California
Posts: 2,272
[QUOTE=manny]A good O2 sensor can be observed by watching the " cross-counts ", i.e. how many times it switches from rich to lean, in a given time.
Duke 2.6 correctly pointed this out earlier.
As an O2 sensor ages, it will get " lazy ", i.e. instead of, say 10 cross-counts/second, it slows donw to, let's say 5 crosscounts.
This may not result in the illumination of the Check engine light, but can have an affect on emissions & fuel economy.
Bottom line..........it's up to you to decide. [/QUOTE

I believe ten "cross counts" is too fast. The typical "period", which would be two cross counts should be about one second. If it's slower than two seconds the sensor may be getting lazy.

The actual response time of the sensor is about a tenth of a second, but the system richens very slowly so it doens't get ahead of sensor response time.

This is my understanding based on reading about O2 sensors, but I'd welcome anyone's comments who has good info as I have found it difficult to find information on O2 sensor failure modes.

Slow response time is one and I also suspect that they may drift off calibration, but have not been able to confirm.

Duke
Reply With Quote
  #19
Old 12-08-2004, 05:36 PM
Registered User

Join Date: Aug 1999
Location: ajax, ontario, canada
Posts: 773
on my 190e2.6, the engine began sputtering for no apparent reason and at unpredictable times, when the weather was cold. This was so difficult to diagnose that I left the car at the MB service center. They were able to reproduce the problem, which they traced to a faulty/malfunctioning O2 sensor. This, without the "Check Engine" light coming on, and well below the 60k interval since the time it was last replaced.

Replacing the O2 sensor fixed the problem. The issue here is that the sputtering engine problem can be a safety issue, because it happens with no warning. It almost left me stranded in the middle of an intersection in the lane of oncoming traffic, as I was making a left turn. I had to nurse the car to a safer location until it recovered.

This sputtering engine problem happened again years and many kilometers later, again, without the "Check Engine" lamp coming on. I immediately asked my MB service advisor to have the O2 sensor replaced. They placed a note on the service sheet that it was done at the request of the customer.
Reply With Quote
  #20
Old 12-08-2004, 06:34 PM
Registered User

Join Date: Feb 2003
Location: Ontario, Canada
Posts: 3,160
Duke 2.6

In my " simplified " explanation earlier, I just tried to convey a message to " the people ", as to what can be expected from an O2 sensor.
Of course the cross-count timing is exaggerated, but the principle of " healthy " vs. " lazy " sensor activity should be understood.
Btw, the average DVOM is only averaging the voltage output readings from the sensor, so while it may show activity, it is not necessarily " real time " information.
__________________
2007 C 230 Sport.
Reply With Quote
  #21
Old 12-08-2004, 09:40 PM
Registered User

Join Date: Mar 2003
Location: Southern California
Posts: 2,272
Quote:
Originally Posted by manny
Duke 2.6


Btw, the average DVOM is only averaging the voltage output readings from the sensor, so while it may show activity, it is not necessarily " real time " information.
Good point. You need a scope to observe real time O2 sensor behavior. I don't have one, but I have a friend who does, and I'll borrow it to eavesdrop on my O2 sensor's behavior before I go in for my emission test that's due in a couple of months.

Duke
Reply With Quote
  #22
Old 12-09-2004, 11:32 AM
Senior Member

Join Date: Jun 2001
Location: Northern Calif. (Fairfield Area)
Posts: 2,225
Mike,
I'm assuming that when you say you are reading .2 O2, you are talking about voltage at sensor and not gas reading at tailpipe, because that is a perfect tailpipe reading. If you read a constant .2 volts in open loop, you need to replace the sensor. Don't worry you won't trigger any lights.

Peter
__________________
Auto Zentral Ltd.
Reply With Quote
  #23
Old 12-09-2004, 01:02 PM
myanoch's Avatar
Registered User

Join Date: Aug 2004
Location: Scranton Pa.
Posts: 239
I just put that as an example of a voltage
The question I had was really how do you Know the calibriation of the sensor
If in 1988 the .5 volt at a certain co
Today may be in 2004 .2 volt with that same sensor?????
So thats were I felt just starting with a new sensor would eleminate
any guess work of getting wrong reading to the injection system
I am just asking If this makes sense
The sensor is so old I can't get it loose anyway
I am going to hit It with the torch next
__________________
[B]Mike Y.
00 sl500 sport
88 560 sl (sold)
Reply With Quote
  #24
Old 12-09-2004, 02:53 PM
nglitz's Avatar
Registered User

Join Date: Aug 2004
Location: Hamilton Square NJ, near Trenton
Posts: 391
Quote:
Originally Posted by myanoch
Checked duty cycle on injection found it to be rich
Addjusted duty cycle at tower 3/8 turn lean to help condition
Car runs great....???
If the duty cycle wanders around a little at idle or "hunts" up & down once your O2 sensor is warmed up, it's working. No need to change & no improvement expected from a change. Take a break, have a beer instead.
__________________
Norm in NJ
Next oil change at 230,000miles
Reply With Quote
  #25
Old 12-09-2004, 03:24 PM
myanoch's Avatar
Registered User

Join Date: Aug 2004
Location: Scranton Pa.
Posts: 239
I appreciate all the help from everyone
I feal better now understanding how it works
I like your idea on the beer can't go wrong with that move.
This sight has a great bunch of people
cheers!!!
Mike
Attached Thumbnails
o2 sensor-see-speed-sound.jpg
__________________
[B]Mike Y.
00 sl500 sport
88 560 sl (sold)
Reply With Quote
  #26
Old 12-09-2004, 08:56 PM
Senior Member

Join Date: Jun 2001
Location: Northern Calif. (Fairfield Area)
Posts: 2,225
Mike,
It doesn't matter how old the sensor is. It should always be around .5 volts in either open or closed loop. The only difference being that in closed loop it should sweep back and forth. It would take awhile to explain how the system works, which is why I suggest you do an archive search. There is enough info there to keep you up all night. Or is that nite?

Peter
__________________
Auto Zentral Ltd.
Reply With Quote
  #27
Old 12-11-2004, 04:43 PM
myanoch's Avatar
Registered User

Join Date: Aug 2004
Location: Scranton Pa.
Posts: 239
I finaly got some time to check the voltage at the o2 sensor
disconneced it and took some readings
Voltage was at .2 vdc and some times lower under .1vdc
if I raced the engine nit went up once in a while to .8vdc
But not all the time especially after running for a while
Seems like when it got hot it stayed at low voltage

Injection check

I also checked voltage at termanal x11 terminal 2 & 3
getting .6 v at idle
But racing engine I was getting 12.5 vdc
What gives???
__________________
[B]Mike Y.
00 sl500 sport
88 560 sl (sold)
Reply With Quote
  #28
Old 12-11-2004, 04:48 PM
Registered User

Join Date: Feb 2003
Location: Ontario, Canada
Posts: 3,160
Sounds like IF you have a 3-wire sensor, the heating element is gone ( the 12 volt side ).
On the old, single wire sensors, you had to rev the bejeepers out of the engine to heat it up.
O2 sensors start putting out a valid signal at @ 600 degrees.
Many engines will idle at about 450 - 500 deg.
__________________
2007 C 230 Sport.
Reply With Quote
  #29
Old 12-11-2004, 05:11 PM
myanoch's Avatar
Registered User

Join Date: Aug 2004
Location: Scranton Pa.
Posts: 239
Thanks for the help
I will try to get it out .

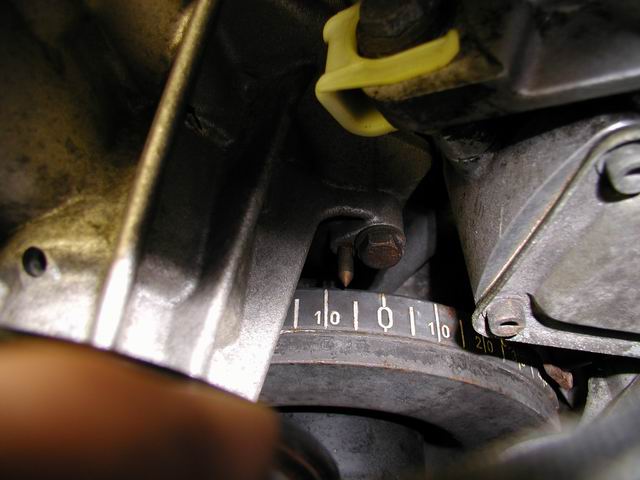

One other question I have about cam timming
I check stretch today
Drivers side looks good but Pass side showing 7 degree at the crankshaft to get the marks to line up
Is that normal to have the driver side right on and the other cam out that much
Should not the driver side be out say 2 degrees fom stretch
Or is the cam just out and do they have an offset key for the cam???
or do I need a chain
I Know the guides are due at 78,000
Any help is appreciated
Attached Thumbnails
o2 sensor-resize-560-sl-139.jpg   o2 sensor-resize-560-sl-147.jpg
__________________
[B]Mike Y.
00 sl500 sport
88 560 sl (sold)

Last edited by myanoch; 12-11-2004 at 05:44 PM.
Reply With Quote
  #30
Old 12-15-2004, 11:45 AM
Benster Tom
Guest

Posts: n/a
This may sound dumb, but what is the O2 sensor and what is it's purpose. If it fails what happens? What if the O2 sensor cable is pinched into, will the car start? Does anyone have a picture of the sensor and cable? Where is it located?
