Question How to remove fuel pressure regulator frm 98 S420

Hi,
Help please. I am trying to replace the fuel pressure regulator in my 98 S420. I removed the hose attached to it. How do I get it off, I tried to pry it off but no luck. Please help. Thanks
smk_texas

Reply With Quote
  #2
Old 10-28-2005, 03:30 PM
Moderator

Join Date: Mar 1999
Location: Tucker, Ga USA
Posts: 12,153
You need a pair of internal snap-ring pliers.
__________________
MERCEDES Benz Master Guild Technician (6 TIMES)
ASE Master Technician
Mercedes Benz Star Technician (2 times)
44 years foreign automotive repair
27 Years M.B. Shop foreman (dealer)
MB technical information Specialist (15 years)
190E 2.3 16V ITS SCCA race car (sold)
1986 190E 2.3 16V 2.5 (sold)
Retired Moderator
Reply With Quote
  #3
Old 10-28-2005, 11:53 PM
Registered User

Join Date: Feb 2001
Location: Colleyville, TX
Posts: 232
Thanks very much MBDOC. I bought one from O'Reillys for about $12.00 here locally. I was able to pull that snap ring out and it didn't take more than 5 minutes after that. The neat thing was that the new fuel pressure regulator resolved the hard starting problem I had. Thanks again.

smk_texas
Reply With Quote
  #4
Old 01-26-2008, 11:18 PM
Registered User

Join Date: Jan 2008
Posts: 3
1995 S420 Starting and Stalling Problem

My wife’s S420 has 112K miles and developed a problem a few weeks ago. When the car was cold it started easily, and she could drive it without any problems. But when she stopped and turned the engine off for a few minutes, and the engine was still warm, it would start with hesitation then immediately stall when put into gear. After starting and stalling a few times, it would not start at all until the engine cooled down for a half-hour or so.

In trying to diagnose the problem I noticed that there was a lot of pressure built up in the fuel tank and there was a loud “whoosh” when I removed the gas cap. With that as a clue, I started searching for these symptoms and found some links on the mercedesshop forums:

98 S420 (W140) Hard starting

http://www.peachparts.com/shopforum/tech-help/135594-how-remove-fuel-pressure-regulator-frm-98-s420-post997557.html?highlight=s420+fuel+pressure#post997557

According to these postings, the Fuel Pressure Regulator was the suspected cause of the problem. I found a drawing of the assembly and I am including it as an attachment to this message.

I purchased a replacement part online

To replace the regulator I removed the right-side air filter assembly. I don’t know if it matters but I also removed the gas cap to release the air pressure in the fuel tank.

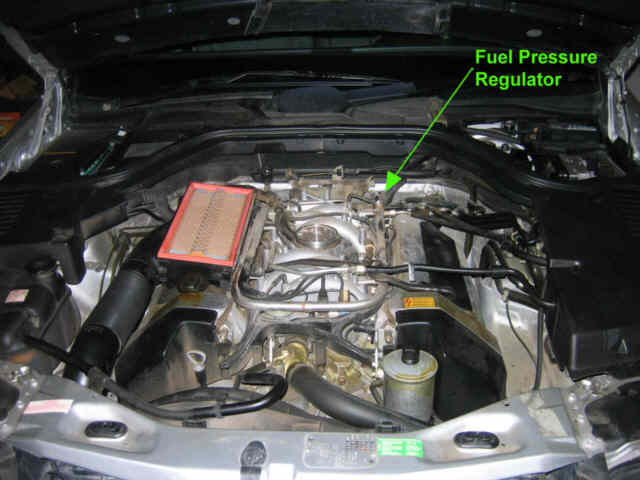

Facing the front of the car, the Fuel Pressure Regulator is located at the right rear of the engine compartment. I removed the rubber hose. Then I used snap-ring pliers and a metal pick to remove the circle clip. I had to use regular pliers to ease the old regulator out.

I cleaned the surfaces with a Q-tip, then inserted the new regulator. I had trouble seating the new regulator into the housing so I gently applied pressure with a C-clamp, cushioning the C-clamp where it touched the regulator with a rubber washer. Then I replaced the circle clip using the snap-ring pliers. I reconnected the rubber hose.

Before replacing the air filter assembly I started the engine and checked for fuel leaks or other problems. Everything looked OK so I let it run for 20 minutes until it was warm. I turned the engine off and let it sit for 10 minutes and then restarted it. There was a slight hesitation but it did not stall when I put it in gear. I replaced the air filter assembly and cleaned up.

Later I drove the car on several short errands and it never stalled or hesitated when restarting. My wife has also driven it without any problems. It seems like the problem has been resolved.

Thanks to smk_texas, JimF, A. Rosich, and M.B.DOC for their prior postings on this problem.

Attached are photos showing the location of the Fuel Pressure Regulator and the tools used to replace it.
Attached Thumbnails
How to remove fuel pressure regulator frm 98 S420-1995s420fuelpressureregulator.gif   How to remove fuel pressure regulator frm 98 S420-engine.jpg   How to remove fuel pressure regulator frm 98 S420-fuelpressureregulator.jpg   How to remove fuel pressure regulator frm 98 S420-tools.jpg   How to remove fuel pressure regulator frm 98 S420-clamp.jpg


Last edited by mbdoc; 02-02-2011 at 05:19 PM. Reason: web site
Reply With Quote
  #5
Old 01-26-2008, 11:35 PM
Registered User

Join Date: Aug 2003
Location: Phoenix
Posts: 3,726
Very nice first post. We're now going to expect them to all be this good.
Reply With Quote
  #6
Old 01-27-2008, 02:19 AM
Registered User

Join Date: May 2007
Location: Arizona
Posts: 757
Thanks for the post. I'm still on my original fuel pressure regulator, but I think I may change it, just for preventative maintenance. Looks like a straight-forward job.
__________________
1993 400E, 256,000 miles (totaled)
1994 E420, 200,000+ miles
1995 E420, 201,000 miles
Reply With Quote
  #7
Old 01-27-2008, 12:26 PM
JimF's Avatar
'94 S500: only 793 sold!

Join Date: Mar 2001
Location: San Diego, CA
Posts: 1,933
Quote:
Originally Posted by fjg281 View Post
According to these postings, the Fuel Pressure Regulator was the suspected cause of the problem. I found a drawing of the assembly and I am including it as an attachment to this message.

Thanks to smk_texas, JimF, A. Rosich, and M.B.DOC for their prior postings on this problem.
Tnx for the nice writup and pics . . s/b a sticky??
__________________
Regards . . . . JimF
-------------------
'94 S500 Cpe

Visit my Mercedes Web Page
Reply With Quote
  #8
Old 02-02-2011, 02:09 AM
Registered User

Join Date: Dec 2002
Location: Southern California
Posts: 62
Was there any residual pressure to worry about when replacing the regulator? Do I have to bleed off? Does it just pop straight up? Thanks in advanced!
__________________
1996 E320- 18" Chrome AMG, Bling Bling Mirrors
Reply With Quote
  #9
Old 02-02-2011, 03:12 PM
Registered User

Join Date: Feb 2001
Location: Colleyville, TX
Posts: 232
Hello Gmcosta,

There was very little residual pressure. I loosened the gas cap before I changed the FPR. You will see some gas (very little) spill over when you unplug the hose from the FPR. Just spread a rag or something around the FPR. Should take no more than 15 minutes to change it out. Thanks

smk_texas
03 ML500 86k
98 S420 86k
95 e300d 320k
Reply With Quote
  #10
Old 02-04-2011, 01:58 AM
Registered User

Join Date: Dec 2002
Location: Southern California
Posts: 62
Well I did replace the FPR, it was quite easy. The hard part was trying to take off the clip ring. After replacing the FPR I was hoping to get rid of the hesistation/ hiccup when accelerating but unfortunately it was still there. Oh well, at least I learned something new today. Thanks again to all here sharing information.
