Ok, in a previus thread I was seeking help in diagnosing an issue. It was said that my motor mounts are the problem. I have a 1993 190E with the 2.3 engine. One of the mounts on the drivers side of the car and close to the front.. located in front of the air filter housing is not connected at the top. It's just laying against the motor. How do I fix this? Is there a repair manual that I can buy so I can find out exactly where the rest of the mounts are located and what they need to be connected to? I really feel like the mechaninc mentioned in the previus thread let the motor mount loose on purpose to get me to come back, so I'd rather try to do this myself.

Old Thread

There is no motor mount in the location you are describing. You must be referring to something else. On the driver's side, the motor mount is mounted wayyyy down under the intake manifold, difficult to even see without removing at least the air cleaner. On the passenger side it is easy to see. Are you perhaps describing the air cleaner housing mounts?

Steve

__________________
'91 MB 190E 2.3
'08 RAV4 Ltd 3.5
'83 Lazy Daze m'home 5.7

Ghosted

Are you sure it is a motor mount? Maybe a pciture?

Haasman

__________________
'03 E320 Wagon-Sold
'95 E320 Wagon-Went to Ex
'93 190E 2.6-Wrecked
'91 300E-Went to Ex
'65 911 Coupe (#302580)

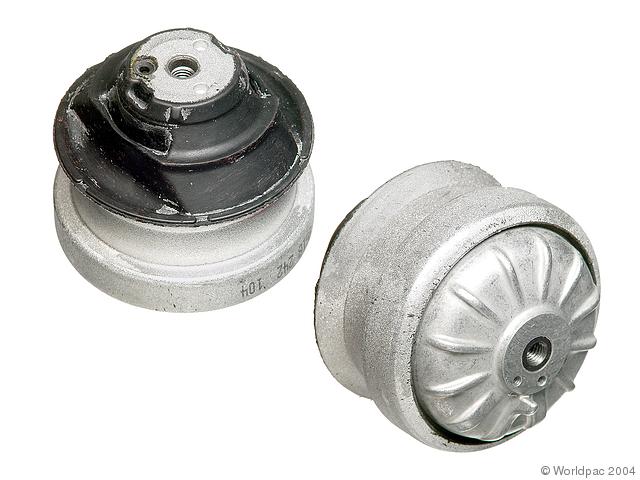

Yeah that doesn't sound like a motor mount. A motor mount is round and about 4 to 5 inches in diameter and about 5 inches from top to bottom with a steel bottom and a thick rubber top. There are two of them, one on the driverside and one on the passenger side underneath the engine. Here is a pic from fastlane.

Attached Thumbnails



Nope, that's not it. Must be the air cleaner housing mounts. It looks like a little shock with a lug on the end of it. I have pictures and will upload them tonight.

I don't understand why when I come to a stop or am sometimes just idling the car will start missing/shaking and or die. Could this be the motor mounts indeed? It has all new plugs, plug wires, and a new ignition coil. I need help here.

<>

Shaking could be MM
Missing and dieing is not MM....

Thanks. I think maybe I am having an issue with the ICV or possible the IAC from reading older posts. SBourg seems to be an expert on the issue, maybe I can get him to reply here.
