Where is the Charcoal canister shut-off valve located on a 1999 C230

I'm trying to solve a CEL problem (code P0455) on my 1999 C230-Kompressor. I've already replaced the gas cap so I'm on to the next likely culprit, the "Charcoal canister shut-off valve" but it isn't where I thought it would be.

Does anyone know where to find it? I took some pictures of where I expected to find it. They're from the rear, passenger-side wheel well with the liner removed. Thanks,

Don
Attached Thumbnails
Where is the Charcoal canister shut-off valve located on a 1999 C230-img_0905a.jpg   Where is the Charcoal canister shut-off valve located on a 1999 C230-img_0907a.jpg   Where is the Charcoal canister shut-off valve located on a 1999 C230-img_0912a.jpg
__________________
2008 ML350
2007 Honda Element
2007 Honda Accord
2009 Honda Civic

Last edited by DonB; 06-04-2006 at 09:35 PM.
Reply With Quote
  #2
Old 06-04-2006, 10:02 PM
carson356
Guest

Posts: n/a
[QUOTE=DonB]I'm trying to solve a CEL problem (code P0455) on my 1999 C230-Kompressor. I've already replaced the gas cap so I'm on to the next likely culprit, the "Charcoal canister shut-off valve" but it isn't where I thought it would be.

Does anyone know where to find it? I took some pictures of where I expected to find it. They're from the rear, passenger-side wheel well with the liner removed. Thanks,

Don[/QUOTE
have you checked the regeneration valve? i have seen a few of them not cycle propery not allowing enough vacuum go to the tank and set that code.
on the 202 chassis the the canister shutoff valve is the white canister next to the charcoal canister, which on this model is down by the fuel pump and filter

Last edited by carson356; 06-04-2006 at 10:14 PM.
Reply With Quote
  #3
Old 06-05-2006, 09:14 AM
Registered User

Join Date: Sep 2003
Location: France
Posts: 485
Is it possible that a bad charcoal canister can create stalling?
__________________
Keep us posted especially if your problem is solved
Present cars:
My car: E-class 420CDI, 2008, W211, V8,[/B] 50 000km

Wife's one: C-class 220CDI Sport Coupé, Euro, 2002, W203. 245000km

Son's one: GLK class 220CDI, 2009, W204

Sold E class 260E, W124, 1988 beloved car sold after 489 000 kilometres of reliable services (engine M103, clutch and 5 speed manual gear box all original).
E-class, W210 320CDI, 2000[/B], 225 000km, Sold
Reply With Quote
  #4
Old 06-06-2006, 09:45 PM
Registered User

Join Date: Oct 2005
Posts: 123
Thanks Carson, I'll look for it this weekend. On your suggestion about the regeneration valve; is that the same as the Purge control valve? If so, then yes, I was considering it, but I was going by this post from Gilly:

HELP! 1997 E-420 P0455 EVAP Leak

Excerpt
"I'd say if you want to "throw a part" at the problem, with about 75% probability the shut-off valve is the problem."

I don't have the test tools he mentioned, so I was going to try his advice. What do you think?

Don
__________________
2008 ML350
2007 Honda Element
2007 Honda Accord
2009 Honda Civic
Reply With Quote
  #5
Old 06-08-2006, 03:37 AM
carson356
Guest

Posts: n/a
Quote:
Originally Posted by DonB
Thanks Carson, I'll look for it this weekend. On your suggestion about the regeneration valve; is that the same as the Purge control valve? If so, then yes, I was considering it, but I was going by this post from Gilly:

HELP! 1997 E-420 P0455 EVAP Leak

Excerpt
"I'd say if you want to "throw a part" at the problem, with about 75% probability the shut-off valve is the problem."

I don't have the test tools he mentioned, so I was going to try his advice. What do you think?

Don
what you could do is remove the shutoff valve and supply voltage to it and blow in to the end or draw vacuum and see if it holds.
Reply With Quote
  #6
Old 06-11-2006, 01:09 PM
Registered User

Join Date: Oct 2005
Posts: 123

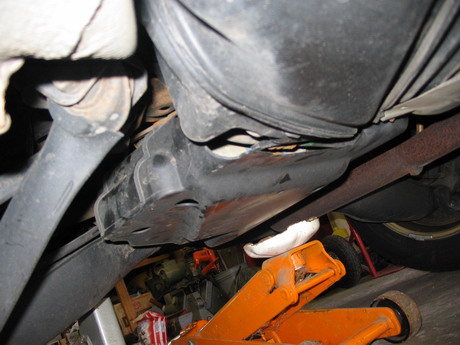

Wow, I'm beginning to think the car doesn't have a "Charcoal canister shut-off valve". I looked all over, but haven't found it. Here are pictures of the fuel pump and filter, but no valve that I can see. Where else should I look? Thanks,

Don
Attached Thumbnails
Where is the Charcoal canister shut-off valve located on a 1999 C230-img_0959_resize.jpg   Where is the Charcoal canister shut-off valve located on a 1999 C230-img_0963_resize.jpg   Where is the Charcoal canister shut-off valve located on a 1999 C230-img_0965_resize.jpg   Where is the Charcoal canister shut-off valve located on a 1999 C230-img_0967_resize.jpg
__________________
2008 ML350
2007 Honda Element
2007 Honda Accord
2009 Honda Civic
Reply With Quote
  #7
Old 06-12-2006, 03:40 AM
carson356
Guest

Posts: n/a
Quote:
Originally Posted by DonB
Wow, I'm beginning to think the car doesn't have a "Charcoal canister shut-off valve". I looked all over, but haven't found it. Here are pictures of the fuel pump and filter, but no valve that I can see. Where else should I look? Thanks,

Don
here is a picture, if it is there, it is further forward, the white unit the line is touching, you will need to remove the entire cover.

Reply With Quote
  #8
Old 06-13-2006, 10:08 PM
Registered User

Join Date: Oct 2005
Posts: 123
Thanks Carson, I guess I'll have to look again. I got this drawing from the dealer. It looks similar to your picture. I'll take another look this weekend.
Thanks again,

Don
Attached Thumbnails
Where is the Charcoal canister shut-off valve located on a 1999 C230-jun13-01a.jpg
__________________
2008 ML350
2007 Honda Element
2007 Honda Accord
2009 Honda Civic
Reply With Quote
  #9
Old 06-14-2006, 03:29 PM
Tuultyme

Join Date: Oct 2005
Location: Gurnee, IL
Posts: 13
I also am getting the P0455 code, so I need to check the gas cap and the Charcoal canister shut-off valve. But where do I look for the regeneration valve/Purge Control Valve on a 2000 C230K? How is this checked?
__________________
Bruce
2000 C230K
1970 280SL
Reply With Quote
  #10
Old 06-15-2006, 10:26 PM
Tuultyme

Join Date: Oct 2005
Location: Gurnee, IL
Posts: 13
My low fuel light flashers after I have taken my ten mile trip to work. And now my CEL is on with the P0455 code. I ordered a new fuel cap from Phill today. He suggested the regeneration valve; $63.00 would be next to check. He said he has sold some of these over the years. As for the Charcoal canister shut-off valve; $150.00 he has not sold any of these for the C230. So where is the regeneration valve and how do you check it?
__________________
Bruce
2000 C230K
1970 280SL
Reply With Quote
  #11
Old 06-15-2006, 11:57 PM
carson356
Guest

Posts: n/a
Quote:
Originally Posted by tuultyme
My low fuel light flashers after I have taken my ten mile trip to work. And now my CEL is on with the P0455 code. I ordered a new fuel cap from Phill today. He suggested the regeneration valve; $63.00 would be next to check. He said he has sold some of these over the years. As for the Charcoal canister shut-off valve; $150.00 he has not sold any of these for the C230. So where is the regeneration valve and how do you check it?
Reply With Quote
  #12
Old 06-16-2006, 08:47 AM
blackmercedes's Avatar
Just a guy

Join Date: Dec 2000
Location: St. Albert, Alberta, Canada
Posts: 3,432
Purge control valve (under hood as in the pic) make a "tick-tick" noise when it's working properly. Warm the car, stop, pop the hood and listen for the noise and feel the valve as well as it can be felt working. I replaced my own this spring to clear the code, worked like a charm. My mechanic said that the shut-off valve is RARELY at fault.

As for diagnosis, he was able to use the SDS to determine which compenent was faulty. I presume there is some sort of emissions adaptation values or other way, but I didn't get specific with him.
__________________
John Shellenberg
1998 C230 "Black Betty" 240K

Reply With Quote
  #13
Old 06-24-2006, 03:33 PM
Registered User

Join Date: Oct 2005
Posts: 123
OK, somebody stole my shutoff valve! All the drawings say it should be there, but it's not. Maybe a there was model change? If I do have one, it must be somewhere else (see pictures). From all the comments, it sounds like I should try the other valve, so I'll let you know how it worked out. Thanks everyone for all the help.

Don
Attached Thumbnails
Where is the Charcoal canister shut-off valve located on a 1999 C230-img_1024_resize.jpg   Where is the Charcoal canister shut-off valve located on a 1999 C230-img_1013_resize.jpg   Where is the Charcoal canister shut-off valve located on a 1999 C230-img_1025_resize.jpg   Where is the Charcoal canister shut-off valve located on a 1999 C230-img_1015_resize.jpg
__________________
2008 ML350
2007 Honda Element
2007 Honda Accord
2009 Honda Civic

Last edited by DonB; 06-24-2006 at 03:41 PM.
Reply With Quote
  #14
Old 06-24-2006, 03:48 PM
Master Guild Tech

Join Date: Feb 2006
Location: cleveland,ohio
Posts: 39
Starfinder is wrong on this one- the shutoff valve (and canister) is on the LR side- behind the fender liner. I've never seen one by the fuel pumps.

To help everyone- if the regeneration/purge valve is clicking after running a few minutes- pull the canister side hose off- the valve should be applying vacuum to the canister- if it is, it's probably OK. The shutoff valves are very common- easiest way to check is to plug it off and see if the system holds vacuum then- thats what the car does when it runs the test- actually you could get the car to run the test for you- must have between 1/4 and 3/4 a tank of fuel and let the car run an OBD2 drive cycle- if the code doesn't come back, the leak is gone.
Reply With Quote
  #15
Old 06-24-2006, 11:29 PM
Registered User

Join Date: Oct 2005
Posts: 123
OK, I've replaced the purge control valve and cleared the code. If the CEL is going to turn on, it will be a couple of days.
