Fuse box

Hey would anybody have the list of whats in the fuze boxes?

I have the one in the engine but not the in the trunk and some things are blown and I have no idea what they go to.

thanks

Mike
Reply With Quote
  #2
Old 07-19-2006, 10:06 PM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,343
More data needed

What year, make, model...
Reply With Quote
  #3
Old 07-19-2006, 11:26 PM
86560SEL's Avatar
Registered User

Join Date: Jan 2003
Location: east Tennessee (southeast USA)
Posts: 3,002
True. Also, I have never even heard of a fuse box in the trunk before. Except maybe a VW (or any other car) that has a rear engine.
Reply With Quote
  #4
Old 07-20-2006, 10:09 PM
Registered User

Join Date: Jul 2006
Posts: 12
oh **** my bad

its a 1997 Mercedes C200 "classic"

yeah theres a fuze box in the trunk, engine, and a module box which has fuzes

thanks guys
Reply With Quote
  #5
Old 07-21-2006, 07:06 PM
Member

Join Date: Jan 2003
Location: Florida
Posts: 1,084
Trunk fuses

In the 140 500S-SEL body there are fuses in both the trunk, and under the hood.
In the 210 body 320E, there are fuses under the rear seat, and there are fuses for the lights to the left of the light switch under a panel.
In the 126 cars SEL-SL-SEL they are in the passenger footwell,
Reply With Quote
  #6
Old 07-22-2006, 11:33 AM
Registered User

Join Date: Mar 2006
Location: Scotland
Posts: 143
Fuses.

Your car is a W202 C- Class and has the main fusebox in the engine compartment, this is the fuse designation card;
http://i115.photobucket.com/albums/n292/geordieshand/2006-07-22FuseBox.jpg
You also have fuses on top of the OVP relay in the ecu compartment at the other side of the engine bay.
The secondary fuse box is under the trunk floor and contains the fuses for the windows etc.. Also under the trunk floor is the fuelpump relay (green) which has a fuse on top.
There may be other fuses I have not listed depending on the equipment fitted to your car.
Hope this helps, Geo.

Last edited by shandy; 07-22-2006 at 11:43 AM.
Reply With Quote
  #7
Old 07-29-2006, 03:53 PM
Registered User

Join Date: Jul 2006
Posts: 12
yeah this defintly helps, now as far as the fuze box in the rear, you said windows ect.... what else is there? you got a pic of the rear fuze list?

hey I appreciate it.
Reply With Quote
  #8
Old 07-29-2006, 05:09 PM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,343
Fuse list

Quote:
Originally Posted by shandy
Your car is a W202 C- Class and has the main fusebox in the engine compartment, this is the fuse designation card;
http://i115.photobucket.com/albums/n292/geordieshand/2006-07-22FuseBox.jpg
You also have fuses on top of the OVP relay in the ecu compartment at the other side of the engine bay.
The secondary fuse box is under the trunk floor and contains the fuses for the windows etc.. Also under the trunk floor is the fuelpump relay (green) which has a fuse on top.
There may be other fuses I have not listed depending on the equipment fitted to your car.
Hope this helps, Geo.
Edited to fit this website.
Attached Thumbnails

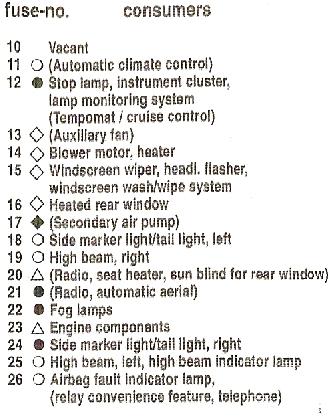

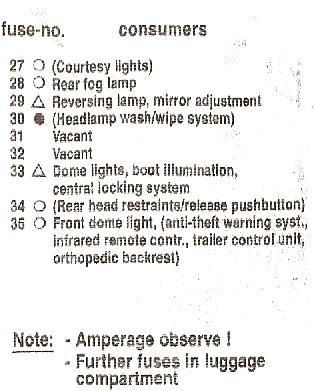

Fuse box-fuse_list_1.jpg   Fuse box-fuse_list_2.jpg   Fuse box-fuse_list_3.jpg
Reply With Quote
  #9
Old 07-29-2006, 06:36 PM
Registered User

Join Date: Mar 2006
Location: Scotland
Posts: 143
Quote:
Originally Posted by michael4589
yeah this defintly helps, now as far as the fuze box in the rear, you said windows ect.... what else is there? you got a pic of the rear fuze list?

hey I appreciate it.
Sorry, no list, it's different for each application depending on specification but it should be printed on the inside of the cover.
Reply With Quote
  #10
Old 07-30-2006, 01:23 PM
Registered User

Join Date: Jul 2006
Posts: 12
I know man, thats why I came on the forum.... there is no fuze list, if there was one I would have never have asked.

thanks
Reply With Quote
  #11
Old 07-30-2006, 07:41 PM
Registered User

Join Date: Mar 2006
Location: Scotland
Posts: 143
I'll have a look at mine tomorrow and give you a list of the fuses in mine, will get back to you.
Geo.
Reply With Quote
  #12
Old 07-30-2006, 11:04 PM
Registered User

Join Date: Jul 2006
Posts: 12
thanks man
Reply With Quote
  #13
Old 08-01-2006, 08:38 AM
Registered User

Join Date: Mar 2006
Location: Scotland
Posts: 143

Here you are, sorry it took so long I had to wait for my daughter to appear to put it up for me, doh!. Hope it helps.
Geo.
Reply With Quote
  #14
Old 08-01-2006, 08:43 AM
Registered User

Join Date: Mar 2006
Location: Scotland
Posts: 143
Oops it's kind of big ,maybe some kind admin. could resize it.
Reply With Quote
  #15
Old 08-01-2006, 09:45 AM
Registered User

Join Date: Jul 2006
Posts: 12
thanks man, just what I was looking for
