1992 400se Wires Help

Hello

I Noticed Today That Behind The Dashboared ,there Is A Little Black Box In My 1992 Mercedes Benz 400se, This Box Will Peep When You Put The Key In The Ignition ,or If You Leave The Key In ,or Lights On ,ect ,there Is 7 Wires Are Not Hooked Up To It ,i Have Numbers On The Box ,but There Is Not Numbers On The Wires ,only Colors ,please I Need Some Help To Hook Them Up To The Box ,thank You .

Reply With Quote
  #2
Old 01-24-2007, 01:42 PM
Registered User

Join Date: Aug 2006
Posts: 141
Wires

I suspect you are looking at an aftermarket device since a factory device would have a made to fit connector.
By connecting this device you may create problems such as No start,horns or sirens or lock out.
Is there a part number on the black box?
Mike
Reply With Quote
  #3
Old 01-24-2007, 01:47 PM
milad
Guest

Posts: n/a
there is more than one number on the part
5 sa005035-01

0125456832
Reply With Quote
  #4
Old 01-24-2007, 05:45 PM
milad
Guest

Posts: n/a
any clue guys?
Reply With Quote
  #5
Old 01-24-2007, 08:12 PM
Registered User

Join Date: Jan 2002
Location: NY
Posts: 500
This is Seat Belt/Keys/Lights Warning Module N2/4
1 - Brown/Green
2 - Pink/Blue
3 - Grey/Purple (2 wires)
4 - empty
5 - Brown/Grey
6 - Black/Red/Purple
7 - Brown/Blue
8 - Brown
Reply With Quote
  #6
Old 01-24-2007, 08:30 PM
milad
Guest

Posts: n/a
thank you much ,i am ganna go and try that now
Reply With Quote
  #7
Old 01-24-2007, 10:52 PM
milad
Guest

Posts: n/a
thanks ,it worked, like seat belt,lights worked ,but i have a problem now ,my radio is not working ,it wont turn on ,and also when i open the driver door ,the light wont come one ,but if i open other doors ,the light will go on ,also i noticed one of the fuses was burned ,i changed it ,this is when the seat belt and other lights came on ,thanks for the help ,but if you could please find out why the radio ,and the light not working ,thanks again
Reply With Quote
  #8
Old 01-24-2007, 11:31 PM
Registered User

Join Date: Jan 2002
Location: NY
Posts: 500
Well, it was disconnected for a reason I believe. Check fuses 9, 22, and 24. All these fuses are in the different circuits for module N2/4
Reply With Quote
  #9
Old 01-24-2007, 11:42 PM
86560SEL's Avatar
Registered User

Join Date: Jan 2003
Location: east Tennessee (southeast USA)
Posts: 3,015
Can you provide "photos" of this little "box" and its wiring?
Reply With Quote
  #10
Old 01-25-2007, 09:08 AM
milad
Guest

Posts: n/a
the box was not disconnected befor ,i did that by mistake ,and i could not fiquer it out ,radio does not work now ,when i open driver's door the inside light wont go on ,but if i open any other doors it will ,warning lights in dash are working ,fues # 24 was burned ,i changed it ,all other fuses are looking good

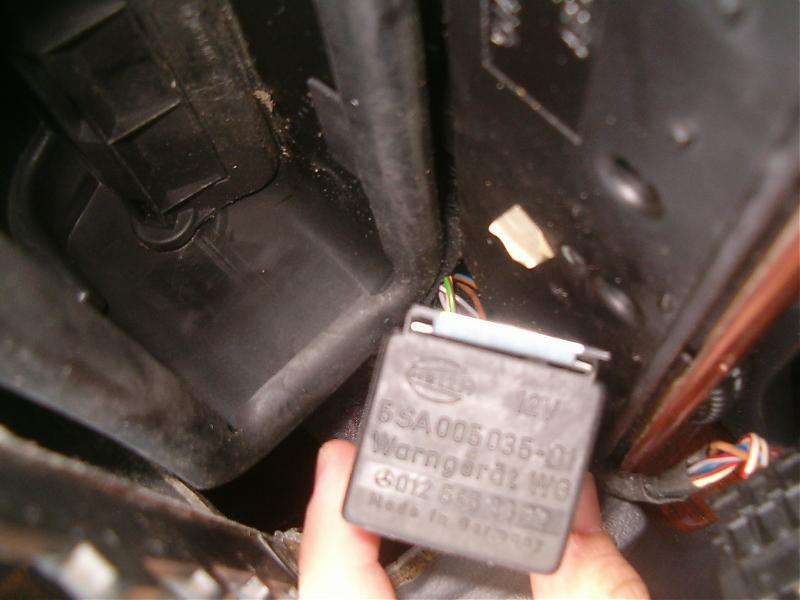

here is some pictures of the box ,i am hoping to get some help ,thanks guys
Attached Thumbnails
1992 400se Wires Help-hpim0750.jpg   1992 400se Wires Help-hpim0751.jpg
Reply With Quote
  #11
Old 01-26-2007, 08:31 AM
milad
Guest

Posts: n/a
help help please
Reply With Quote
  #12
Old 01-29-2007, 10:40 PM
milad
Guest

Posts: n/a
still waiting for help please
Reply With Quote
  #13
Old 02-01-2007, 07:37 AM
milad
Guest

Posts: n/a
ANY HELP GUYS ,PLEASE
Reply With Quote
  #14
Old 02-04-2007, 11:23 PM
milad
Guest

Posts: n/a
I Have Checked All The Fuses ,both Boxes ,they Are Good ,wires Looks Good ,but It Seems There Is No Power Going To The Radio At All ,i Checked The Fuses For The Radio And The Amp ,if I Leave The Key In Ignition ,the Device Don't Peep,when I Open Driver's Door ,the Light Don't Turn On ,but If I Open Any Other Door ,the Light Will Go On ,if I Leave The Head Lights On And Take The Key Out ,the Device Don't Peep Either ,it Seems Like One Related Problem For All Of Them ,not Sure What It Is , I Really Need Some Help With That ,thank You All .
Reply With Quote
  #15
Old 05-27-2008, 06:43 PM
Registered User

Join Date: May 2008
Posts: 11
400Se CLASS PROBLEM

AS you see below ,and what Mike Freeman said , i have a problem now with the horn ,right brake light is not working , oil pressure reader is not working, and heat /ac not working also ,again this is what mike said ((I suspect you are looking at an aftermarket device since a factory device would have a made to fit connector.
By connecting this device you may create problems such as No start,horns or sirens or lock out.
Is there a part number on the black box?

i think i made this problem ,now what is going on? any one knows ,thanks .

Reply With Quote
