Need help to identify this part

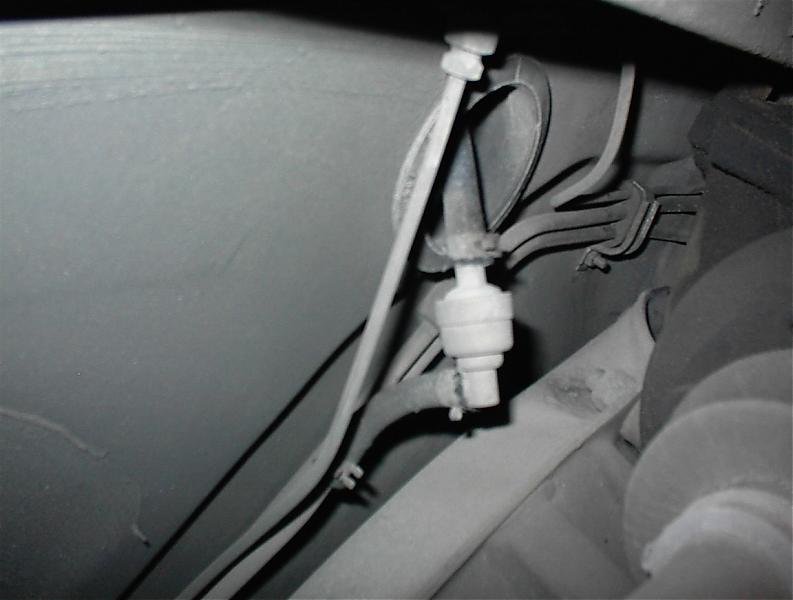

Spending another weekend trying to track down my hard hot start problem on my 1984 500SEC. Ready to install new injectors, seats and seals. Found what appears to be a weeping fuel hose directly above the rear axle and below the fuel tank. Small hose weeping is about three inches long.
Anyone know what kind of fuel line this is? Under pressure or return?

And what is the part that appears to be a filter or damper attached to the line? Thanks in advance. Dan

Attached Thumbnails
Need help to identify this part-500sec-007.jpg
__________________


Selling used Mercedes parts on Ebay...always changing...
cdplayer51 take a look!
____________
Reply With Quote
  #2
Old 07-14-2007, 03:58 PM
zcc's Avatar
zcc zcc is offline
Registered User

Join Date: Nov 2005
Location: Kuwait
Posts: 610
I guess it's a hydraulic oil valve (but not sure). Do you have a self-leveling rear suspensions or ADS?
__________________
Master Computer Engineer, A+, Network+, MCP/MCSA/MCSE 4/2k/2k3 - Messaging, MCTS, MCITP, MCT, Brainbench, ICDL and starting Ph.D

380SE 1984 <------- Totaled by flipping accident
300SE 1988 <------- Sold
Volvo S70 2000 <---- 4 family
Opel Omega 2002 <-- 4 family
560SEC 1989 <------ Sold
560SEL 1990 <------ Sold
560SEL 1991 <------ 4 my mother
560SEL 1989 <------ Sold
600SEL 1992 <------ Current


http://search.ebay.com/_W0QQsassZkhazenzcc
Reply With Quote
  #3
Old 07-14-2007, 06:16 PM
cdplayer's Avatar
Just my Jeep and my S500

Join Date: Aug 2006
Location: Sacramento, Calif.
Posts: 581
cdplayer

Quote:
Originally Posted by zcc View Post
I guess it's a hydraulic oil valve (but not sure). Do you have a self-leveling rear suspensions or ADS?
No. The 1985 and later models have that. Mine is a 1984, and the picture is definately of a fuel line. Just not sure what type. Or the purpose of the thingy attached to the line.
__________________


Selling used Mercedes parts on Ebay...always changing...
cdplayer51 take a look!
____________
Reply With Quote
  #4
Old 07-14-2007, 07:34 PM
Registered User

Join Date: Jan 2002
Location: Niceville, FL
Posts: 471
Just a guess, but looks like it could be a fuel pressure valve of an older vintage.

http://catalog.worldpac.com/mercedesshop/sophio/wizard.jsp?partner=mercedesshop&clientid=catalog.mercedesshop&baseurl=http://catalog.peachparts.com/&cookieid=1VX0OZ4D924S15TCR8&year=1985&make=MB&model=500-SEL-001&category=All&part=Fuel+Pressure+Regulator
__________________
Don
'85 500SL (Euro) - 186,000 w/a complete restoration and engine rebuild at 154,000
'95 C280 - 174,000
Reply With Quote
  #5
Old 07-14-2007, 08:21 PM
Registered User

Join Date: Aug 2003
Location: Phoenix
Posts: 3,726
It's called a fuel tank vent valve. There's two different versions that work - 1074700993 and 1234700393.
Reply With Quote
  #6
Old 07-14-2007, 09:13 PM
cdplayer's Avatar
Just my Jeep and my S500

Join Date: Aug 2006
Location: Sacramento, Calif.
Posts: 581
cdplayer

Quote:
Originally Posted by deanyel View Post
It's called a fuel tank vent valve. There's two different versions that work - 1074700993 and 1234700393.
Thanks for the info. But how does it work. If venting is needed, where does the valve vent to? Or from?
__________________


Selling used Mercedes parts on Ebay...always changing...
cdplayer51 take a look!
____________
Reply With Quote
  #7
Old 07-14-2007, 10:02 PM
romansek

Join Date: Jun 2003
Location: Dallas, Tx
Posts: 190
The vent is from the fuel tank, and it vents to the intake manifold thru charcoal cannister.
__________________
Roman
_____________
87 300SDL 152K
86 420SEL 228K
83 280SL 145K (5 spd)
_____________

Last edited by romansek; 07-14-2007 at 10:13 PM.
Reply With Quote
  #8
Old 07-14-2007, 10:03 PM
cdplayer's Avatar
Just my Jeep and my S500

Join Date: Aug 2006
Location: Sacramento, Calif.
Posts: 581
cdplayer

Quote:
Originally Posted by deanyel View Post
It's called a fuel tank vent valve. There's two different versions that work - 1074700993 and 1234700393.
Well with your help I just answered my own questions. You identified the part. With that I then knew where to look in my shop CD. The vent valve vents to the charcoal cannister. Thanks
__________________


Selling used Mercedes parts on Ebay...always changing...
cdplayer51 take a look!
____________
Reply With Quote
  #9
Old 07-15-2007, 12:02 AM
cdplayer's Avatar
Just my Jeep and my S500

Join Date: Aug 2006
Location: Sacramento, Calif.
Posts: 581
cdplayer

Quote:
Originally Posted by romansek View Post
The vent is from the fuel tank, and it vents to the intake manifold thru charcoal cannister.
The vent valve(at the fuel tank) is getting replaced along with it's weeping fuel line. However following the vent line up to the charcoal canister, I discovered another valve that appeared to be tired. This valve has three line connected to it. And appears to be leaking. My shop CD identifies this valve as a vent valve purge. I found both valves online at Mercedes Benz Parts Direct. Reasonably priced too.
__________________


Selling used Mercedes parts on Ebay...always changing...
cdplayer51 take a look!
____________
Reply With Quote
  #10
Old 07-15-2007, 12:39 AM
88Black560SL

Join Date: Oct 2004
Location: NC
Posts: 3,467
I forgot the exact name. It may be called a purge valve or something like that. In any case it has to do with the evaporative emmision system. I will be under fuel tank pressure so if you remove the gas cap it will not be under pressure and liquid gas should not come out of is or the line its attached to.

John Roncallo
