Question How to bypass Dryer switch on W140 A/C system?

How do I bypass the Pressure Switch on the Dryer, to activate the compressor so I can charge the system? Its a 3 pin switch variable resistor (which you can't jumper).

Anyone know how to active the compressor manually?

1992 400SE

Reply With Quote
  #2
Old 07-20-2007, 01:38 PM
Registered User

Join Date: Aug 1999
Location: Florida / N.H.
Posts: 8,804
You dry charge the system first and that will give the system enough refrigerant for switch cut-in for compressor activation.

That sw should be a pressure sw , not a thermistor [ temp sw]

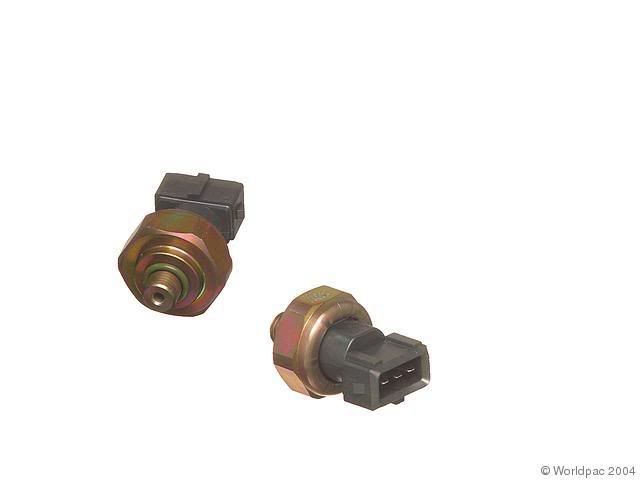

http://catalog.worldpac.com/mercedesshop/sophio/wizard.jsp?partner=mercedesshop&clientid=catalog.mercedesshop&baseurl=http://catalog.peachparts.com/&cookieid=21H0MN3YU24Y0TB6T4&year=1992&make=MB&model=400-SE-001&category=R&part=A%2FC+Pressure+Switch
Reply With Quote
  #3
Old 07-20-2007, 01:55 PM
Registered User

Join Date: Jan 2006
Posts: 121
At this thread it was said that it cannot be jumped:

pins to jumper for W140 A/C charge

How would I dry charge, after removing my vacuum pump, I attached a can of Freon through low-side and the pressure in my guages indicated 80psi, but the compressor didn't kick on. Everything worked fine before changing a cracked A/C line and dryer.
Reply With Quote
  #4
Old 07-20-2007, 01:58 PM
Registered User

Join Date: Dec 2000
Location: AL
Posts: 1,219
Warm up the cans. With a good vacuum, you should be able to get the entire required weight on board without running the compressor. Do it in the shade when the engine is cold.
__________________
2012 E350
2006 Callaway SC560
Reply With Quote
  #5
Old 07-20-2007, 02:07 PM
Registered User

Join Date: Aug 1999
Location: Florida / N.H.
Posts: 8,804
If you have a vac on the system you and hooked up a can , it should have sucked that can dry in no time..I think you have not opened the charge valve all the way..I believe the pressure reading ou are seeing is CAN pressure.

As far as the drier sensor, I have not seen that type and only have schematic/info on the E class. ..if that is a variable resistor , it would be an electonic pressure sensor [ as opposed to a mechanical]..I am sure MB Doc knows , so that should be correct info.
You can tell for sure with ohm meter. but I am sure he is correct.

I don't think you have transferred any refrig from can to system..is can EMPTY ????????

Last edited by Arthur Dalton; 07-20-2007 at 02:32 PM.
Reply With Quote
  #6
Old 07-20-2007, 02:29 PM
slk230red's Avatar
WECO Installer

Join Date: Jul 2006
Location: Tampa, FL
Posts: 820
Quote:
Originally Posted by slimak9 View Post
How do I bypass the Pressure Switch on the Dryer, to activate the compressor so I can charge the system? Its a 3 pin switch variable resistor (which you can't jumper).

Anyone know how to active the compressor manually?

1992 400SE


If you can't jumper the high pressure switch connector, could you activate the compressor clutch instead? Find the connector going to the clutch and supply the 12v. Just a thought. It's easy to jump the 2 prong switches.
__________________

1993 190E 2.3
2001 SLK230
1971 LS5 (454) Corvette Convertible
Reply With Quote
  #7
Old 07-20-2007, 05:51 PM
Registered User

Join Date: Jan 2006
Posts: 121
Thumbs up

Thanks everyone, I was able to put in 3.5 cans OR 42oz.=2.6lbs. as specified. I watched the sight glass go from White/Foggy to Clear w/o Bubbles. I hope this charge holds. A/C is sooooo coooollllld!

Anyone have info on the type of high and low pressure readings I should be receiving? Should I measure with system OFF, LOW SPEED, HIGH SPEED, OR WITH THE VEHICLE TOTALY OFF?

Another note: The very first can I put into the system, became so ICE cold, you could literly scrape the ice off it, while the rest were somewhat cool. Is this normal? I held the cans upright, but sometimes the system would stop taking it, I would have to shake it, drop the throttle back down to idle, then up to about 1500RPM's and off it went. (Never did the Compressor stop spinning, just the Aux. Fans were changing speeds.) To add the Freon it took me at least 25 min. Are there any special procedures to adding FREON that anyone can advise on?

I read the label of a different type of Freon can that had UV Dye and it said to hold the can up side down??? So whats the verdicts on FREON applications for my future A/C wooes?

Thanks to all.
Reply With Quote
  #8
Old 07-20-2007, 06:44 PM
Registered User

Join Date: Aug 1999
Location: Florida / N.H.
Posts: 8,804
So, what were you doing wrong????
Reply With Quote
  #9
Old 07-20-2007, 07:06 PM
slk230red's Avatar
WECO Installer

Join Date: Jul 2006
Location: Tampa, FL
Posts: 820
Quote:
Originally Posted by Arthur Dalton View Post
So, what were you doing wrong????
I agree...give us some details!
__________________

1993 190E 2.3
2001 SLK230
1971 LS5 (454) Corvette Convertible
Reply With Quote
  #10
Old 07-20-2007, 10:24 PM
Registered User

Join Date: Jan 2006
Posts: 121
I wish I knew...after fidling with my guages, restarting the car many times, the compressor finally kicked in.

I didn't add any vacuum, or change pressures, so I don't know. I fidled with many things before starting the car on each time, (disconnecting the compressor, the switch, reconnecting my hoses, etc.)

In the end, make sure you tripple check everything.
Reply With Quote
  #11
Old 07-21-2007, 01:12 AM
Registered User

Join Date: Aug 1999
Location: Florida / N.H.
Posts: 8,804
<>

This is the question we were concerned with.
If you had an 80psi reading with the first can of refrig., you did not have a
valve open and your gauge was showing can pressure. The comp did not come on b/c there was never any refrig in the system yet. With a fully vac system, one can would not give you a system pressure of 80psi.
But when you did it the second time you posted , you noticed the can got cold..it got cold b/c you now had refrig. going into the system. So, the logical conclusion is you did not have the correct charge ports open the first time around.
That was our question.
But, you now have the system charged, so..nevermind.
Reply With Quote
  #12
Old 07-21-2007, 11:22 AM
JimF's Avatar
'94 S500: only 793 sold!

Join Date: Mar 2001
Location: San Diego, CA
Posts: 1,933
Quote:
Originally Posted by slimak9 View Post
Anyone have info on the type of high and low pressure readings I should be receiving? Should I measure with system OFF, LOW SPEED, HIGH SPEED, OR WITH THE VEHICLE TOTALY OFF?
Thanks to all.
Check out MENU#15 and use the Operational Checks to get the readings in the system. The 'best' two are #5 (evap temp) and #7 (compressor pressure in bar).

#5 s/b around 40F and #7 will vary alot from about 7-8 bar on the highway on a cool day to 15 -17 bar in traffic on a hot day. (1 bar = 14.7 psi).
__________________
Regards . . . . JimF
-------------------
'94 S500 Cpe

Visit my Mercedes Web Page

Last edited by JimF; 07-21-2007 at 01:34 PM.
Reply With Quote
  #13
Old 07-21-2007, 01:26 PM
Registered User

Join Date: Jan 2006
Posts: 121
Jim, the bar reading is of the high pressure, what is an acceptable pressure for the low side? That is where my hose originaly cracked (the rubber portion near the compressor) and I'm curious to know why? Maybe too high of a pressure?

Thanks for the info.



Arthur, if I think about, I agree, it must have been a valve on the manifold or on the quick-couplers.
Reply With Quote
  #14
Old 07-21-2007, 01:30 PM
Registered User

Join Date: Aug 1999
Location: Florida / N.H.
Posts: 8,804


That would be the deduction..which is why we like a follow-up ..
Just a common courtesy thing.
Tnx
Reply With Quote
  #15
Old 07-21-2007, 01:33 PM
JimF's Avatar
'94 S500: only 793 sold!

Join Date: Mar 2001
Location: San Diego, CA
Posts: 1,933
Quote:
Originally Posted by slimak9 View Post
Jim, the bar reading is of the high pressure, what is an acceptable pressure for the low side? That is where my hose originaly cracked (the rubber portion near the compressor) and I'm curious to know why? Maybe too high of a pressure?
There's no reading 'spot' for that in the Operational Checks. That reading will vary also depending on temperature; cooler day around 25 or so, and hot day w/ a full charge 35. But you need a 'gauge' to read the low side.

The hose probably died of 'old-age' or acid buildup???

__________________
Regards . . . . JimF
-------------------
'94 S500 Cpe

Visit my Mercedes Web Page
Reply With Quote
