I really hope this doesn't require taking the block to machinist...


.

.

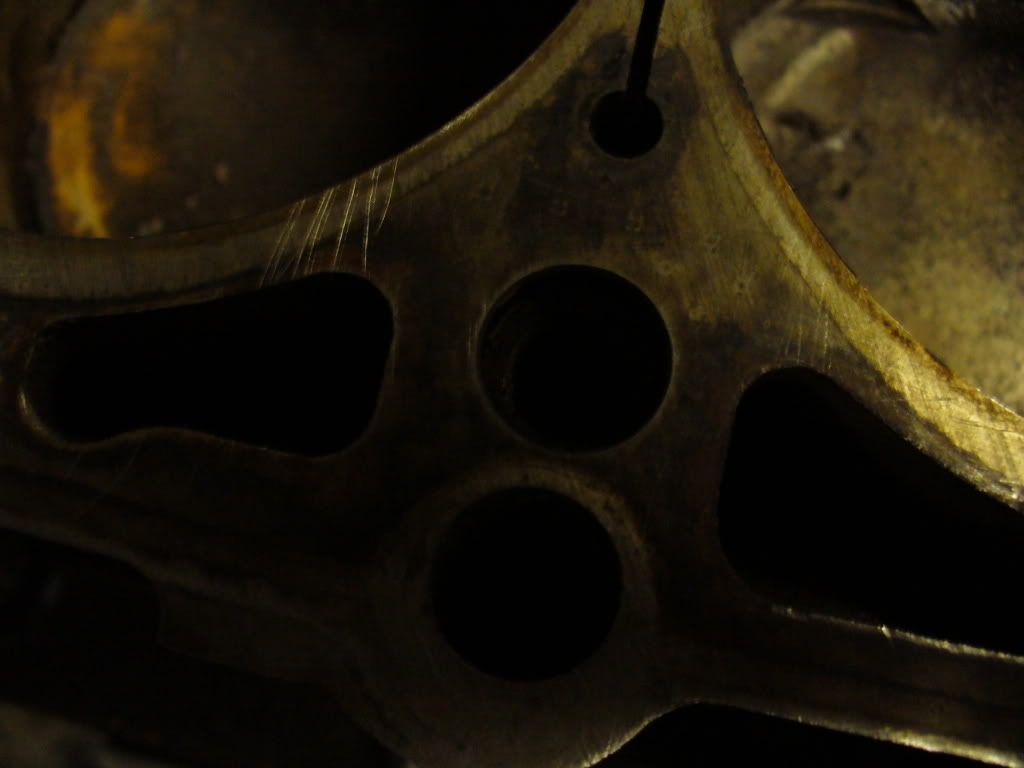

I can feel the scratches with my fingernails when i slide across them.

I'm going to say YES, looks insignificant to me BUT I am absolutely just guessing, I do not know.

__________________
1987 300SDL 167k
1992 Volvo 740 140k
1990 Volvo 740 250k
1989 Volvo 240 269k

Anyone want to trade an old Volvo for an '87 300sdl?

Finish cleaning the block and then look for the scratch.

I would take a block sander with some 320 wet dry sandpaper lubricated with some atf or wd40 and sand it till the raised areas are knocked down, then not worry anymore.

Tom W

__________________
[SIGPIC] Diesel loving autocrossing grandpa Architect. 08 Dodge 3/4 ton with Cummins & six speed; I have had about 35 benzes. I have a 39 Studebaker Coupe Express pickup in which I have had installed a 617 turbo and a five speed manual.[SIGPIC]

..I also have a 427 Cobra replica with an aluminum chassis.

OOO, never use sand paper wet or oiled on an assembled block.

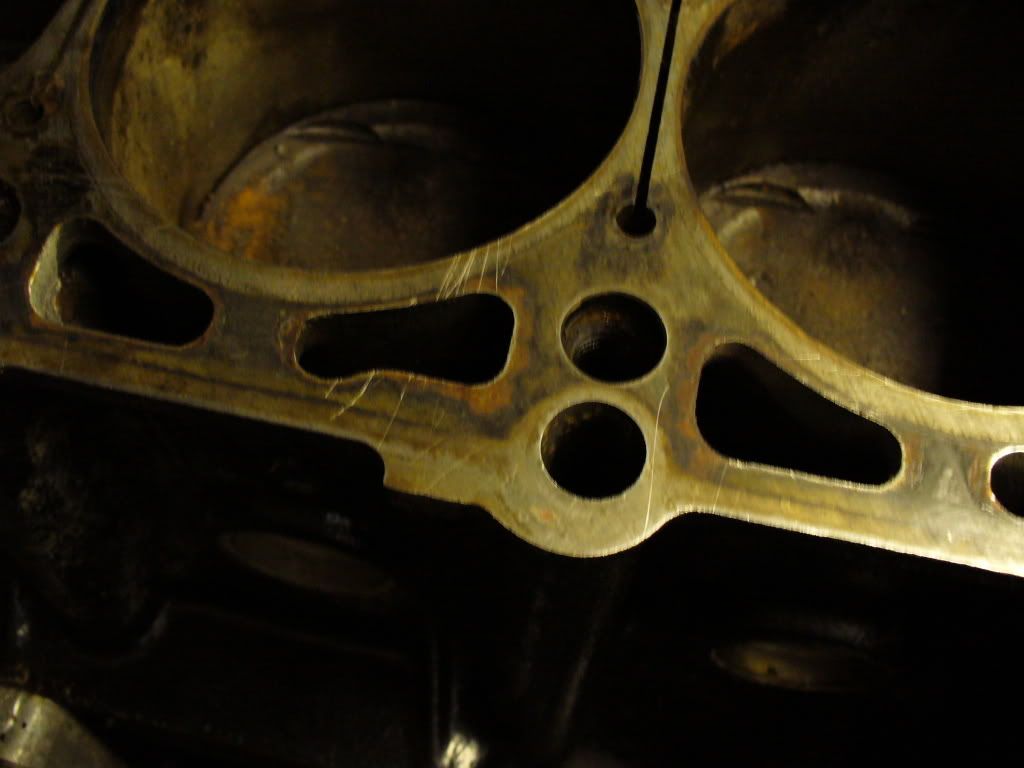

I see rust on the piston and a black mark on the cyl wall (corrosion?)

I'd be more concerned with that.

__________________
Current:
2021 Charger Scat Pack Widebody "Sinabee"
2024 CR-V Hybrid

Previous:
1972 280SE 4.5
2018 Durango R/T, 2014 Jeep Grand Cherokee Limited "Hefe", 1992 Jeep Cherokee Laredo "Jeepy", 2006 Charger R/T "Hemi"
1999 Chrysler 300M - RIP @ 221k

Pistons are aluminum so no rust. Let the owner make the calls here.

Looks like rust to me. The piston is aluminum but it must have come from somewhere.

Maybe that's why the head is off.

__________________
2012 E350
2006 Callaway SC560

How do you know it's rust?

Thank you all for the replies.

The cylinder wall is not rusted. it's just dirty from oil/brake cleaner mixture.
I'm just going to clean the block surface more using brake cleaner and solvents.
I don't want to use sand paper cause that might leave more scratches..

Next time I do any block surface cleaning, i'll just be more careful. I didn't think the razor blade would scratch through the steel block.

You're getting anal here. Use 180 grit sandpaper, dry. It will load up like crazy, which is what you want as the swarf will be trapped in the paper. Follow the curve of the cylinder when you clean so no streaks run on a radius. After the block is cleaned of old gasket and corrosion go over it with a rag and solvent and blow out the cylinders with compressed air and clean out the bolt holes thoroughly.

I would do it manually and use some Scotch Brite sponge for removing all stuff until block surface is clean and as said by Chas-H following the curve of the cylinder and all the other holes (3 fluids are there: combustion; coolant and oil as far as I know).
Good luck

__________________
Keep us posted especially if your problem is solved
