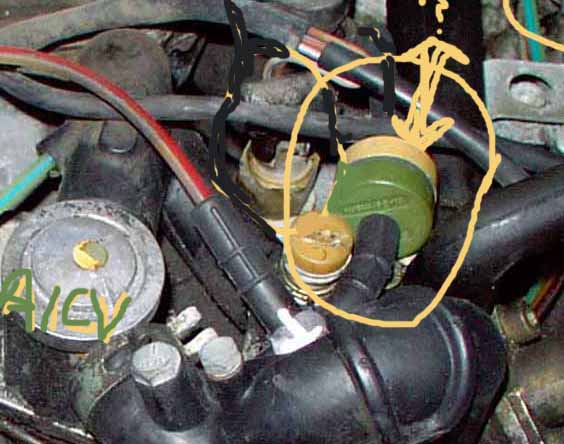

I think the green & yellow plastic valve is called the air inject valve?

I have heard its a one way valve.

Most that I have seen flow from lighter color to darker color.
Not sure of that.

My question is should this valve be reversed to have green closer to intake side & yellow more toward distrib side?

Does the air flow into the intake here or away from the intake?

Sorry, I really am trying to learn engine mechanics & help get my old car straightened out.

I would assume it being an air intake that air would flow into it.

So its possible that this valve being backwards would essentially stop any air getting to intake & its a quad connected to WUR & distrib vacumn
& it really should be hooked up right...

Thanks...

Attached Thumbnails



__________________


83 500 SEC Euro 198K

I have never even seen one of these so as to get a replacement
Not even sure what it is or what its for but that aside

Any MB Docs know if this is backwards

Should I blow in it & see which way air comes out???

Does air go into the intake manifold port there or come out?

Guess would be in...

I;'m trying...

Thanks

__________________


83 500 SEC Euro 198K

Quote:
Originally Posted by mercmad6.3
Evening From Brissy!.

that green and white plastic thing on the intake?
It's called an "orifice" because it has special hole inside which is designed to restrict vacuum at idle and at speed( full throttle) it's bypassed to provide vacuum for the distributor.
Your's is on back to front.
White side faces the intake manifold.
.

So its not restricting idle if its backwards?
then maybe thats why idle is hi?

Would it being backwards also screw up driving idle & perhaps even hot start?

Why dd my mechanic say its on right?

So its supposed to restrict how is it actuated?
how does it determine idle or full throttle?
Its an open intake port

I guess I don't really understand how its supposed to work to be able to figure out which way the air should flow.

So would you want the air flow on that valve to flow away from the intake or to it?

I have to takeoff the air assembly to check it
thats why I wanted the mechanic to do it as he had the assembly off

He told me it was right

If its still backwards
maybe thats why when its hot its hard to start as idle is restricted?

Got to get this straight!

__________________


83 500 SEC Euro 198K

Well its out
& is was not a enjoyable easy job

Now I;m blowing in the darn thing
trying to find the way it goes
but it seems to be blocked both ways????

Help
I'm turning red about to faint from all this blowing



Does it fill up & then slow?

think its easier to blow from yellow to green way...

How would this be fitted to intake
blow toward or away from intake

Which way is the air supposed to go from a port in the front of the intake\
thats also tied into the WUR & dis vac???

__________________


83 500 SEC Euro 198K

The orifice was in correct

What a relief
Guess I should not have doubted the Benzmaster

Me Bad

But I wanted to malke sure

Forgive me

I got the info...
