  #1
Old 12-29-2007, 09:16 PM
Registered User

Join Date: Dec 2007
Posts: 86
CEL reader for dummies

I've read some of the threads on making the LED trouble code reader, but I'm still a little lost. I haven't seen any posts directly regarding reading codes on a 1992 190E 2.6. My car doesn't even have a check engine light, but I do have 2 "ports". I have a round one over the driver side front wheel well and I have a square one in the battery compartment. Which do I use? I've seen two diagrams for the diy code reader. Which is the latest one? Is there a guide to using this code reader for my particular car? The only real issue I have is lack of power (compression test shows good compression). I got this car recently and I just want to make sure everything is working as it should. Thanks so much for your help!

Reply With Quote
  #2
Old 01-01-2008, 03:37 PM
Registered User

Join Date: Dec 2007
Posts: 86

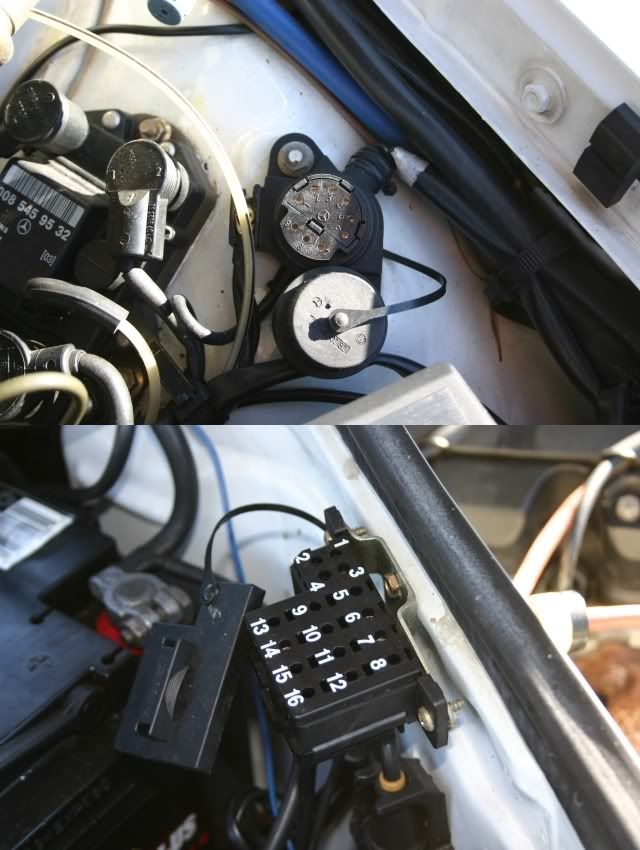

Does the code reader plug into both of these ports in my '92 190E 2.6?

Attached Thumbnails
CEL reader for dummies-ports.jpg   CEL reader for dummies-ports_2.jpg

Last edited by whunter; 01-02-2008 at 01:51 PM. Reason: attached pictures
Reply With Quote
  #3
Old 01-01-2008, 04:11 PM
Registered User

Join Date: Aug 2003
Location: Phoenix
Posts: 3,726
It's the 16 pin connector. More info here:

http://www.diakom.ru/CARS2/pribor/cs1000/manual/cs1000_mb.pdf

and here:

http://www.k6jrf.com/MB_S500.html , menu item #2, bottom of the page.

Last edited by whunter; 08-09-2012 at 02:25 PM. Reason: repaired links
Reply With Quote
  #4
Old 04-01-2008, 09:03 PM
Registered User

Join Date: Apr 2008
Posts: 14
Where do I get one?

Are those readers expensive? Where would I get one?

Thanks -- Greg
Reply With Quote
  #5
Old 04-01-2008, 09:31 PM
Registered User

Join Date: Jul 2003
Location: Ocean Isle Beach, NC
Posts: 2,507
You build one for about twenty bucks with parts from Radio Shack. I built one a couple of months ago. A search of this forum will bring up the info you need.
__________________
Len
'59 220S Cabriolet-SOLD and living happily in Malta
'83 240D 351,500 miles original owner-SOLD
'88 560SL 41,000 miles - totaled and parted out
https://sites.google.com/site/mercedesstuff/home
'99 E300 turbo 226,500 miles
'03 SLK320 40,000 miles - gave to my daughter
'14 Smart electric coupe 25,500 miles
'14 Smart electric cabriolet 26,500 miles
'15 Smart electric coupe 25,000 miles

Reply With Quote
  #6
Old 04-02-2008, 11:25 AM
Dee8go's Avatar
Senor User

Join Date: Apr 2006
Location: The People's Republic of Arlington, VA
Posts: 7,193
Do these home-made code readers act as just a display for information from the car's computer? I'm guessing that's the case since it doesn't sound as though they contain any sort of software of their own.
__________________
" We have nothing to fear but the main stream media itself . . . ."- Adapted from Franklin D Roosevelt for the 21st century

OBK #55

1998 Lincoln Continental - Sold
Max 1984 300TD 285,000 miles - Sold
The Dee8gonator 1987 560SEC 196,000 miles - Sold
Orgasmatron - 2006 CLS500 90,000 miles
2002 C320 Wagon 122,000 miles
2016 AMG GTS 12,000 miles
Reply With Quote
  #7
Old 04-02-2008, 12:20 PM
Registered User

Join Date: Aug 1999
Location: Florida / N.H.
Posts: 8,804
Quote:
Originally Posted by Dee8go View Post
Do these home-made code readers act as just a display for information from the car's computer? I'm guessing that's the case since it doesn't sound as though they contain any sort of software of their own.
The tool is nothing more than a .99cent LED that is Used to Initiate the cars Diagnostic Module, which then sends a code back to the LED in a Flash Format.

It is nothing more than an extension to the Built-IN LED/SW that some chassis have from the Factory as Stand Equipment.[ mostly Cal emmissions versions]
Which socket you hook the led to determines which Module in the cars Control Systems your are addressing.
This is OBD1, [ analog]..and does not work on ANY OBD2 cars...[ digital]
It is that simple...

Here is a diag. to make one ..or you can even go get one on ebay that a member here sells them at .. [ but for about $50..]

Make one ,,they are a nice tool box addition and they come in handy b/c you can also get to all the chassis code storing modules, ..along with finding the cause of many problems..saves that dreaded Dealer Trip we all like.
"Dealer Trip/Dentist/Trip"..both feared to the same degree, but the Dentist is usually cheaper $$$$$$$$$$$....

http://members.aol.com/ajdalton7/ledtool.jpg
__________________
A Dalton
Reply With Quote
  #8
Old 04-30-2008, 10:41 AM
Registered User

Join Date: Dec 2000
Location: AL
Posts: 1,219
Quote:
Originally Posted by deanyel View Post
It's the 16 pin connector. More info here:

http://www.diakom.ru/CARS2/pribor/cs1000/manual/cs1000_mb.pdf


That CS1000 manual is extremely valuable. Thanks!
__________________
2012 E350
2006 Callaway SC560

Last edited by whunter; 08-09-2012 at 02:25 PM. Reason: repaired link
Reply With Quote
  #9
Old 08-09-2012, 02:26 PM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,387
Recycled

for new members

Reply With Quote
