Parts Catalog Accessories Catalog How To Articles Tech Forums
Call Pelican Parts at 888-280-7799
Shopping Cart Cart | Project List | Order Status | Help



Go Back   PeachParts Mercedes-Benz Forum > Mercedes-Benz Tech Information and Support > Tech Help

Reply

LinkBack Thread Tools Display Modes
  #1
Old 04-12-2008, 01:49 PM
MB, love..hate..love..

Join Date: Apr 2003
Location: NB Canada
Posts: 1,173
Self-made tool: Timing Chain loader

Thanks to the threads and pictures posted by several great people here, especially Alkraut and Roncallo, I'm nearly ready to finish my timing chain guides replacement and put in a new chain. By 'ready', I mean getting up the nerve to remove the distributor and do the driver side upper guides. The passenger side guide was easy, but I'm a bit worried about removing the chain sprocket to do the left side.
Anyway, I decided to make my own chain loader tool, dimensions copied/estimated from pictures of the actual unit available from U.S. sources for about $52.00 + about $30.00 more for shipping and duty/taxes etc. to Canada.
Besides the high price for a one-time use tool, I didn't like the way it mounts to the front camshaft bearing carrier bolts. I was worried about disturbing the torque settings and/or mis-alignment of the bearing to the cam when replacing the bolts after finishing doing the chain job. I suspect it is designed to be used on either the left or right head, but all the threads on putting on a new chain have it used on the right one only, so I thought I'd just custom make it to use there.
I took my best guess as to the actual sizing of the 'covering' piece that goes over the chain/sprocket and did up a cardboard pattern. I taped cardboard on the inside of the curved top to get a little over 1/16" clearance from the chain/sprocket, checked for fitment, then disassembled and traced the pattern on some steel scrap, just over 1/16" thick.
After tackwelding the cover piece together, I transferred the spacing cardboard from the mockup to the steel piece, then set it on the sprocket. I made a piece of angle with 2 holes to mount to the alternator bracket holes in the head, then did the uprights to connect them together.

Attached Thumbnails
Self-made tool: Timing Chain loader-chain-loader.jpg   Self-made tool: Timing Chain loader-100_0776.jpg   Self-made tool: Timing Chain loader-100_0778.jpg   Self-made tool: Timing Chain loader-100_0779.jpg
__________________
1986 560SL
2002 Toyota Camry
1993 Lexus

Last edited by donbryce; 04-12-2008 at 01:59 PM.
Reply With Quote
  #2
Old 04-12-2008, 01:57 PM
MB, love..hate..love..

Join Date: Apr 2003
Location: NB Canada
Posts: 1,173
....continuing, after tack welding the unit together, it seemed a bit unstable, so I made a brace to support it from the backside. The brace rod is secured to the valve cover mounting hole.
I cut the opening for the chain access after welding it together. Painting wasn't necessary, but it looks nice. Hopefully, it'll do the job of keeping the chain on the sprocket when I get up the balls to put in the new chain.
I still have to replace the driver's side guides, so the chain job will likely be in a few days, at which time I'll post a follow-up on how it went.....
BTW, if anyone wants the dimensions to make one of these, just ask
Attached Thumbnails
Self-made tool: Timing Chain loader-100_0780.jpg   Self-made tool: Timing Chain loader-100_0787.jpg   Self-made tool: Timing Chain loader-100_0789.jpg
__________________
1986 560SL
2002 Toyota Camry
1993 Lexus
Reply With Quote
  #3
Old 04-12-2008, 11:48 PM
Registered User

Join Date: Mar 2007
Posts: 159
Very commendable. I used the vice grip method with one exception. I covered the jaws with aluminum so as to not mark up the chain or gear. (TOMGUY post). It was slow but sure.I really like what you made. The idea of removing 19 year old cam tower bolts did not seem like a good idea. Would like to hear back how it works. Good luck
Reply With Quote
  #4
Old 04-13-2008, 01:17 AM
Strife's Avatar
General Purpose Geek

Join Date: Apr 2004
Location: KY USA
Posts: 2,238
No question, there is a big advantage in NOT removing the cam tower bolts- - this is a good idea. I have one of these (original design) tools, and I didn't realize just how sensitive the cam tower positioning is until I actually replaced a cam. Then, there is the small, but real possibility of getting a big surprise while retorquing these bolts - losing torque on them would be a head-off nightmare.
__________________
86 560SL
With homebrew first gear start!
85 380SL
Daily Driver Project

http://juliepalooza.8m.com/sl/mercedes.htm
Reply With Quote
  #5
Old 04-13-2008, 03:56 AM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,357
Smile Yes

Quote:
Originally Posted by donbryce View Post
BTW, if anyone wants the dimensions to make one of these, just ask
Please post the dimensions here.
__________________
ASE Master Mechanic
asemastermechanic@juno.com

Prototype R&D/testing:
Thermal & Aerodynamic System Engineering (TASE) Senior vehicle instrumentation technician.
Noise Vibration and Harshness (NVH).
Dynamometer.
Heat exchanger durability.
HV-A/C Climate Control.
Prototype Vehicle build.
Prototype Fleet Durability
Prototype vehicle instrumentation.
Technical Quality Auditor.
Automotive Technical Writer

1973 300D
1973 309D - stolen
1978 280SE
1980 240D
1983 300D
1984 190D
Reply With Quote
  #6
Old 04-14-2008, 09:03 PM
MB, love..hate..love..

Join Date: Apr 2003
Location: NB Canada
Posts: 1,173
I snagged my son for some 'quality time' this afternoon, and we did the chain replacement together, using my new tool. More on that in a moment. As promised, here are the dimensions for making one. Referring to the drawing, and the earlier shots of the unit, I'll add a few notes on how it was designed.

I first cut out the pieces from thick cardboard, the stuff picture framers use as 'mat board', to make the cresent shaped top part. After verifying the fit, the cardboard was used as a template to mark and cut the steel, which was scrap about 1/16" thick. This was tack-welded together.
The objective is to get a nice tight clearance, absolute minimum, between the top of the chain on the gear and the inside of the loader tool's curved top. I taped 1/16" cardboard inside the steel top piece to establish this clearance, as it sat on the chain/gear.

After making up the lower bracket pieces, I marked the position of the uprights relative to the top piece sitting on the chain/gear. With the spacers inside, that meant that the finished piece would have just enough clearance to allow the chain to ride inside, but impossible for the links to leave the gear teeth.

The rear support rod may have been overkill, but in use, the chain definitely smacks the inside of the top piece as it tries to jump out while the valve springs jerk the camshafts forward. Thicker metal would have made this rod unnecessary, but then the cutting would've been harder. I cut this out on my bandsaw and using a jigsaw BTW.

So, as my boy and I found out, it would be easy to jump a tooth or 2 if not for something like this tool, or very tedious using visegrips or tie-wraps. I maintained constant upward pulling pressure on the old chain as it rolled out, and even pushed down on the new chain as it entered the tool top piece as he slowly turned the engine crank. I left the rocker arms in, sparkplugs and tensioner were out. We finished the load in about 20 minutes. All my timing marks line up and the balancer pointer is at '0'. I'm ecstatic! One more piece to replace (tensioning rail) and the oiler plastic thingies and it's button up time.

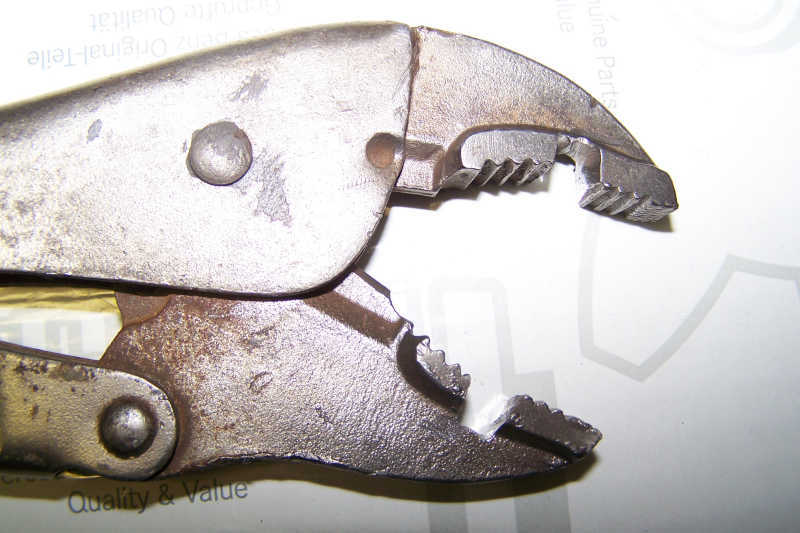

Last pictures are of my modified vice grips, for holding the cam solid while undoing/torquing those big bolts (100nm). I couldn't find a picture of the MB tool for gripping those nubbins. All my books show a square block and large end wrench.
Attached Thumbnails
Self-made tool: Timing Chain loader-chainloaderdwg.jpg   Self-made tool: Timing Chain loader-100_0791.jpg   Self-made tool: Timing Chain loader-100_0790.jpg
__________________
1986 560SL
2002 Toyota Camry
1993 Lexus
Reply With Quote
  #7
Old 04-15-2008, 03:02 PM
myanoch's Avatar
Registered User

Join Date: Aug 2004
Location: Scranton Pa.
Posts: 239
Nice job,like what I see
thanks for the great idea
__________________
[B]Mike Y.
00 sl500 sport
88 560 sl (sold)
Reply With Quote
  #8
Old 04-21-2008, 03:52 PM
Registered User

Join Date: Jul 2007
Location: Clackamas, Oregon/Scottsdale,AZ
Posts: 41
What a great bunch of guys here. I can't wait to get back to Portland, OR and get started replacing my chain and tensioners. More questions! Being a newbe to the MBZ I could use more details about what all do I need to change out. Tensioners, guides, gears,etc etc. Is there a special tool for removing the tensioner pins? are they threaded or just a tight push/pull fit? Should I replace all the tensioners and guides or just the guides or just the tensioners? I have about 80,000 miles on a rebuilt replacement motor and a bit nervous about throwing a chain on it. Total mileage on the car is about 151,000 and I want to be able to take it out of town without a worry about at least the chain. Any and all ideas and information is appreciated. Thanks a million.

__________________
Ben
Chief wrench for Niki's

'84 MBZ SL380

Last edited by bbeberness; 04-21-2008 at 04:08 PM. Reason: complete inquiry.
Reply With Quote
Reply

Bookmarks

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On




All times are GMT -4. The time now is 05:30 AM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2019, vBulletin Solutions, Inc.
Search Engine Optimization by vBSEO 3.6.0
Copyright 2018 Pelican Parts, LLC - Posts may be archived for display on the Peach Parts or Pelican Parts Website -    DMCA Registered Agent Contact Page
