Reading Compression Report of my W124-E220(M111.960)

Hello All,
I am restoring recently bought 1995 W124-E220 (M111.960), got the compression check done at local Mercedes dealer, the report is as below

Cylinder Compression
-------------------------------

1 -----> 9
2 -----> 8.5
3 -----> 7.6
4 -----> 9

The engine has done about 70, 000 kms on ODO meter, I am slightly concerned about the compression reading of the cylinder 3, do I need to worry? What could be the reason for the compression drop, should I do some more checks? The exhaust is clean without any trace of smoke.

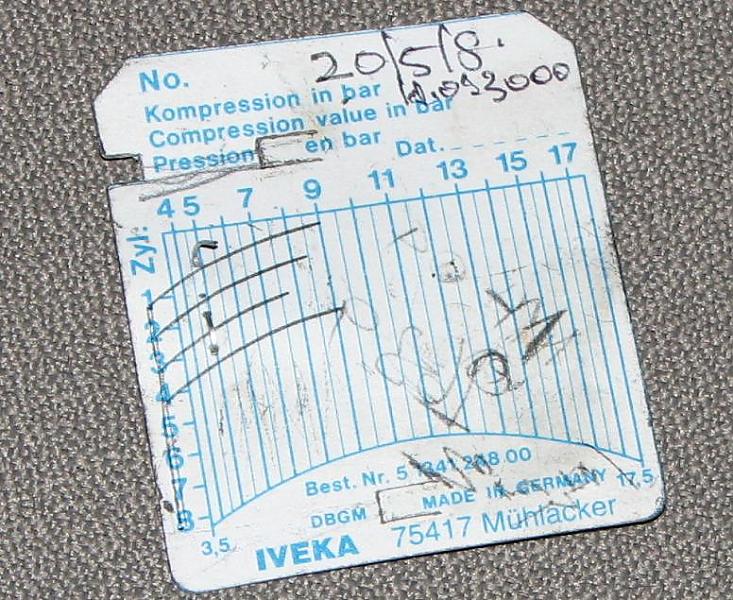

According to WIS this particular model compression is between 7.5 to 10.5(fuel optimized), please see attached image (Stock-Compression.gif). I have also attached actual compression image (Actual-Compression.gif), sorry for poor quality of the picture.

Thank you

Attached Thumbnails
Reading Compression Report of my W124-E220(M111.960)-stock-compression.jpg   Reading Compression Report of my W124-E220(M111.960)-actual-compression.jpg

Last edited by PhantomLord; 05-23-2008 at 01:51 PM.
Reply With Quote
  #2
Old 05-23-2008, 08:15 AM
ozzy's Avatar
benz tech

Join Date: Dec 2004
Posts: 221
Did they perform a wet test as well?
Reply With Quote
  #3
Old 05-23-2008, 08:26 AM
t walgamuth's Avatar
dieselarchitect

Join Date: Apr 2005
Location: Lafayette Indiana
Posts: 38,592
Did they run a test with air to determine the source of the loss...intake, exhaust or sump?

This will tell if its valves or rings.

If its valves, which seems likely, a valve job would be in order sometime, but if its in tolerance I probably would keep driving it for a while while I saved money.

You never know, you could spend thousands on a valve job and the next time out the car might be totalled in an accident.

Tom W
__________________
[SIGPIC] Diesel loving autocrossing grandpa Architect. 08 Dodge 3/4 ton with Cummins & six speed; I have had about 35 benzes. I have a 39 Studebaker Coupe Express pickup in which I have had installed a 617 turbo and a five speed manual.[SIGPIC]

..I also have a 427 Cobra replica with an aluminum chassis.
Reply With Quote
  #4
Old 05-23-2008, 11:47 AM
pawoSD's Avatar
Dieselsüchtiger

Join Date: Oct 2004
Location: Grand Rapids, MI
Posts: 15,438
Quote:
Originally Posted by t walgamuth View Post
You never know, you could spend thousands on a valve job and the next time out the car might be totalled in an accident.

Tom W
But then you still have a good running motor you could drop into a car with a bad engine.
__________________
-diesel is not just a fuel, its a way of life-
'15 GLK250 Bluetec 118k - mine - (OC-123,800)
'17 Metris(VITO!) - 37k - wifes (OC-41k)
'09 Sprinter 3500 Winnebago View - 62k (OC - 67k)
'13 ML350 Bluetec - 95k - dad's (OC-98k)
'01 SL500 - 103k(km) - dad's (OC-110,000km)
'16 E400 4matic Sedan - 148k - Brothers (OC-155k)
Reply With Quote
  #5
Old 05-23-2008, 01:58 PM
Registered User

Join Date: Jan 2008
Posts: 92
I have updated the Actual Compression image with better quality one if someone wants to have a look.

Thanks for the input all, no leak test has been done yet. I am not sure about the wet test, will check on my next visit to the dealer. Presently planning to run it for sometime while I save, then decide on valve job, may be new engine would be cheaper option?

Will update this thread on that.
Reply With Quote
  #6
Old 05-23-2008, 02:12 PM
Registered User

Join Date: Aug 2003
Location: Phoenix
Posts: 3,726
You're fine, stop worrying about it. Look on the bright side -as said you're probably going to be in an horrific accident before it goes anyway.
Reply With Quote
  #7
Old 04-09-2010, 02:05 PM
Registered User

Join Date: Jan 2008
Posts: 92
After 92000 KM

After 92000 KM I had to re-check the compression due loss of power and overheating when revved.

Dry Cylinder Compression in Bar
------------------------------

1 -----> 6
2 -----> 5
3 -----> 4
4 -----> 5

Wet Cylinder Compression
------------------------

1 -----> 8
2 -----> 7.5
3 -----> 7
4 -----> 7


From compression reading, I am guessing I would have to replace rings?

- What could be the reason for huge drop in compression for some 20K kms? (see my first post for original dry compression)
- I don't see any smoke in tail pipe nor I am loosing oil.
- I have repeated the tests twice between 1000 kms and results are same as above.
Reply With Quote
  #8
Old 04-09-2010, 06:55 PM
Registered User

Join Date: Aug 2008
Posts: 436
I'm a little late to the game... why did you buy the car?

The compression numbers should all be within a bar. THere is more than just a "range", but they must all be close in the big range. And with low mileage, I'd expect them all to be around 10.

You need to do a leak down test and see where the leakage is..

Over heating...??? That's not good. How hot did you get it? Could have just warped valves and need a valve job. If you got it really hot, it's quite possible the rings have lost temper and gotten soft. You'd have to pull it apart and inspect the bores closely with accurate measuring equipment to know if re-ring is an option. Ussually, I'd say bore it and put o/s pistons in the block.

Michael
Reply With Quote
  #9
Old 04-09-2010, 09:20 PM
Hirnbeiss's Avatar
ich fahre, also bin ich

Join Date: Mar 2002
Location: South Florida
Posts: 1,671
Or you could find another engine. If you're in Germany, could it have been a taxi with an odometer rollback? Some people are pretty good at that there.
If you're going to fix it, I would do both rings and valves - it's only a 4-banger.
__________________
Prost!
Reply With Quote
  #10
Old 04-10-2010, 02:56 AM
Registered User

Join Date: Jan 2008
Posts: 92
Thanks for the input, will look into possible options, I am leaning towards another engine if I can find one.

- If engine is not in 5th gear (5 speed manual) the engine temperature is always around 100 - 102C, this does not vary much with external temperature. When cursing in 5th temperature will be around 90 C.

- Engine over heated twice in 20K km, with temperature hitting ~< 120 C (only for brief period), once when tension-er pulley broke and other time main fan had issues.

Will the above lead to rings loosing temper? What are the other possibilities that could lead to worn rings or cylinder wall?
Reply With Quote
  #11
Old 04-10-2010, 08:54 AM
Hirnbeiss's Avatar
ich fahre, also bin ich

Join Date: Mar 2002
Location: South Florida
Posts: 1,671
120C is not extreme. Other causes could be sticking rings caused by oil sludge buildup, cylinder scoring caused by oil starvation, carbon buildup on valve seats (seems less likely due to your wet results). Infrequent oil changes can shorten the life of the rings as well.
