Question Cruise Control sensor w124

Hi, I am in the process of fitting a non-original cruise control to my '88 250 Turbodiesel wagon. I had this particular unit installed in a w123 and it worked great - however, the back of the speedo is different on the w124, and there is already a sensor fitted. This little devil goes by the name of VDO 007 542 29 17 and has a + and a - marking on two of its three connectors. The last, much fatter one does not have any markings - is this the one to use for the lone wire from my unit (the w123 required only the one wire and a chassis connection)...?
Any help would be appreciated!
Kind regards from overseas...

Reply With Quote
  #2
Old 07-16-2008, 02:16 AM
compress ignite's Avatar
Drone aspiring to Serfdom

Join Date: Feb 2004
Location: 32(degrees) North by 81(degrees) West
Posts: 5,554
Sensor

mottakelse,

('Couldn't find any Danish on "Free Translation" , Norwegian might be a standby?)

VDO-Siemens

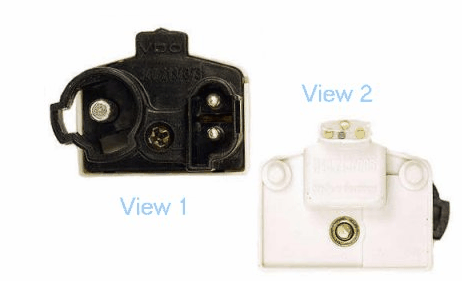

Speed Control Sensor; Idle/Cruise Control Impulse Sender at Rear of Instrument Cluster.

In "View 1", in the picture, the large pin on the left?
That's the speed sensor output for the Cruise Control.

The other two pins are Power (positive) and Ground(negative).

I don't know why the sensor is "Powered".

Terminal 15 is Positive
Terminal 31 is Negative
Attached Thumbnails
Cruise Control sensor w124-screenhunter_11-jul.-16-01.57.gif   Cruise Control sensor w124-screenhunter_13-jul.-16-02.27.gif
__________________
'84 300SD sold
124.128

Last edited by compress ignite; 07-16-2008 at 02:29 AM.
Reply With Quote
  #3
Old 07-16-2008, 03:20 AM
Registered User

Join Date: Jul 2008
Location: Skaelskoer, Denmark - yes, that's Europe!
Posts: 3
Thumbs up Cruise sensor

Hi and thanks, this is perfect - I am already warming up my soldering iron...! Don't worry about the lingo, norwegian works just fine....

The firts links page you sent me didn't work, probably because I use Explorer with all the @#4!!!€ pop-up-blockers, I'll install a free-ware browser and look again. Thanks a lot for your fast help, I'll be back with a running report!
Regards from sunny Denmark (21 degrees centigrade and a fresh wind...)
Reply With Quote
  #4
Old 07-16-2008, 12:59 PM
compress ignite's Avatar
Drone aspiring to Serfdom

Join Date: Feb 2004
Location: 32(degrees) North by 81(degrees) West
Posts: 5,554
Mozilla Firefox

Best Freeware Browser.(above)
Attached Thumbnails
Cruise Control sensor w124-screenhunter_01-jul.-16-12.52.gif   Cruise Control sensor w124-screenhunter_02-jul.-16-12.56.gif   Cruise Control sensor w124-screenhunter_05-jul.-16-12.57.gif
__________________
'84 300SD sold
124.128
Reply With Quote
  #5
Old 07-21-2008, 06:02 AM
Registered User

Join Date: Jul 2008
Location: Skaelskoer, Denmark - yes, that's Europe!
Posts: 3
Thumbs up Hey presto!

Compress ignite, you're the man! The cruise control, although not MB-original, now works perfectly - thanks a lot!
Best regards from Denmark (18 degrees centigrade, heavy showers all week...)
Reply With Quote
  #6
Old 07-23-2008, 12:28 AM
compress ignite's Avatar
Drone aspiring to Serfdom

Join Date: Feb 2004
Location: 32(degrees) North by 81(degrees) West
Posts: 5,554
Hooray

That right foot gets tired on long drives without it.
