#1
|
|||
|
|||
Pulley Replacement
The idler pulley on my 2000 m/b E430 came apart and shredded my belt. When replacing this pulley do I need to remove the fan in order to complete this repair? And what is the best way to remove the fan?
|
#2
|
||||
|
||||

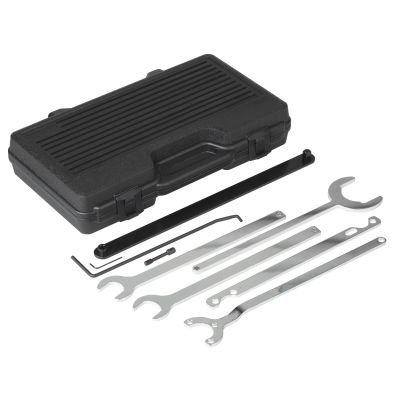

No, it's not necessary but it does make the job easier if you remove the fan. The fan pulley is held still by a tool over three of the four bolts that hold it on, while loosening the 36mm nut on the fan clutch.
__________________
1980 500SE/AMG Euro 1981 500SEL Euro 1982 380SEL 1983 300TD 1983 500SEC/AMG Euro 1984 500SEC 1984 300TD Euro 1986 190E 2.3-16 1986 190E 2.3 1987 300D 1997 C36 AMG 2003 C320T 4matic past: 1969 280SE 4.5 | 1978 240D | 1978 300D | 1981 300SD | 1981 300SD | 1982 300CD | 1983 300CD | 1983 300SD | 1983 380SEC | 1984 300D | 1984 300D | 1984 300TD | 1984 500SEL | 1984 300SD | 1985 300D | 1986 300E | 1986 560SEL | 1986 560SEL/Carat | 1987 560SEC | 1991 300D 2.5 | 2006 R350 |
#3
|
|||
|
|||
There was a pulley recall, at least on the E320 see if you qualify
|
