  #1
Old 09-21-2008, 02:20 PM
Registered User

Join Date: Feb 2004
Posts: 6
Power Head Rest Switch

I have a 1991 300E, the driver side power head rest decided to take a break from work. I think the problem is the switch since it feels slightly different than the passenger side switch now. How do you remove the switch panel on the door without making a mess of it?

I would also like to remove and clean or replace the window switch but have not been able to locate the procedure for this.

Thanks

Reply With Quote
  #2
Old 09-21-2008, 02:48 PM
Registered User

Join Date: Feb 2004
Location: Walnut Creek, CA & 1,150 miles S of Key West
Posts: 4,874
Try some spray on electrical contact cleaner first.
__________________
Terry Allison
N. Calif. & S. of Key West

09' E320 Bluetec 77k
Reply With Quote
  #3
Old 09-21-2008, 04:09 PM
compress ignite's Avatar
Drone aspiring to Serfdom

Join Date: Feb 2004
Location: 32(degrees) North by 81(degrees) West
Posts: 5,554
Switches

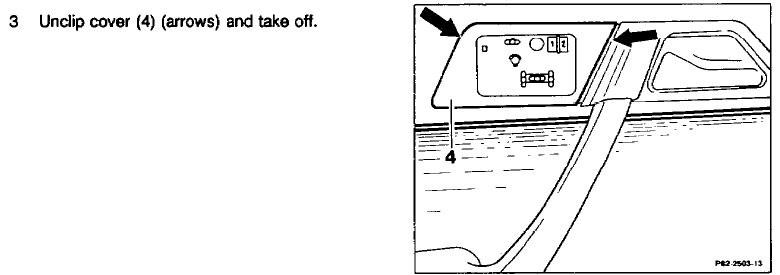

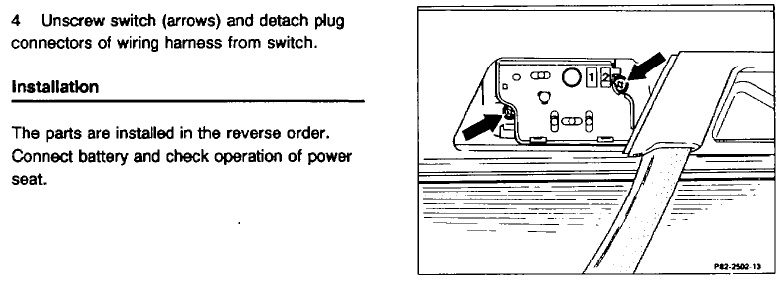

Power Seat Switch R+R (See Picto-grams Below):

Window Lift Switches (Console):
Pry up the front of the carpet in the tray under the Driver's Armrest ...remove the single Phillips screw...[Now look at the plastic surround inset into the wooden piece at the shifter...GENTLY using a small plastic spatula...pry it up
and off] ...lift the wooden console cover upwards from the back...Pivoting
forward 90 degrees (there are two plastic hooks that slide under the ashtray
piece [On the front of the Console Cover]and you are pivoting the console cover so as not to break them.)
individual window switches may now be GENTLY pulled up and out.
Attached Thumbnails
Power Head Rest Switch-screenhunter_01-sep.-21-14.58.gif   Power Head Rest Switch-screenhunter_02-sep.-21-14.59.gif   Power Head Rest Switch-screenhunter_03-sep.-21-14.59.gif
__________________
'84 300SD sold
124.128
Reply With Quote
  #4
Old 09-21-2008, 04:24 PM
Registered User

Join Date: Feb 2004
Posts: 6
Thanks, that will be tomorrow mornings project.
Reply With Quote
  #5
Old 09-21-2008, 04:56 PM
Hirnbeiss's Avatar
ich fahre, also bin ich

Join Date: Mar 2002
Location: South Florida
Posts: 1,653
However, I will put odds on the weak link: the plastic pinion inside the seatback. To get access to that you need to take the seatback off. Procedure is buried somewhere in the forum. You can get a replacement part for 30-40 bucks, but judicious wrapping with duct tape solved my problem.

__________________
Prost!
Reply With Quote
