I installed a Meyle and it was too short. I then got a Mercedes brand and that one too was too short. All vendors have assured me that those bushings are for the correct application and fit. Do you think I have one of a kind suspension bearing for my W126?

Notice how the rubber never reaches the outer edge


At least 5 mm of clearance


Notice the difference in height between the new and old


The inner metal ring is the same height though.


The old one had thicker and wider upper and lower lips





What is it that I am doing wrong? Those vendors are reputable but I am known for my flakiness so I know I am doing something wrong. Help!

you seem to be doing everything right but it seem that t he part isn't the correct size. I think it will be OK the way it is though.

__________________
1985 300TD Turbo Euro-wagon
1979 280CE 225,200 miles
1985 300D Turbo 264,000 miles
1976 240D 190,000 miles
1979 300TD 220,000

GONE but not forgotten
1976 300D 195,300 miles
1983 300D Turbo 175,000 miles

http://i42.photobucket.com/albums/e3...e485-1-2-1.jpg

Notice that I didn't remove the other bushing because the new one for that side is short too. These bushings have the correct part number and the vendors swear that they are compatible.
Remember that the short end where the rubber isn't reaching the end of the "dogbone" is what goes against the chassis. I would hate to install it with no rubber in between. This will also allow splashes of water to reach from the top and corroding stuff while pooling in this ill designed groove. That will destroy the chassis at that point and no wonder I have seen many pictures of people with that area shot to hell. Once there is nothing to grab there you might as well scrap the car unless you weld in a whole new chassis rail in place.

thats correct!!! Those are the incorrect bushings..

whats the part #

__________________
1985 300TD Turbo Euro-wagon
1979 280CE 225,200 miles
1985 300D Turbo 264,000 miles
1976 240D 190,000 miles
1979 300TD 220,000

GONE but not forgotten
1976 300D 195,300 miles
1983 300D Turbo 175,000 miles

http://i42.photobucket.com/albums/e3...e485-1-2-1.jpg

Please do!

whats the part # you have

I found

front:
126 333 54 14

Rear
126 333 33 14

__________________
1985 300TD Turbo Euro-wagon
1979 280CE 225,200 miles
1985 300D Turbo 264,000 miles
1976 240D 190,000 miles
1979 300TD 220,000

GONE but not forgotten
1976 300D 195,300 miles
1983 300D Turbo 175,000 miles

http://i42.photobucket.com/albums/e3...e485-1-2-1.jpg

I will have to go to my workshop in the basement. I will post part# later this evening.

According to the MB EPC, those are the "bearing" numbers for a 126045 SEC and a 126039 SEL. Those are the right part numbers.

I'd bolt them in and fuggetaboutit.

Mike R.

__________________
There is a very fine line between "hobby" and "mental illness."
FrankenBenz: '87 560SEC with an '02 cammed LS6 and custom 4L60E.
Bling: '87 560SEC, ported/polished, lowered
Lisa: '87 560SEL, lowered

Those are the same part numbers. I just can't accept the fit!

well if thats what the dealer gave you then just put them in.

__________________
1985 300TD Turbo Euro-wagon
1979 280CE 225,200 miles
1985 300D Turbo 264,000 miles
1976 240D 190,000 miles
1979 300TD 220,000

GONE but not forgotten
1976 300D 195,300 miles
1983 300D Turbo 175,000 miles

http://i42.photobucket.com/albums/e3...e485-1-2-1.jpg

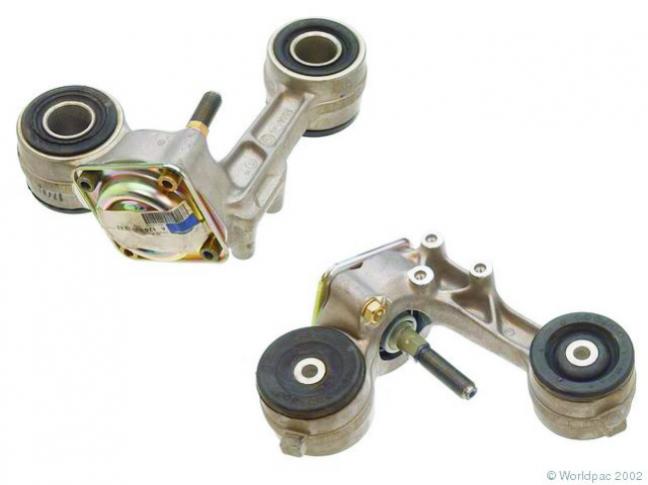

Looking at Greg's AMG picture on BenzWorld, it doesn't have any rubber sticking out of the top of the dogbone and there is a small (1/8"?) space between the aluminum dogbone and the chassis steel. As you know, if there is a space there, then the rubber can let the "bearing" steel core move in relationship to the dogbone aluminum casting, which is all that is supposed to be happening.

Wish I was home, I could measure some for you, but I'm in southern AZ. FYI, the picture is a factory picture from somebody's parts web site. It shows the rubber about level with the top of the dogbones.

Attached Thumbnails



__________________
There is a very fine line between "hobby" and "mental illness."
FrankenBenz: '87 560SEC with an '02 cammed LS6 and custom 4L60E.
Bling: '87 560SEC, ported/polished, lowered
Lisa: '87 560SEL, lowered

If I could get it leveled then I will accept that but until then I think something is wrong.

The last time I did something like that I managed to:
1. break a strut tower on my 190E... Brand new! When I ordered another set, the fit was different and it has been in the car ever since.
2. Not getting a good seal between the cat converter and the exhaust manifold on the 190E after I was told it should fit but to this day the car howls when I pass 50 mph.
3. Do you want me to list what I was told I should install in the 190E to make it not stall? Yeah, it's still stalling!

Yesterday when I took the dogbone to an independent Benz shop to press a new bushing that ended up too short as well he proposed that for $1,000 he will redo my suspension bearing and include a diagnosis on the 190E. What do you think?

I think the guy is trying to take you.

Give me a call if you'd like. I'm in AZ and it's only 7:30pm.

Mike 702
494-8056

__________________
There is a very fine line between "hobby" and "mental illness."
FrankenBenz: '87 560SEC with an '02 cammed LS6 and custom 4L60E.
Bling: '87 560SEC, ported/polished, lowered
Lisa: '87 560SEL, lowered

Thanks Mike, it was nice talking to you on the phone!
