JamesDean · #1 09-05-2009, 03:29 PM

Hey everyone,

First off:
1993 190E 3.0
Front: 94 E420
Rear : 96 SL600
500E Master
SS Lines / ATE SuperBlue...

Now: My situation is: the brake pedal feels softer than I remember it being when I first bought the car...The brakes dont seem to engage very high in the pedal stroke...they seem to engage about somewhere after 1/4 pedal or half pedal. In situations where I need to stop I usually go down to 3/4 pedal and ease up to half pedal.

When I first bought the car it had the stock 190E 2.6 master on it, it died about a year later so I opted to put the 500E master on as it was actually cheaper than the 190E one...

Now, my 300SD's--which has a new master and new front calipers--pedal feels MUCH more firm (allbeit less powerful) than my 190's...

I'm not really sure if I'm describing the whole thing as accurately as I can..

I've bled all 4 corners via the 2 man method. I even bought a power bleeder and used nearly three quarts on a full bleed of the system...

I put on new rotors this past spring, PBR rotors to be exact.

If anyone can help me out I'd appreciate it. I'm not really sure what the problem could be...

slk230red · #2 09-05-2009, 03:37 PM

The only time I've ever experienced what you are describing, besides being a defective master cylinder or air in the brake lines, is when one of my front pads wasn't properly seated in the caliber assembly. The brake pedal had too much travel after bleeding the brakes.
Upon further inspection I found the problem, replaced the pads, and since then the brake pedal has very little travel.

JamesDean · #3 09-05-2009, 03:43 PM

Hm...

I'm fairly certain they are seated properly. I just put in a new set today (textar)...

Perhaps there is still air in the system or the master is defective, its been like this since it was install in early 07 though...so perhaps air?

If it is air..I'm not sure how to go about removing it, I've done the powerbleeder method used a few quarts of fluid too. Is there anything special one needs to do to bleed a car with ABS?

slk230red · #4 09-05-2009, 03:52 PM

Quote:

Originally Posted by JamesDean

Hm...

I'm fairly certain they are seated properly. I just put in a new set today (textar)...

Perhaps there is still air in the system or the master is defective, its been like this since it was install in early 07 though...so perhaps air?

If it is air..I'm not sure how to go about removing it, I've done the powerbleeder method used a few quarts of fluid too. Is there anything special one needs to do to bleed a car with ABS?

Nothing special, I use a Mighty Vac and it works great for bleeding brakes. I've used it on my MB's and Corvette.

JamesDean · #5 09-05-2009, 03:55 PM

I've got one of those guys. Used it when I first flushed the system. I'm pondering using it today to try to get this air out of the system and if there is any special bleed point for the ABS block.

slk230red · #6 09-05-2009, 04:00 PM

Quote:

Originally Posted by JamesDean

I've got one of those guys. Used it when I first flushed the system. I'm pondering using it today to try to get this air out of the system and if there is any special bleed point for the ABS block.

Not that I'm aware of, I just start with the furthest wheel and work my way to the front. Make sure you shut the bleeder screw before the vacuum goes all the way down and keep the reservoir full.

Good luck,

Dave

Chas H · #7 09-07-2009, 10:55 PM

Quote:

Originally Posted by JamesDean

Hm...

I'm fairly certain they are seated properly. I just put in a new set today (textar)...

Perhaps there is still air in the system or the master is defective, its been like this since it was install in early 07 though...so perhaps air?

If it is air..I'm not sure how to go about removing it, I've done the powerbleeder method used a few quarts of fluid too. Is there anything special one needs to do to bleed a car with ABS?

Have you properly bedded in the new pads? Your symptoms suggest you have not.

Yak · #8 09-08-2009, 10:59 AM

I'm confused. What work was done that started the problem? Did you begin to feel mushiness/travel and decided to change the fluid, or some repair that then resulted in mushiness/travel? Or a preference for the firm feel in the 300SD? You say it's been mushy since '07?

Can you clarify your system - the car is a 190E 2.6 or 3.0? The MC is from a 500E, the front calipers are from an E420 and the rears are from an SL600? And you've got stainless lines on it? And you've pumped 'quarts' of fresh fluid through it?

I had SS lines on an Audi I owned and started getting a mushy pedal and more travel when the lines were about to fail. SS are great when new and fresh - excellent feel, firm pedal - but they wear out just like rubber lines.

But - if I understand your system correctly and the symptoms have been around since '07 - I'd guess that the mixing of components has a lot to do with the lack of feel and pedal travel. You may simply need 1/2 travel to pump enough fluid through the calipers to engage the brakes.

JamesDean · #9 09-08-2009, 01:22 PM

edit

JamesDean · #10 09-08-2009, 01:23 PM

Sorry I've not replied in a few days, havent been in front of a Pc that much..

Alright.

Quote:

Jimmy,

How old are yours?
Are they "Rubber" or Stain-Less Steel braid with a Teflon inner liner?

When you step on the brake pedal with the engine running ,do the Brake Hoses
"Bulge" visibly?

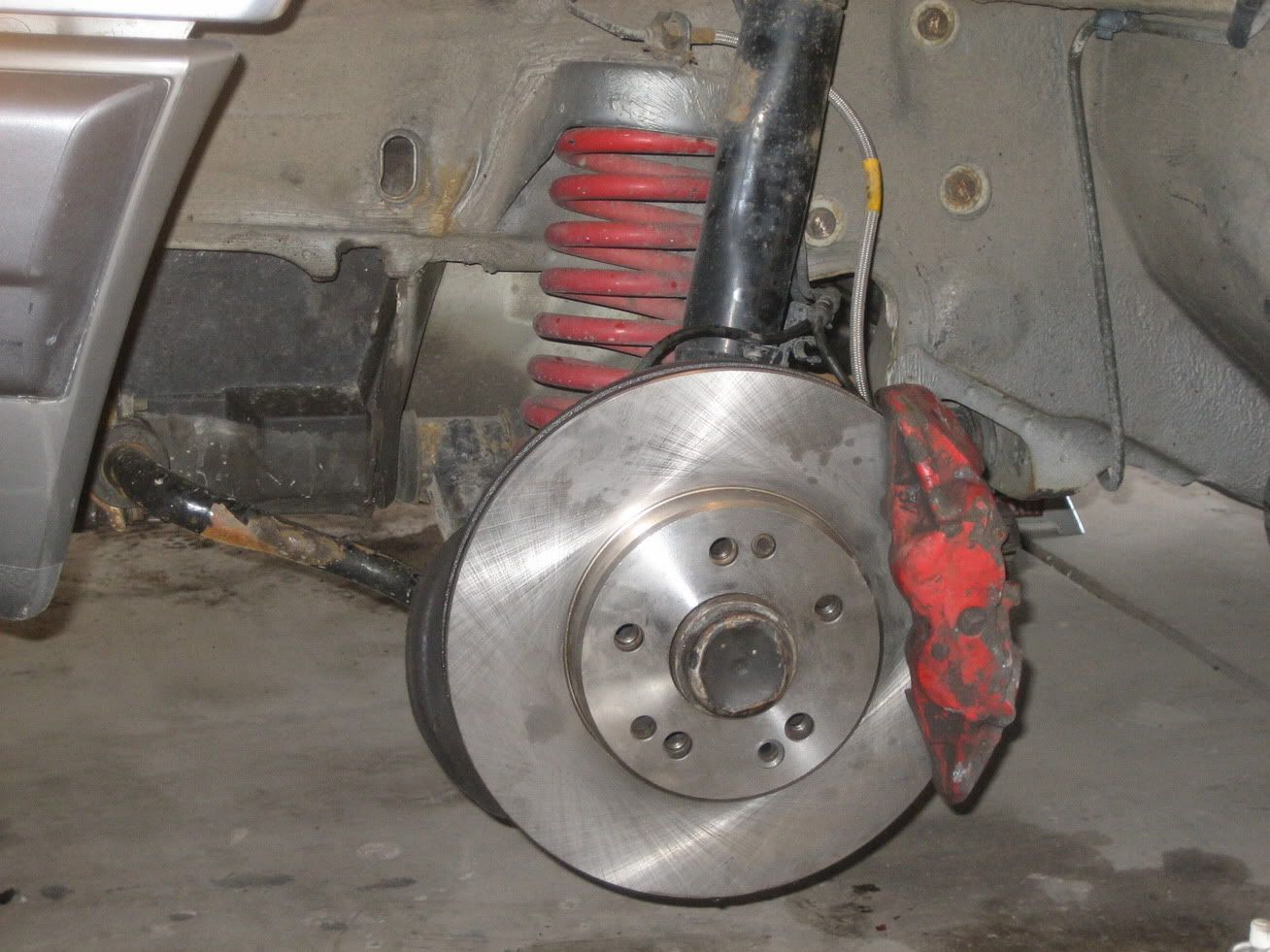

My lines are in fact stainless steel. Here is a Pic of the front setup. Its a bit dirty/rusty up there..I do live in the rustbelt after all...that pic was from 3/2009 when I put new rotors/pads on...

As to the "bulge" visible..I'll have to get back to you on that...

http://i98.photobucket.com/albums/l250/MafiaNicky/IMG_9005-1.jpg

Quote:

Have you properly bedded in the new pads? Your symptoms suggest you have not.

What does that mean exactly? I've not heard of that before...maybe that is the cause...

Quote:

What started the problem?
I'm confused. What work was done that started the problem? Did you begin to feel mushiness/travel and decided to change the fluid, or some repair that then resulted in mushiness/travel? Or a preference for the firm feel in the 300SD? You say it's been mushy since '07?

I do have a preference for the firm feel of the SD...It has been mushy since the master cylinder was replaced in 07...

A combination of loud squaling from the pads and the fact that I had a set of brand new textar pads on my shelf has motivated me to actually fix the problem or atleast conduct research into it.

Quote:

Can you clarify your system - the car is a 190E 2.6 or 3.0? The MC is from a 500E, the front calipers are from an E420 and the rears are from an SL600? And you've got stainless lines on it? And you've pumped 'quarts' of fresh fluid through it?

the car is a 190E 2.6 with a 3.0L m103 in it. The 2.6 blew its head gasket at 215k and it was cheaper to drop in a 3L than to fix the 2.6

MC=500E
FRONT=E430
REAR=SL600
Stainless Lines

When I did the work in March I did pump a few quarts of Typ 200 fluid though it..almost 3 when I ended the process...

Quote:

But - if I understand your system correctly and the symptoms have been around since '07 - I'd guess that the mixing of components has a lot to do with the lack of feel and pedal travel. You may simply need 1/2 travel to pump enough fluid through the calipers to engage the brakes.

When I first bought the car in 2006 the brakes were nice and firm and it was the setup as I've described above, I didn't change anything with the exception of installing the 500E master cylinder....

THe pedal seems to get hard at time and apply the brakes high in the stroke real firmly and other times it'll get soft and I'll need to drop it down low to really apply them to stop..

Question: The check valve on the booster vac line..what are symptoms that it has gone bad? what exactly does it do?

-Thanks

Kris

JamesDean · #11 09-05-2009, 04:00 PM

what if my master cylinder was never bench bled?

slk230red · #12 09-05-2009, 04:07 PM

Quote:

Originally Posted by JamesDean

what if my master cylinder was never bench bled?

The air should work its way out. You could do it on the car if you have a helper. Pump the pedal and crack the lines (1 at a time) at the master. Be sure to use a rag around the fitting to contain the fluid so it doesn't spray.

JamesDean · #13 09-05-2009, 06:17 PM

alright, I bled the master, and all 4 calipers. starting with the master then the rears and etc...

Some air bubbles came out, maybe 3-5 per caliper, then i let it run for a but to see if any other bubbles came and nothing happened.

I didnt feel any substantial change in the pedal. There is still a bit of pedal travel before actual braking occurs...

compress ignite · #14 09-05-2009, 06:37 PM

CLEAN the top of the MC reservoir area, completely.
1. Get "New,Fresh,cheap,plastic turkey baster[tube with a bulb on the end]"
2. Remove master cylinder reservoir cap.
3.Remove the Filter Screen insert.
4.Evacuate all the Old Nasty BF you can with the "Turkey Baster"
(you will not be able to remove fluid from the rear portion of the reservoir)
5.Refill the MC reservoir with fresh clean (UNOPENED container) BF.
6.Attach the Pressure Bleeder cap to the MC reservoir and pressurize to 15PSI.
7.Using bleeder nipples with the appropriate "Catch Container",BLEED the brakes.

There are instructions in the search function on how to make a Pressure Brake Bleeder with a $9.95 garden sprayer from your favorite Big Box Store.

All this "Pumping" or "Directing an Assistant" or using a Mighty Vac to bleed
the brakes is 19th century...This can be a quick Solo 20 minute job every Spring or ....Masochism.

compress ignite · #15 09-05-2009, 06:40 PM

Jimmy,

How old are yours?
Are they "Rubber" or Stain-Less Steel braid with a Teflon inner liner?

When you step on the brake pedal with the engine running ,do the Brake Hoses
"Bulge" visibly?
