How-to: Disable alarm on a 1993+ W124

This is my write-up for those people who have a funky alarm like mine. I have been putting this off for a while now, but decided to tackle it since i had the cluster out for some other work....

The problem: alarm goes-on when i unlock the car from the driver's door.

Solution: Disable the alarm. You can try to fix it, but i understand it will cost a fortune, and too much of a headache for me. Besides, i don't need it !!!

Step 1: Disconnect the car battery so that the alarm does not go-off, or you get hit by an airbag while removing the cluster.

Step 2: Locate the alarm. In my case, it is under the passenger's feet. remove the floor mat and the foam-backed carpet piece. Unbolt the bolt holding the black plate in place. The alarm is the black box on the left with two big plugs going into it (second picture).





Step 3: Unplug those big plugs. On pre 1993 cars, this should be sufficient to disable the car. Not the case though for 1993+ cars as they have an immobilizer feature that is triggered when the alarm is disabled. so my car would not start after unplugging those two plugs.



Step 4: You have to find the relay with the name k38. It is located under the instrument cluster. by jumpering this relay, you will be able to by-pass the immobilizer, and have a fully functional car without the alarm. So proceed to removing the instrument cluster as seen below, that is the nastiest part of the job as that thing is tricky....in the picture, the cluster is removed



Step 5: Locate the k38 relay. it is in the upper left corner of the cluster space. it is shiny silver in color on my car....pull it out by hand- easy!!

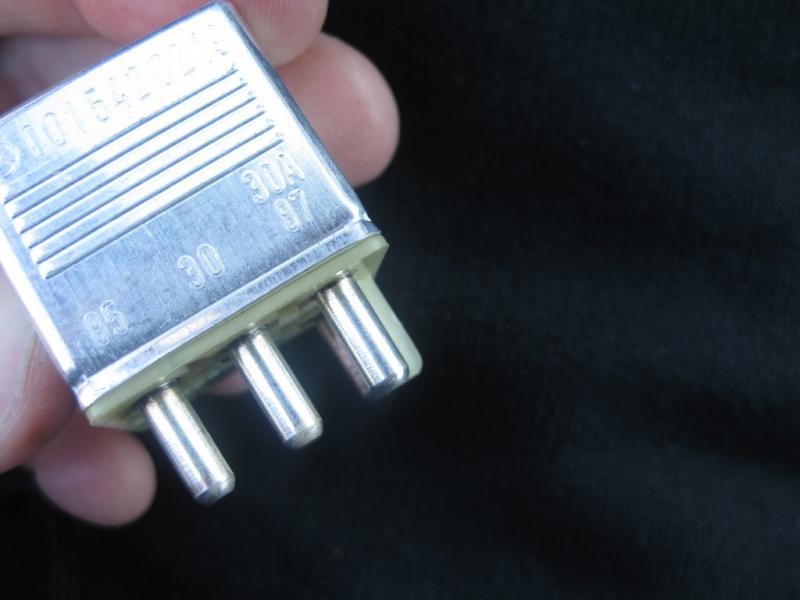

Step 6: in order to bypass the immobilizer feature, you need to jumper pins 30 and 87 on the relay, see the picture below. I ran a copper wire between the two pins. Make sure the wire is as flat as possible so that the relay seats properly





Step 7: put the relay back in place. connect the battery without tightening the terminal. try to start the car, if it starts, remove battery terminal and install cluster.

Step 8: tighten battery terminal, and enjoy your car with no annoying alarm !!!!! Easy job over all. the hardest part was removing the cluster.....

Good Luck, Thanks for the help with this guys!!!
Attached Thumbnails
How-to: Disable alarm on a 1993+ W124-img_3964.jpg   How-to: Disable alarm on a 1993+ W124-img_3965.jpg   How-to: Disable alarm on a 1993+ W124-img_3966.jpg   How-to: Disable alarm on a 1993+ W124-img_3967.jpg   How-to: Disable alarm on a 1993+ W124-img_3968.jpg

__________________
1993 300E, 2.8 M104 .....

Last edited by whunter; 01-21-2010 at 02:50 PM. Reason: attached pictures
Reply With Quote
  #2
Old 01-19-2010, 07:14 PM
mespe's Avatar
Unregistered Abuser

Join Date: Feb 2005
Location: Cleveland, Ohio
Posts: 1,573
Very nice description and pictures. the alarm was giving me a problem on my 400e, so I disconencted it and the car wouldn't start. I tapped the alarm module (you know like you used to tap the tv when the picture shrank, or got squiggly) and it's worked fine since then. (Probably just reseating the connector took care of the problem.)

I would imagine that jumpering the purple wire to the purble/green wire would accomplish the same thing. Now you can remove the relay and little the car up a little.

Or put a kill switch in by cutting the red wire and wiring to +12 via a toggle switch, or secondary key.

Which got me to thinking, why not find the wire coming out of the alarm that triggers the K38 relay? Tie it to ACC and be done. No need for cluster removal.
__________________
2001 E320 4matic - wife's car
1984 6.2 Diesel suburban = current truck
1987 190d 5 speed FUN
1987 300SDL = daughter drives
1967 250SL gone, but never forgotten
1993 400e - in need of viscous fan clutch and radiator
1980 280SLC In Process conversion to SL-LONG

mespe's eBay Listings
my eBay Guides (burning WVO in a diesel) <--- Please click the yes this guide is helpful button
Reply With Quote
  #3
Old 01-19-2010, 08:02 PM
latief's Avatar
1993 300E 2.8- M104

Join Date: Aug 2009
Location: Gainesville, FL
Posts: 518
Quote:
Originally Posted by mespe View Post
Very nice description and pictures. the alarm was giving me a problem on my 400e, so I disconencted it and the car wouldn't start. I tapped the alarm module (you know like you used to tap the tv when the picture shrank, or got squiggly) and it's worked fine since then. (Probably just reseating the connector took care of the problem.)

I would imagine that jumpering the purple wire to the purble/green wire would accomplish the same thing. Now you can remove the relay and little the car up a little.

Or put a kill switch in by cutting the red wire and wiring to +12 via a toggle switch, or secondary key.

Which got me to thinking, why not find the wire coming out of the alarm that triggers the K38 relay? Tie it to ACC and be done. No need for cluster removal.
I had the cluster out since my odometer was not working, fixed both at the same time...

I liked to do it this way in case the next owner decides to fix the alarm correctly...if i it gives me trouble, i will make it more permanent...The reason for this write-up is to document in pictures the wonderful advice given to me here, and to help some other people also who might be unsure about how to do this

This thread is where i got the info from, this is such a great forum..
95 E320 - Alarm goes off for no reason

Special thanks to Kestas and others for their help on this
Attached Thumbnails
How-to: Disable alarm on a 1993+ W124-img_3969.jpg   How-to: Disable alarm on a 1993+ W124-img_3970.jpg   How-to: Disable alarm on a 1993+ W124-img_3972.jpg
__________________
1993 300E, 2.8 M104 .....

Last edited by whunter; 01-21-2010 at 02:52 PM. Reason: attached remaining pictures from post 1
Reply With Quote
  #4
Old 01-20-2010, 10:24 AM
I told you so!

Join Date: Jun 2002
Location: Motor City, MI
Posts: 2,731
Note that for the 94-95 cabriolet, the alarm unit (ATA) is accessed from the trunk and located in the left rear fender well, behind the trim.
Reply With Quote
  #5
Old 01-20-2010, 05:32 PM
73Elsinore's Avatar
'93 300E 2.8

Join Date: Nov 2004
Location: People's Glorious Revolutionary Democratic Socialist Collective of Kalifornia
Posts: 108
Awesome latief, you da man. What was the problem with the odometer?

Also - I do believe that one cause of the alarm problem you are having is the vacuum door lock actuator. I have the same alarm problem you do but mine is intermittent. My door lock vacuum actuator is dodgy anyway so I am replacing that first and then we'll see if that fixes the alarm.

Once you get your trans fixed, with all this other stuff you've done, your car should be in pretty fine fettle
Reply With Quote
  #6
Old 01-20-2010, 06:05 PM
PanzerSD's Avatar
Schießenstern

Join Date: Jan 2006
Location: Saskatchewan Canada
Posts: 2,345
Quote:
Originally Posted by latief View Post
Last time I jumped a relay like that I had a fire
__________________

____________________________
FACEBOOK:
PANZER450
Reply With Quote
  #7
Old 01-20-2010, 06:18 PM
latief's Avatar
1993 300E 2.8- M104

Join Date: Aug 2009
Location: Gainesville, FL
Posts: 518
Quote:
Originally Posted by PanzerSD View Post
Last time I jumped a relay like that I had a fire
So you think i will be in trouble? I could not think of any other way to do it....
__________________
1993 300E, 2.8 M104 .....
Reply With Quote
  #8
Old 01-20-2010, 06:23 PM
latief's Avatar
1993 300E 2.8- M104

Join Date: Aug 2009
Location: Gainesville, FL
Posts: 518
Quote:
Originally Posted by 73Elsinore View Post
Awesome latief, you da man. What was the problem with the odometer?

Also - I do believe that one cause of the alarm problem you are having is the vacuum door lock actuator. I have the same alarm problem you do but mine is intermittent. My door lock vacuum actuator is dodgy anyway so I am replacing that first and then we'll see if that fixes the alarm.

Once you get your trans fixed, with all this other stuff you've done, your car should be in pretty fine fettle
My door actuator seems to be working fine, ever since i got the car the alarm will go off if i unlock the driver's door. not any more...

Hopefully, it will not catch fire as Panzer said,

The Odometer stopped working for a day after i reset the trip repeatedly while driving. i did not get the memo about not doing that

thanks,
__________________
1993 300E, 2.8 M104 .....
Reply With Quote
  #9
Old 01-20-2010, 10:34 PM
PanzerSD's Avatar
Schießenstern

Join Date: Jan 2006
Location: Saskatchewan Canada
Posts: 2,345
Well, in my instance, I was powering lights, so there was alot of current, I imagine with an alarm system there wouldn't be much current. and I see it's the 30x pins jumped, that shouldn't be trouble some, just eliminates the NO/NC functioning.
__________________

____________________________
FACEBOOK:
PANZER450
Reply With Quote
  #10
Old 01-20-2010, 10:58 PM
latief's Avatar
1993 300E 2.8- M104

Join Date: Aug 2009
Location: Gainesville, FL
Posts: 518
Quote:
Originally Posted by PanzerSD View Post
Well, in my instance, I was powering lights, so there was alot of current, I imagine with an alarm system there wouldn't be much current. and I see it's the 30x pins jumped, that shouldn't be trouble some, just eliminates the NO/NC functioning.
Thanks, that is a relief
__________________
1993 300E, 2.8 M104 .....

Last edited by latief; 01-21-2010 at 08:46 AM.
Reply With Quote
  #11
Old 01-21-2010, 04:05 AM
Registered User

Join Date: Jul 2009
Posts: 237
What's wrong with resetting the trip meter while moving? I didn't get that memo either.
Reply With Quote
  #12
Old 01-21-2010, 04:48 AM
Registered User

Join Date: May 2007
Location: Arizona
Posts: 748
Quote:
The Odometer stopped working for a day after i reset the trip repeatedly while driving. i did not get the memo about not doing that
How did you fix the odometer? Mine is inop too. Do they break in a common place? BTW, that's great info on the alarm. Thanks.
__________________
1993 400E, 256,000 miles (totaled)
1994 E420, 200,000+ miles
1995 E420, 201,000 miles
Reply With Quote
  #13
Old 01-21-2010, 06:45 AM
Registered User

Join Date: Jan 2004
Location: Jacksonville, FL
Posts: 471
Quote:
The problem: alarm goes-on when i unlock the car from the driver's door.

Solution: Disable the alarm. You can try to fix it, but i understand it will cost a fortune, and too much of a headache for me. Besides, i don't need it !!!
If the alarm won't disarm at any given door the problem is most likely the alarm switch installed in the door (pn A0028201010 for the left door of the W124 E320). However, the switch does list for $177 (ouch). Mark
Reply With Quote
  #14
Old 01-21-2010, 08:42 AM
latief's Avatar
1993 300E 2.8- M104

Join Date: Aug 2009
Location: Gainesville, FL
Posts: 518
Quote:
Originally Posted by long-gone View Post
What's wrong with resetting the trip meter while moving? I didn't get that memo either.
If you push the trip reset while moving, you risk something coming loose in there especially as the car ages....apparently, the cog responsible for both odometer and trip meter pushes itself out of place

See here....

http://www.benzworld.org/forums/w124-e-ce-d-td-class/1495093-odometer-not-working-question-picture.html
