#16
|
|||
|
|||
Quote:
__________________
1996 E320 since 1/16/08, 171K miles as of Feb 2011 --------------------------------------------------------- 1989 300CE - R.I.P. Dec 29 2007 Other MBs (sold): 1992 300E-24 - 1979 350SLC - 1984 230E - 1990 300CE |
#17
|
||||
|
||||
Wiring for the 4 to 5 pin connector
I sell many outside temp displays on Ebay and occasionally come across an individual that needs to convert from a 4 pin connector to a 5 pin.
The diagram I found somewhere on this forum indicates as follows: Wire color position usage brown 1 ground(and temp sensor ground) grey/blue 2 circuit 58D from x6/1(illumination) green 3 temperature sensor(signal) ----- 4 not used black violet 5 circuit 15 hot(color may vary) I hope this helps some. Dan(cdplayer) |
#18
|
|||
|
|||

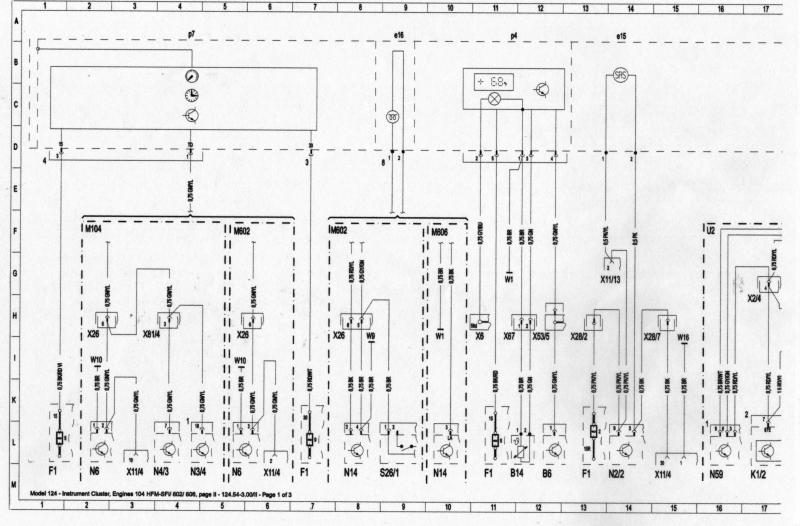

Here's a schematic for a late E320.
|
#19
|
|||
|
|||
Quote:
pin 1: ground, OK pin 2: nothing when head light is off and instruments backlight is off; 11.98V when turning lights on. OK pin 3: nothing displayed for sensor signal pin 4: 12V permanent ??? for what? pin 5: 12V permanent. OK The power supply is OK, that means both my display units seem broken, what a bad luck!
__________________
1996 E320 since 1/16/08, 171K miles as of Feb 2011 --------------------------------------------------------- 1989 300CE - R.I.P. Dec 29 2007 Other MBs (sold): 1992 300E-24 - 1979 350SLC - 1984 230E - 1990 300CE Last edited by Texholdem; 01-30-2010 at 09:53 PM. |
#20
|
|||
|
|||
Thanks, this time I was looking for my W124 300CE. I saved that info for my other ride E320 for later use.
__________________
1996 E320 since 1/16/08, 171K miles as of Feb 2011 --------------------------------------------------------- 1989 300CE - R.I.P. Dec 29 2007 Other MBs (sold): 1992 300E-24 - 1979 350SLC - 1984 230E - 1990 300CE |
#21
|
|||
|
|||
Sorry I wasn't more clear. That schematic is for a '95 W124 E320.
|
#22
|
|||
|
|||
Texholdem, it looks like same thing happened to me, tested outside sensor with resistor under fuse panel still no temp display. I also tested and got same voltage results to the pins behind the speedometer. I just received my ebay lcd display and it behaves the same as the one on the car. With car running or key in the on position, nothing on display ... they both also only illuminate when i turn on the parking lights etc .... When i first bought the car it would go up to the highest lcd temp + 136 i think, all the way down to the lowest temp, then shutoff ... did this behavior a few weeks and eventually stopped showing anything ... now I believe either both displays are bad, or both lcd displays are good and something else is the issue. Does anyone know would to bench test the display? I am leaning more towards the ebay unit i received is also bad too though .... i didn't check fuse yet, but i remember seeing on another post that the fuse is the same as the one for the turn signal and those work fine ... any suggestions before i have to deal with this ebay guy?
__________________
1994 E320, 145,000 miles |
#23
|
||||
|
||||
See Jeremy's reply (#2)
__________________
'84 300SD sold 124.128 |
#24
|
|||
|
|||
Thanx, compress ignite i saved the screen shot and will investigate further .... talked to the ebay seller and he said he has another display that he will test 1st then send ... lets see
__________________
1994 E320, 145,000 miles |
#25
|
|||
|
|||
I'm having the same problem. It happened when I replace my alternator and serpentine belt. The backlight is fine. Earlier today the temperature gauge was reading 136+. So how did you fix the problem.
__________________
1995 E420 152k 1991 300D 2.5 348116 daily driver 1992 300E 2.6 196k-work in progress(head gasket) 2002 BMW 745Li 93k |
#26
|
|||
|
|||
I gave up after changing two display units without success. Situation exactly like lafooy described.
__________________
1996 E320 since 1/16/08, 171K miles as of Feb 2011 --------------------------------------------------------- 1989 300CE - R.I.P. Dec 29 2007 Other MBs (sold): 1992 300E-24 - 1979 350SLC - 1984 230E - 1990 300CE |
#27
|
||||
|
||||
You possibly damaged the wire from the sensor, which is mounted behind the front license plate.
__________________
Gone to the dark side - Jeff |
#28
|
|||
|
|||
not sure if what i am about to say is true or not but i'll say it. I am assuming that if the car is running and the outside temp display shows any number clearly, the sensor is the problem. Therefore, if nothing is displaying at all with the car on, the display is the problem.
__________________
1994 E320, 145,000 miles |
#29
|
|||
|
|||
Back to square one again. Got my 3rd lcd display today and again nothing ... all of this time wasted. going to look into replacing my sensor by the front license plate now. Should have realized it when pin 3 (sensor signal) was not showing any voltage
__________________
1994 E320, 145,000 miles |
#30
|
|||
|
|||
this update is mostly for texholdem ... i cut off the sensor today by the license plate and i am making progress! now when i go to start the car, display reads -36 for a few seconds and shuts off ... will replace the sensor and update this thread with results
__________________
1994 E320, 145,000 miles |
