#1
|
||||
|
||||
Bosch Mustang O2 sensor splice- anyone done this?

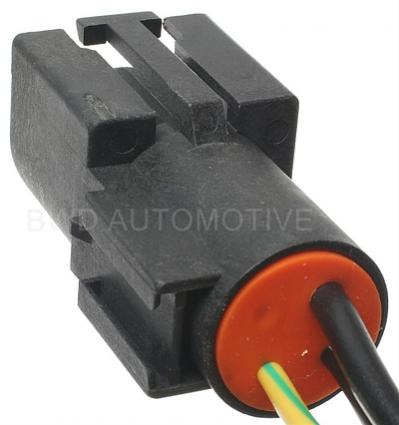

I'm going to try splicing in a '90 Mustang GT O2 sensor Bosch part# 13953 to save about $90 over the cost of an MB sensor. I have located the female connector for this(Ford part#AUVC927082-discontinued- found one at O'Reilly item #PT5690), and plan on soldering the plug end from the old sensor to this female connector so that future sensor changes can be plug 'n play. $40 for the sensor and $13.50 for the plug beats $145 for the correct MB sensor, especially since both sensors are identical save for the end plug. Has anyone done this? My question relates to how to determine which wires go where. If anyone has any experience relating to this procedure I'd be grateful for any knowledge- thanks.
__________________
'02 BMW 325i '85 300D 450k '93 190E 2.6 170k(killed by tree) '08 Ducati Hypermotard 1100S 6k '06 Ducati S2R800 14k(sold) |
#2
|
||||
|
||||
Correct MB sensor could be found on Amazon for 70ish....i was shocked when i found it at that price...check it out
__________________
1993 300E, 2.8 M104 ..... |
#3
|
|||
|
|||
second year and still working on my 300se with soldered on joints.
mak |
#4
|
||||
|
||||
Already got the O2 and the plug for $55 locally. $70 beats the hell out of $150 though, still.
mak - can you give some insight as to which wires get soldered to which? If I have to buy the correct sensor I will, but it doesn't seem like I absolutely have to. If I can make this work, then if I ever need a new one after this it will be a 5 minute $40 job.
__________________
'02 BMW 325i '85 300D 450k '93 190E 2.6 170k(killed by tree) '08 Ducati Hypermotard 1100S 6k '06 Ducati S2R800 14k(sold) |
#5
|
||||
|
||||
I bought my Mustang O2 sensor from Advance Auto for like $40
http://shop.advanceautoparts.com/webapp/wcs/stores/servlet/product_Oxygen-Sensor-Bosch_3486230-P_291_R%7CGRPEMISAMS_909552541___ 3-wire. Two white, one black. You should use the wiring on the existing Mercedes O2 sensor harness to do this as the black wire is the signal line and it connects to a coaxial green wire. So just match the colors up. It doesn't matter which white wire you solder to a white wire too. They are just heater lines.
__________________
Cruise Control not working? Send me PM or email (jamesdean59@gmail.com). I might be able to help out. Check here for compatibility, diagnostics, and availability! (4/11/2020: Hi Everyone! I am still taking orders and replying to emails/PMs/etc, I appreciate your patience in these crazy times. Stay safe and healthy!) 82 300SD 145k 89 420SEL 210k 89 560SEL 118k 90 300SE 262k RIP 5/25/2010 90 560SEL 154k 91 300D 2.5 Turbo. 241k 93 190E 3.0 235k 93 300E 195k |
#6
|
||||
|
||||
Thanks JamesDean, I got the Bosch Mustang O2 sensor for $39.99 as well. The mating connector was the extra $15 (actually $13.50 as I rounded up) because if I ever have to change the sensor out again I want to be able to just go out and buy another Mustang sensor without having to cut & resolder. Still a hell of a lot cheaper than going OEM.
