#1
|
||||
|
||||
Look!! 190-e Schematics
Greetings & Salutations

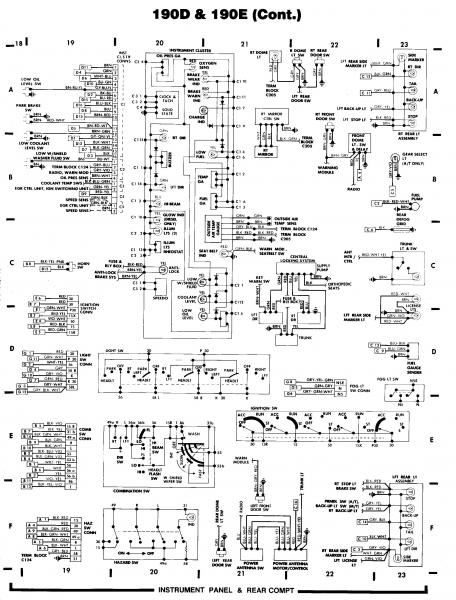

I have scanned in the wiring schematics from a “Motor” Professional Mechanics Manual from 1985. According to the manual and Bosch propaganda this schematic should be good for 1984 -through- 1987 190-Es. I scanned them in large and each individual Wiring diagram 1 -through- 5, look great imported into MicroShaft Publisher on 14” -by- 11” paper. Then use this Web Page for troubleshooting: www.importedcarparts.com/arts/mercedesArticles.html . Having decent schematics sure makes a difference compared to what the Haynes manual illustrates. Happy Troubleshooting Folks The Benz Sage Last edited by Benz sage; 02-09-2010 at 10:22 PM. |
#2
|
||||
|
||||

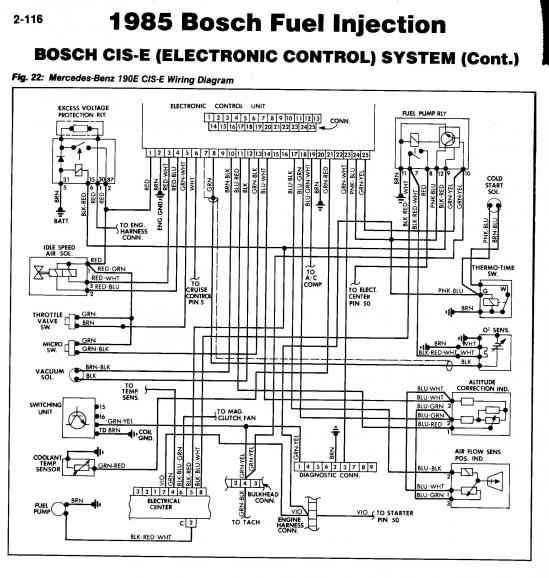

More jpegs
Here is more to print:
|
#3
|
||||
|
||||
Try this for larger images
http://s968.photobucket.com/home/Benz_Sage
Right Mouse click on each image and use "Save Picture As" function from menu. Then save these images to your computer's desk top or favorite form of storage. Benz Sage |
