Connector for ETA - and rewire

I will start this project soon (rewire the ETA). I read somewhere in the forum someone found a source (peachparts?) for the end connector of the harness.
If someone knows where to locate this source or connector please point me in the right direction.

Another couple of things, those of you who have rewired it before:
Did you replace the throttle body gasket?
How did you detach the ball from the linkage, does it just pops off?

Thanks.

__________________
1999 Porsche 996 Carrera Convertible
1994 420E - SOLD
1986 300E - SOLD, what a car
609 Certified
Reply With Quote
  #2
Old 07-12-2010, 11:55 PM
Registered User

Join Date: May 2007
Location: Arizona
Posts: 757
Check out this link.

O2 sensor electronics testing

There is also another link where someone with a V-12 rebuild his. http://v12uberalles.com/throttle_actuator_rewire.htm

I bought the ETA cable harness, but before I got around to replacing it, my car was totaled. I ended up giving the harness to the tech at the dealer who was dealing with a 500E with a bad ETA harness and an owner who was at the end of his rope throwing money at it. The ETA cable is not a part the dealer normally stocks. The tech had an even bigger problem because the ETA canon plug connector on the 500E was not the 90 degree type like mine. I'm not sure if he was successful in working around this. He said it was a good customer and was going to do what he could to keep him happy.

There is a paper-thin gasket for the ETA and a rubber boot as well. They should be changed but they are really cheap at the dealer.

Good luck and let us know how it went.
__________________
1993 400E, 256,000 miles (totaled)
1994 E420, 200,000+ miles
1995 E420, 201,000 miles
Reply With Quote
  #3
Old 07-13-2010, 05:26 AM
Knappy Drag Racer

Join Date: Jun 2008
Posts: 1,725
You guys know that the ETA plug design changed on 4.2s and 5.0s as a result of a running production change right? I don't know exactly when but it was for sure during 93 or 94. (My early 93 has the older style.)
Regards, Eric
__________________
89 300E "Benzer1" 15.924 Uncorrected
93 400E "Benzer3" 14.200 U.C.
95 E420 "Benzer4"
92 300E "Benzer5" 16.299 U.C. Future turbo CNG
87 300D "Benzer7"
87 300D "Benzer8"
87 300D "Benzer9"
87 300D/70 AMC Javelin "Sidewinder-Benzer"
87 300TD "Benzer11"
06 E320 CDI "Benzer12"
05 E320 CDI "Benzer12A"
71 AMC Javelin AMX 401 "Sidewinder"
74 AMC Hornet 401 "C.K.10" 13.63 U.C.
74 Bricklin SV1 "Presto" AMC 360 pwrd.
Reply With Quote
  #4
Old 07-13-2010, 06:28 AM
Registered User

Join Date: May 2007
Location: Arizona
Posts: 757
That sounds right because my early 93 400E had the 90-degree style canon plug and my 94 E420 has the straight style. I don't know if the ETA cable harness with the straight style is available as a separate part from Mercedes. You might have to take out the Q-tips and glue and rebuild it like the guy with the V-12 did.
Attached Thumbnails
Connector for ETA - and rewire-eta-plug.jpg
__________________
1993 400E, 256,000 miles (totaled)
1994 E420, 200,000+ miles
1995 E420, 201,000 miles
Reply With Quote
  #5
Old 07-13-2010, 10:02 AM
pesuazo's Avatar
Registered User

Join Date: Oct 2002
Location: Near Raleigh, NC
Posts: 580
Thanks guys.

The connector is not 90 degrees. It is a straight plug.

I just want to build the harness and have it ready before I remove the ETA from the car.

I wonder if they sell it at the dealer, since they used to sell the 90 degree type.

Does anyone knows the part number for the new one?

Or the part number for the connector?:
Attached Thumbnails
Connector for ETA - and rewire-dscf0032.jpg
__________________
1999 Porsche 996 Carrera Convertible
1994 420E - SOLD
1986 300E - SOLD, what a car
609 Certified

Last edited by pesuazo; 07-13-2010 at 01:52 PM.
Reply With Quote
  #6
Old 07-13-2010, 07:38 PM
Registered User

Join Date: May 2007
Location: Arizona
Posts: 757
I would be surprised if they sold the straight connector by itself. Otherwise this guy wouldn't have taken the effort to split the old connector and splice in a new harness.
__________________
1993 400E, 256,000 miles (totaled)
1994 E420, 200,000+ miles
1995 E420, 201,000 miles
Reply With Quote
  #7
Old 07-14-2010, 12:02 PM
pesuazo's Avatar
Registered User

Join Date: Oct 2002
Location: Near Raleigh, NC
Posts: 580
How did you detach the ball from the throttle linkage, does it just pop off?
__________________
1999 Porsche 996 Carrera Convertible
1994 420E - SOLD
1986 300E - SOLD, what a car
609 Certified
Reply With Quote
  #8
Old 07-14-2010, 12:13 PM
latief's Avatar
1993 300E 2.8- M104

Join Date: Aug 2009
Location: Gainesville, FL
Posts: 518
Quote:
Originally Posted by pesuazo View Post
How did you detach the ball from the throttle linkage, does it just pop off?
yes, just pops off.....
__________________
1993 300E, 2.8 M104 .....
Reply With Quote
  #9
Old 07-15-2010, 01:09 AM
Knappy Drag Racer

Join Date: Jun 2008
Posts: 1,725
Grease those sockets while it is apart.
Regards, Eric
__________________
89 300E "Benzer1" 15.924 Uncorrected
93 400E "Benzer3" 14.200 U.C.
95 E420 "Benzer4"
92 300E "Benzer5" 16.299 U.C. Future turbo CNG
87 300D "Benzer7"
87 300D "Benzer8"
87 300D "Benzer9"
87 300D/70 AMC Javelin "Sidewinder-Benzer"
87 300TD "Benzer11"
06 E320 CDI "Benzer12"
05 E320 CDI "Benzer12A"
71 AMC Javelin AMX 401 "Sidewinder"
74 AMC Hornet 401 "C.K.10" 13.63 U.C.
74 Bricklin SV1 "Presto" AMC 360 pwrd.
Reply With Quote
  #10
Old 07-16-2010, 03:54 PM
pesuazo's Avatar
Registered User

Join Date: Oct 2002
Location: Near Raleigh, NC
Posts: 580
Condition of wires in ETA

Job done, just look and the condition of the wires in the ETA harness.

No wonder the car would not be without an ASR-Limp mode condition.

LOL
Attached Thumbnails
Connector for ETA - and rewire-img00033-20100716-1119.jpg   Connector for ETA - and rewire-img00034-20100716-1120.jpg   Connector for ETA - and rewire-img00036-20100716-1121.jpg
__________________
1999 Porsche 996 Carrera Convertible
1994 420E - SOLD
1986 300E - SOLD, what a car
609 Certified
Reply With Quote
  #11
Old 07-16-2010, 06:17 PM
Registered User

Join Date: May 2007
Location: Arizona
Posts: 757
Did you reuse your old straight connector for the ETA cable?
__________________
1993 400E, 256,000 miles (totaled)
1994 E420, 200,000+ miles
1995 E420, 201,000 miles
Reply With Quote
  #12
Old 07-17-2010, 10:38 AM
pesuazo's Avatar
Registered User

Join Date: Oct 2002
Location: Near Raleigh, NC
Posts: 580
Will have to reuse, could not find a source
__________________
1999 Porsche 996 Carrera Convertible
1994 420E - SOLD
1986 300E - SOLD, what a car
609 Certified
Reply With Quote
  #13
Old 07-19-2010, 10:38 AM
pesuazo's Avatar
Registered User

Join Date: Oct 2002
Location: Near Raleigh, NC
Posts: 580

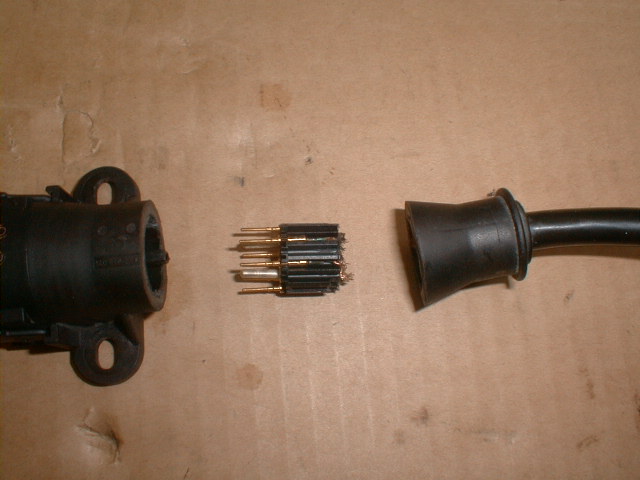

And by the way, I could not put it back together (the plug).

I used half of it, wrapped it in electrical tape and inserted it into the receptacle.

I wish I had found this pictures earlier. This is a much easier and clean way to do it.
Attached Thumbnails
Connector for ETA - and rewire-pic00003.jpg   Connector for ETA - and rewire-pic00004.jpg   Connector for ETA - and rewire-pic00015.jpg   Connector for ETA - and rewire-pic00016.jpg
__________________
1999 Porsche 996 Carrera Convertible
1994 420E - SOLD
1986 300E - SOLD, what a car
609 Certified

Last edited by pesuazo; 07-20-2010 at 11:44 AM.
Reply With Quote
  #14
Old 07-19-2010, 06:43 PM
Registered User

Join Date: May 2007
Location: Arizona
Posts: 757
Cutting it horizontally does appear to look easier than splitting it down the seam. Was the whole operation a success?
__________________
1993 400E, 256,000 miles (totaled)
1994 E420, 200,000+ miles
1995 E420, 201,000 miles
Reply With Quote
  #15
Old 07-20-2010, 11:44 AM
pesuazo's Avatar
Registered User

Join Date: Oct 2002
Location: Near Raleigh, NC
Posts: 580

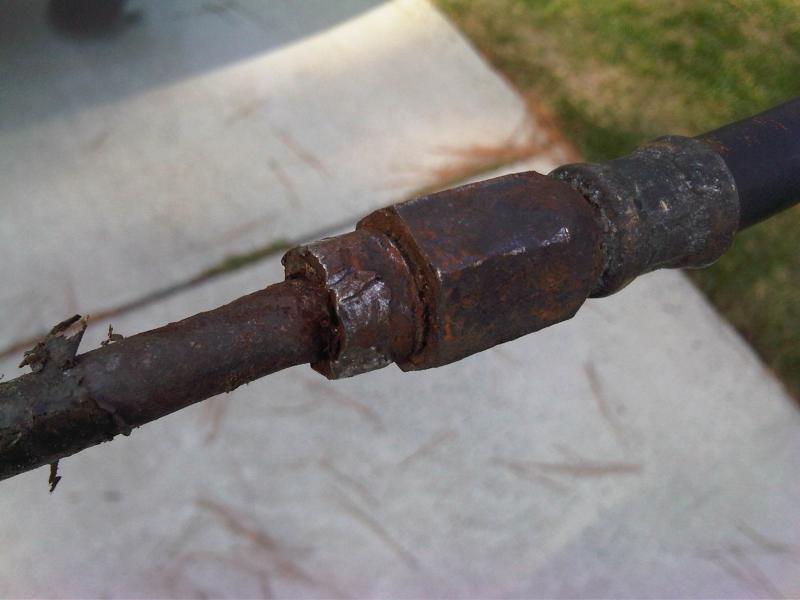

I will find out if it was a success once I finish replacing the fuel line and the starter.

The line from the filter to the engine cracked and started leaking badly.

I could not unscrew/separate the fuel line union (hose from filter to engine fuel line, it was rust welded).

I will update once it is completed.
Attached Thumbnails
Connector for ETA - and rewire-img00044-20100721-1724.jpg   Connector for ETA - and rewire-img00045-20100721-1725.jpg

__________________
1999 Porsche 996 Carrera Convertible
1994 420E - SOLD
1986 300E - SOLD, what a car
609 Certified

Last edited by pesuazo; 07-29-2010 at 09:10 AM.
Reply With Quote
