  #1
Old 08-12-2010, 11:43 AM
BB BB is offline
Registered User

Join Date: May 2001
Location: Australia Melboune
Posts: 58
Question W201 190e Altitude sensor location

Hi looking to find the altitude sensor on a 190E 89/90 model, I am told its behind the battery but had a good look around unable to locate. Fault code 8 comes up on diagnostic running rich. Car was originally just shutting down when driving all lights on dash come on, no power just silence. Found faulty distibutor cap and leaking fuel component, mechanic now at a loss to locate this altitude sensor . Can someone please help with this situation, perhaps a diagram or photo with location would be great. Many thanks in advance.
Attached Thumbnails

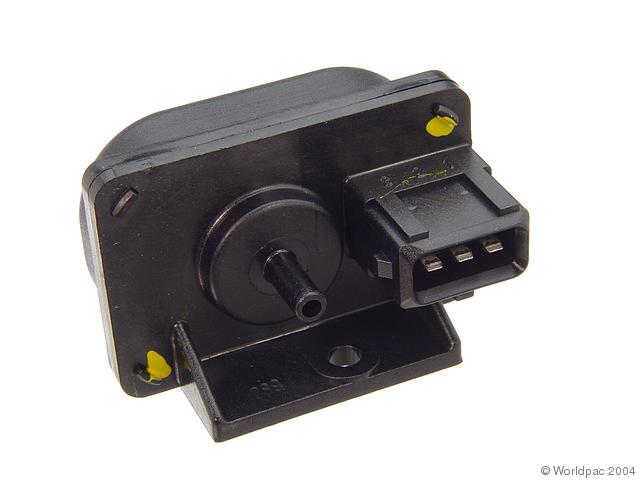

W201 190e Altitude sensor location-c601512876bos.jpg
__________________
BB
W123 280Te 1982 Modified & still going
W210 190E 1990 (Wifes Car)
W116 350 se sold
W116 280 se sold
Reply With Quote
  #2
Old 08-12-2010, 12:11 PM
slk230red's Avatar
WECO Installer

Join Date: Jul 2006
Location: Tampa, FL
Posts: 797
Try this, should be B18 location if you have one.
Attached Files
File Type: pdf 190E Component Layout.pdf (209.6 KB, 335 views)
File Type: pdf 190E Componet Layout 2.pdf (64.7 KB, 186 views)
__________________

1993 190E 2.3
2001 SLK230
1971 LS5 (454) Corvette Convertible
Reply With Quote
  #3
Old 08-12-2010, 12:16 PM
BB BB is offline
Registered User

Join Date: May 2001
Location: Australia Melboune
Posts: 58
Thanks slk red

Many thanks for that will forward info to my mechanic in the morning (Here in Australia now 1.00am)
__________________
BB
W123 280Te 1982 Modified & still going
W210 190E 1990 (Wifes Car)
W116 350 se sold
W116 280 se sold
Reply With Quote
  #4
Old 08-12-2010, 10:38 PM
mak mak is offline
mark

Join Date: Jul 2006
Location: Westfeld .
Posts: 687
copmonent location 126

Quote:
Originally Posted by slk230red View Post
Try this, should be B18 location if you have one.
i require a location pdf for my 300SE. is there one on 126 CD ?
thanks
mak
Reply With Quote
