#1
|
||||
|
||||
Needs some E320 parts identified
I looked through the FSM but can't figure out where these go. The PO or his "mechanic" friend left them by the strut top...
__________________
'88 300TE, 175k, black RENNTech 3.6L Recaro C's AMG 1 SOLD '92 500E, 110k, Spruce green, stock SOLD '94 E320 Cabriolet, 130k, E500 wheels, Emerald green SOLD '94 E320 Cabriolet, 110k, black, stock, SOLD '88 300TE, 229k, dark grey, SOLD '90 300CE, 212k, white, new paint, SOLD '91 300E, 209k, white, rebuilt head SOLD '74 914-6, grey, 2.7L 325hp twin turbo Audi conversion |
#2
|
|||
|
|||

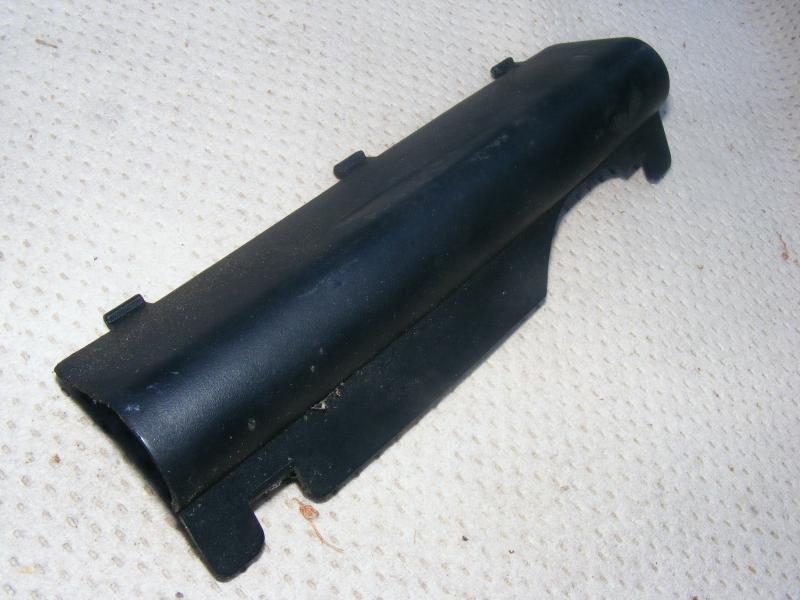

The 1st one looks like a wiring harness guide at the firewall.
Are there any part numbers??
__________________
MERCEDES Benz Master Guild Technician (6 TIMES) ASE Master Technician Mercedes Benz Star Technician (2 times) 44 years foreign automotive repair 27 Years M.B. Shop foreman (dealer) MB technical information Specialist (15 years) 190E 2.3 16V ITS SCCA race car (sold) 1986 190E 2.3 16V 2.5 (sold) Retired Moderator |
#3
|
||||
|
||||
Quote:
The 1st one is 124 821 00 89. I just checked the EPC. I see matching 3 square indentations on the firewall insulation panel I just installed but no way to attach it. I looked at the wiring harness wiki and it's not shown. The second one is 94.508.50.037, nothing in the EPC even removing the dots. I'm pretty sure it's the base for the blower motor but don't know how it could work without it unless it was a spare. It has a channel that looks where the metal mounting band would attach.
__________________
'88 300TE, 175k, black RENNTech 3.6L Recaro C's AMG 1 SOLD '92 500E, 110k, Spruce green, stock SOLD '94 E320 Cabriolet, 130k, E500 wheels, Emerald green SOLD '94 E320 Cabriolet, 110k, black, stock, SOLD '88 300TE, 229k, dark grey, SOLD '90 300CE, 212k, white, new paint, SOLD '91 300E, 209k, white, rebuilt head SOLD '74 914-6, grey, 2.7L 325hp twin turbo Audi conversion |
#4
|
|||
|
|||
well if everything is in proper running order and there is nothing misplaced on the harness,id think maybe they were left over parts that were replaced,and someone left them there instead of trashing them,but dont throw them ut,leave em in your glove box,cuz that one day when it all clicks,you will be reaching for them.
|
