Transmission Terminology

Hi:

A few years ago, I had my 380 SEL serviced and the shop did something to the gear shifter to make it more stiff. When I brought it in it felt like the shift was going to slip from one gear to another. (i.e. It felt like it didn't want to stay in R or N or D etc...)

The shop said they did something with a "kit". I really didn't understand or know what they did.

Can someone help explain to me what was wrong, what "kit" they must have put in, and if its an easy fix. I'd like to try and put this "kit" into the new 320.

Thanks,
Brad.

__________________
Dr. Brad

2003 C320 4Matic Station Wagon
2002 C240 Elegance
1982 380 SEL Star Certified
Reply With Quote
  #2
Old 12-09-2010, 05:10 AM
Registered User

Join Date: Aug 2002
Location: Southeastern PA
Posts: 3,035
Brad, I suspect the shop replaced the bushings on the shifter linkage.
__________________
Fred Hoelzle
Reply With Quote
  #3
Old 12-09-2010, 06:35 AM
JimFreeh's Avatar
Benz addict

Join Date: Mar 2007
Location: Hampton Roads, Virginia
Posts: 3,353
Quote:
Originally Posted by Ferdman View Post
Brad, I suspect the shop replaced the bushings on the shifter linkage.

Most likely, there are two nylon bushings on the shift linkage.

When these fall out, the shifter will move back and forth without changing gear selection, i.e., "play".

Jim
__________________
14 E250 BlueTEC black
94 E320 Cabriolet Emerald green
85 300TD 4 spd manual dark blue
Reply With Quote
  #4
Old 12-09-2010, 03:05 PM
Registered User

Join Date: Jan 2006
Posts: 94
Thanks. I've been researching, but can't find anything about the bushings.

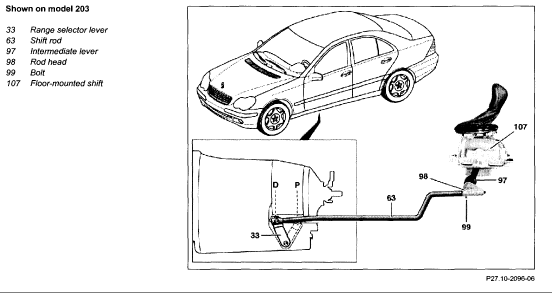

All I've found was a reference about tightening the shift rod and this diagram.
Attached Thumbnails
Transmission Terminology-shift-rod.gif
__________________
Dr. Brad

2003 C320 4Matic Station Wagon
2002 C240 Elegance
1982 380 SEL Star Certified
Reply With Quote
  #5
Old 12-09-2010, 07:26 PM
Gilly's Avatar
Registered User

Join Date: Mar 2001
Location: Evansville WI
Posts: 9,616
Man that diagram is from a 203 chassis, this is what the bushings look like
Attached Thumbnails
Transmission Terminology-w01331642114oes.jpg
Reply With Quote
  #6
Old 12-09-2010, 08:29 PM
Registered User

Join Date: Jan 2006
Posts: 94
@Gilly...thanks for the diagram.

Yes, I wanted to do the same thing on my 2003 C320 4Matic Wagon. The shifter is a little loose and I'd like to have it tighter.

Is there a bushings kit I can buy and install for the shift linkage? Is this a diyer job?
__________________
Dr. Brad

2003 C320 4Matic Station Wagon
2002 C240 Elegance
1982 380 SEL Star Certified
Reply With Quote
  #7
Old 12-10-2010, 07:03 AM
Gilly's Avatar
Registered User

Join Date: Mar 2001
Location: Evansville WI
Posts: 9,616
More than likely it's in the shifter itself on these newer cars.
