W126 front dome light

How do I get access to the bulb?

Thanks,
Sixto
91 300SE
81 300SD

Reply With Quote
  #2
Old 01-10-2002, 06:03 PM
dpetryk's Avatar
Electrons can do anything

Join Date: Sep 2001
Location: Houston, Texas
Posts: 1,072
You have to remove the entire assembly. Here is how you do it. From the right side, using a small screwdriver you have to push two retaining clips back to release the assembly. While holding the clips in the released position pull the right edge out from the car body. It will then pivot around the left edge. Do not pull from the left edge. It only pivots on the left side.

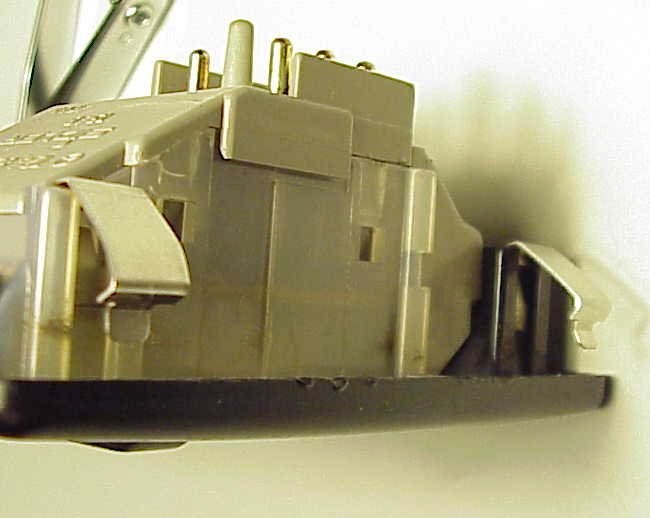

Attached is an image of the right side of the assembly.
Attached Thumbnails
W126 front dome light-mvc-363l.jpg
__________________
I got too many cars!! Insurance eats me alive. Dave

78 Corvette Stingray - 3k
82 242 Turbo Volvo - Manual - 270k
86 300e 5 speed manual - 210k
87 420sel - 240k
89 560sl - 78k
91 420sel - 205k
91 560sel - 85k
94 GMC Suburban - 90k
97 Harley Davidson Heritage Softail - 25k
00 GMC Silverado 1 ton 30k
Reply With Quote
  #3
Old 01-10-2002, 06:06 PM
dpetryk's Avatar
Electrons can do anything

Join Date: Sep 2001
Location: Houston, Texas
Posts: 1,072

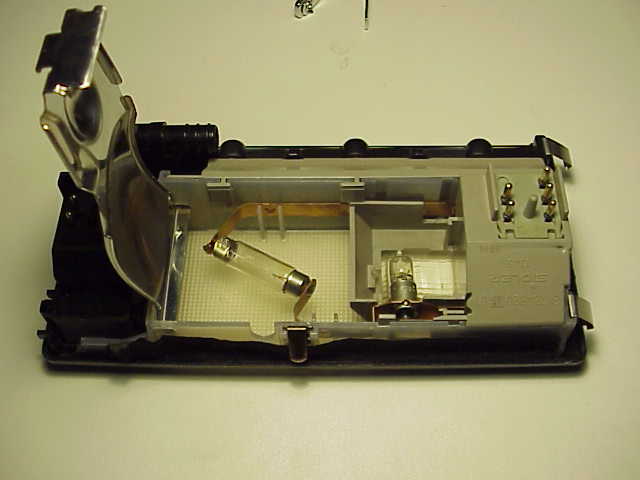

Open the reflector and change the bulb.
Attached Thumbnails
W126 front dome light-mvc-364s.jpg
__________________
I got too many cars!! Insurance eats me alive. Dave

78 Corvette Stingray - 3k
82 242 Turbo Volvo - Manual - 270k
86 300e 5 speed manual - 210k
87 420sel - 240k
89 560sl - 78k
91 420sel - 205k
91 560sel - 85k
94 GMC Suburban - 90k
97 Harley Davidson Heritage Softail - 25k
00 GMC Silverado 1 ton 30k
Reply With Quote
  #4
Old 01-10-2002, 06:16 PM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: Eastern TN
Posts: 20,841
Thanks Dave, that was excellent. Actually, I want to get to the cabin temp sensor.

Sixto
91 300SE
81 300SD

Reply With Quote
