Unhappy Hiya Everybody! Bought an 86 300E 2 weeks ago... and so it begins

Hiya all,

We purchased a 1986 300E a couple of weeks ago at a great price. The car is in beautiful shape inside and out, and has driven beautifully since we acquired it. Of course being a 25 year old car it is not without it's issues, most of them seemed minor however, and I had planned to repair them all as my time and budget allowed.

Well, last night my repair schedule changed a bit. As I was on the highway we started to smell coolant, then the belt started squealing like crazy. Looked down and saw the coolant temp gauge was pegged at 120. I was on a bridge with no breakdown lane so I had to keep driving until we cleared the bridge. Before we made it over to the other side a cloud of steam blasted from under the hood. Needless to say I was assuming the worst.... blown headgasket, warped head, seized engine.

Got her to the side of the road and shut her down. Popped the hood and saw that the upper rad hose was disconnected. Upon further inspection it seems that the plastic flange on the rad that the hose attaches to broke free. Rad is toast. Best price I could find on a replacement here in Canada is $250, Tuesday at the earliest since it's a holiday weekend here.

I'm assuming the belt was squealing because it had been sprayed with coolant. Hopefully nothing more serious going on.

Luckily the car still cranks and starts (although I didn't leave it running for more than a second). Hopefully that means I got her shut down before any serious damage was done.

Anyway, I got the section of the service manual for R&R'ing the rad from 124 zone's website. Seems pretty straight forward, but having never spun a wrench on one of these cars I figured I'd ask the pro's if there is anything I need to know before DIY'ing this.

Thanks in advance folks, and wish me luck.

Reply With Quote
  #2
Old 07-31-2011, 02:30 PM
Registered User

Join Date: Dec 2007
Location: NorCal
Posts: 1,332
Welcome to the forums.

Not to burst your bubble. But I can almost guarantee that the head gasket is blown, which will allow oil into the coolant or vice versa. These engines do not like hitting 120C, let alone staying there and driving. There was actually a design flaw in the original head gasket which makes them susceptible to blowing. I purchased my car with a new rad and blown head gasket, same story.

The car will be driveable with a new radiator alone, but your cooling system will be heavily contaminated within a few hundred miles. The head gasket job is a fairly involved repair, but not out of the reach of a DIY'er.
__________________
http://i193.photobucket.com/albums/z...-RESIZED-1.jpg
1991 300E - 212K and rising fast...
Reply With Quote
  #3
Old 07-31-2011, 02:55 PM
ps2cho's Avatar
Registered User

Join Date: Jun 2006
Location: Chandler, Arizona
Posts: 3,523
I wouldn't worry about head gasket yet, the OP hasn't stated any history with the car, and it may have been replaced already anyway.

Just get a new radiator, Behr or Nissens ONLY (I personally like Nissens), do not get any aftermarket junk. I did it in the beginning and regretted it after replacing it 3 years later.

Coolant is Zerex G-05 -- again, don't get generic crap. Find the correct stuff and your water pump will last and perform better for longer, its tried and true.

Change the oil immediately, overheating causes additive packages to become extinct. Use 15-40 diesel oil such as Rotella-T 15-40, Delvac 15-40, Delo 15-40, I'm partial to Rotella-T and Delvac. The 86 103, unless changed under warranty, will probably still have the pre-hardened cam and it is susceptible to scoring and wear. The zinc additive is a must that is within the above oils!

If the worst has occured and the HG is gone, its not too difficult of a job if you leave everything alone other than the gasket. You don't have to mess with timing, even the belt tensioner you leave alone. Its straight forward if you have some experience wrenching.
__________________
2016 Monsoon Gray Audi Allroad - 21k
2008 Black Mercedes E350 4Matic Sport - 131k
2014 Jeep Wranger Unlimited Sahara - 62k
2003 Gray Mercedes ML350 - 122k
Reply With Quote
  #4
Old 08-01-2011, 06:40 AM
Registered User

Join Date: Aug 2002
Location: Southeastern PA
Posts: 3,037
DroogBC, failure of the upper radiator hose connection is a common occurrence with older radiators. The replacement Behr radiator should have a metal-reinforced upper hose connection. As mentioned I wouldn't immediately presume the head gasket has failed, although that is a possibility.

Be sure to use either MB coolant or Zerex G-05 (both have a neutral PH) mixed 50/50 with water. When refilling the radiator use a short length of clear hose (same size as radiator hose) turned upward so it acts as a funnel, and allow all the air to bubble out before connecting the upper radiator hose. With the clear hose it's easy to see when the radiator is full, but you could also use the upper radiator for the same purpose. Only then you're flying blind. You may want to install a new thermostat while you're at it.

After reassembly run the engine up to operating temperature. Then let it cool down and check the coolant level in the expansion tank. Add coolant, as required, to the full level. You should check the expansion tank level regularly for a while to make sure it's stabilized, and that no oil is in the coolant. Also, check the dipstick for signs of coolant in the oil. Either one would be the sign of a failed head gasket.
__________________
Fred Hoelzle
Reply With Quote
  #5
Old 08-01-2011, 08:31 AM
Hirnbeiss's Avatar
ich fahre, also bin ich

Join Date: Mar 2002
Location: South Florida
Posts: 1,660
Quote:
Originally Posted by ps2cho View Post
.

Change the oil immediately, overheating causes additive packages to become extinct. Use 15-40 diesel oil such as Rotella-T 15-40, Delvac 15-40, Delo 15-40, I'm partial to Rotella-T and Delvac. The 86 103, unless changed under warranty, will probably still have the pre-hardened cam and it is susceptible to scoring and wear. The zinc additive is a must that is within the above oils!
.
Why diesel oil? I thought the zinc additives were bad for cars with cats ( assuming his 86 has one).
__________________
Prost!
Reply With Quote
  #6
Old 08-01-2011, 12:41 PM
Registered User

Join Date: Jul 2011
Posts: 22
Thanks a bunch for the insight folks, I really appreciate it. Although I only drove it while overheating for a moment or two while looking for a safe place to pull over, it certainly seemed like an eternity to me. I'm really hoping the HG isn't toast, but I guess I'll cross that bridge when I get to it. I did pull the dipstick yesterday and the oil is still oil colored, no creaminess or milkiness but I guess it's a little early to tell.

I'll be sure to use the appropriate coolant as suggested, and will do my best to purge the system as recommended. Hopefully I don't run into any problems swapping one rad for the other.

... about that oil. I never would have thought to use diesel oil in a gas engine. Pardon my ignorance, but what's the deal with that?
Reply With Quote
  #7
Old 08-01-2011, 12:44 PM
Registered User

Join Date: Jul 2011
Posts: 22
Quote:
Originally Posted by Hirnbeiss View Post
Why diesel oil? I thought the zinc additives were bad for cars with cats ( assuming his 86 has one).
I'm assuming my 86 has a cat, but I haven't actually climbed under there to check. I guess I'll have a peek tomorrow, lol. I do know that the car passed emissions testing a couple of weeks ago, so that's always good. Everything was well under the allowable thresholds... not bad for 347,000 KM.
Attached Thumbnails

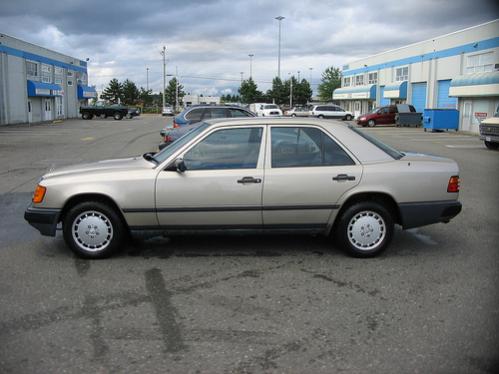

Hiya Everybody! Bought an 86 300E 2 weeks ago... and so it begins-5913829703_c12f9a6322.jpg   Hiya Everybody! Bought an 86 300E 2 weeks ago... and so it begins-5913830425_fb37e2f792.jpg   Hiya Everybody! Bought an 86 300E 2 weeks ago... and so it begins-5914398014_2b27b68472.jpg   Hiya Everybody! Bought an 86 300E 2 weeks ago... and so it begins-img_20110801_120201.jpg

Last edited by DroogBC; 08-01-2011 at 03:42 PM.
Reply With Quote
  #8
Old 08-01-2011, 02:09 PM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: SF Bay Area
Posts: 20,797
Check for mayonnaise under the oil filler cap and do a cold compression test.

Doesn't the M103 have a coolant bleed port in the head near the upper radiator hose fitting?

Sixto
87 300D
Reply With Quote
  #9
Old 08-01-2011, 02:19 PM
tbomachines's Avatar
ಠ_ಠ

Join Date: Mar 2009
Location: Philadelphia
Posts: 6,367
Quote:
Originally Posted by sixto View Post
Check for mayonnaise under the oil filler cap and do a cold compression test.

Doesn't the M103 have a coolant bleed port in the head near the upper radiator hose fitting?

Sixto
87 300D
There is a bleed screw on the top of the thermostat housing, unless that particular m103 is equipped with the junky black plastic thermostat housing. Most have the aluminum housing, I'd highly recommend replacing the plastic one with an aluminum unit is to equipped.
__________________
TC
Current stable:
- 2004 Mazda RALLYWANKEL
- 2007 Saturn sky redline
- 2004 Explorer...under surgery.

Past: 135i, GTI, 300E, 300SD, 300SD, Stealth
Reply With Quote
  #10
Old 08-01-2011, 02:43 PM
Registered User

Join Date: Dec 2007
Location: NorCal
Posts: 1,332
Quote:
Originally Posted by sixto View Post
Doesn't the M103 have a coolant bleed port in the head near the upper radiator hose fitting?
Yes, right next to the valve cover.
__________________
http://i193.photobucket.com/albums/z...-RESIZED-1.jpg
1991 300E - 212K and rising fast...
Reply With Quote
  #11
Old 08-01-2011, 03:39 PM
Registered User

Join Date: Jul 2011
Posts: 22

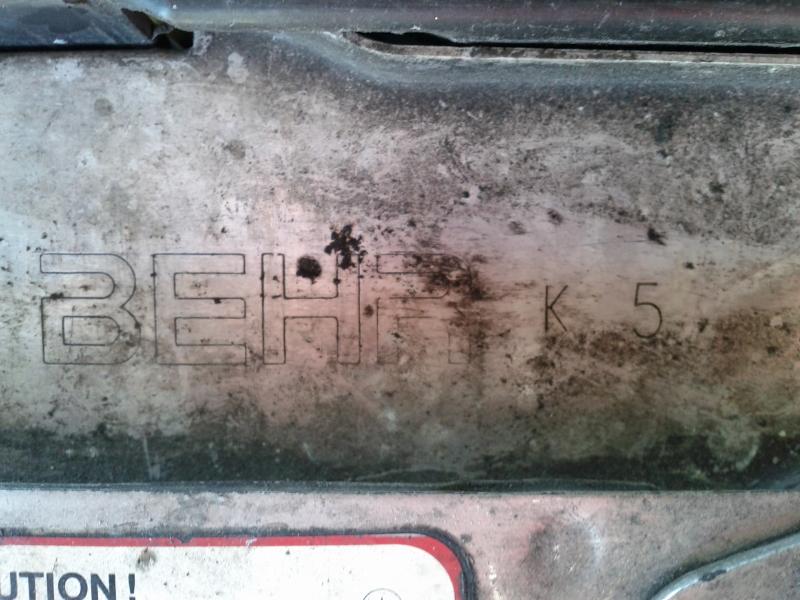

Just took a look and the current rad is a Behr K5 and seems to have the aforementioned metal bit where the upper hose connects. Was it an old rad, or overtightened hose clamp. Hmmmm.

I see that I have an aluminum thermostat housing. I see the bleed screw right in the center. Very handy.

Glanced under the car and I do appear to have a cat... or at least a heat shield roughly mid-pipe where a cat might be. hehehe

How do all of those clips holding the rad in place work, anyway? I haven't begun to fiddle with them much thus far, just wondering if they simply slide upwards or if they lock in place somehow. Any trick to removing them? Just want to mitigate any potential first timer damage. lol

No mayo under the oil cap... just normal looking oil.

...Oh, about that oil...
Attached Thumbnails
Hiya Everybody! Bought an 86 300E 2 weeks ago... and so it begins-img_20110801_120022.jpg   Hiya Everybody! Bought an 86 300E 2 weeks ago... and so it begins-img_20110801_120046.jpg   Hiya Everybody! Bought an 86 300E 2 weeks ago... and so it begins-img_20110801_120117.jpg   Hiya Everybody! Bought an 86 300E 2 weeks ago... and so it begins-img_20110801_120131.jpg   Hiya Everybody! Bought an 86 300E 2 weeks ago... and so it begins-img_20110801_120100.jpg

Reply With Quote
  #12
Old 08-01-2011, 09:28 PM
ps2cho's Avatar
Registered User

Join Date: Jun 2006
Location: Chandler, Arizona
Posts: 3,523
Quote:
Originally Posted by Hirnbeiss View Post
Why diesel oil? I thought the zinc additives were bad for cars with cats ( assuming his 86 has one).
Too much, yes.

You wanna prolong the life of your valvetrain or your cat?
__________________
2016 Monsoon Gray Audi Allroad - 21k
2008 Black Mercedes E350 4Matic Sport - 131k
2014 Jeep Wranger Unlimited Sahara - 62k
2003 Gray Mercedes ML350 - 122k
Reply With Quote
  #13
Old 08-02-2011, 04:30 PM
Registered User

Join Date: Jul 2011
Posts: 22
Replaced the rad a little while ago then filled the system and fired her up. She got hot quickly, but no heat coming from the vents inside, and the left side of the rad feels cool to the touch.

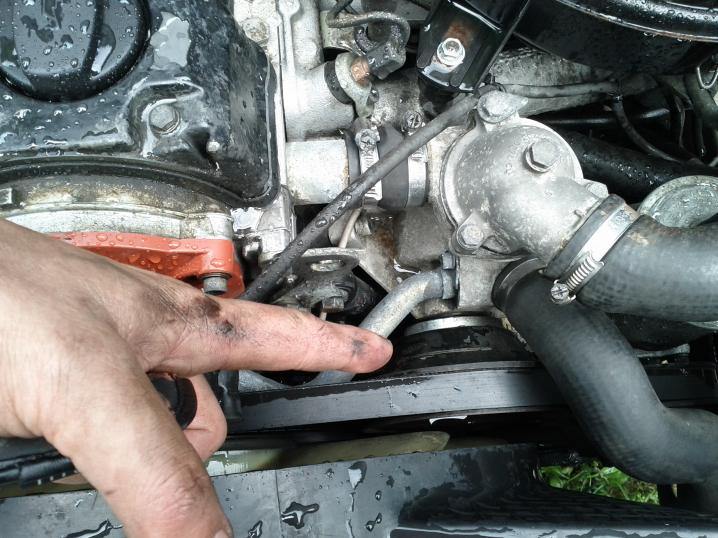

More worrying is there is lotsa squealing going on and the source is the below pictured pulley which isn't spinning. That's the water pump, isn't it?
Attached Thumbnails
Hiya Everybody! Bought an 86 300E 2 weeks ago... and so it begins-img_20110802_132126.jpg
Reply With Quote
  #14
Old 08-02-2011, 04:44 PM
dieseldiehard's Avatar
Dieseldiehard

Join Date: Oct 2002
Location: Bay Area No Calif.
Posts: 4,290
yup, thats the pump, that explains why no heat - because its not turning the impeller must be jammed or corroded internally and you won't want to run the engine more than a fraction of a minute. Why did it stop turning all of a sudden?
__________________
'00 E320 (wifes car), '95 E320 Wagon my favorite road car. '99 E300D wolf in sheeps body, '87 300D Sportline suspension, '79 300TD w/ 617.952 engine at 367,750 and counting!
Reply With Quote
  #15
Old 08-02-2011, 04:48 PM
dieseldiehard's Avatar
Dieseldiehard

Join Date: Oct 2002
Location: Bay Area No Calif.
Posts: 4,290
re-read this thread and saw a piece of plastic inside the rad hose where the neck snapped off the old rad. I see you figured out how those clips that hold it in work. Is it possible a bit of plastic got sucked into the water pump? This is highly unusual (a jammed impeller)

__________________
'00 E320 (wifes car), '95 E320 Wagon my favorite road car. '99 E300D wolf in sheeps body, '87 300D Sportline suspension, '79 300TD w/ 617.952 engine at 367,750 and counting!
