#1
08-01-2011, 09:41 PM
|
|||
|
|||
|
Baum Tools Klima Relay Monitor... anyone seen/used one before

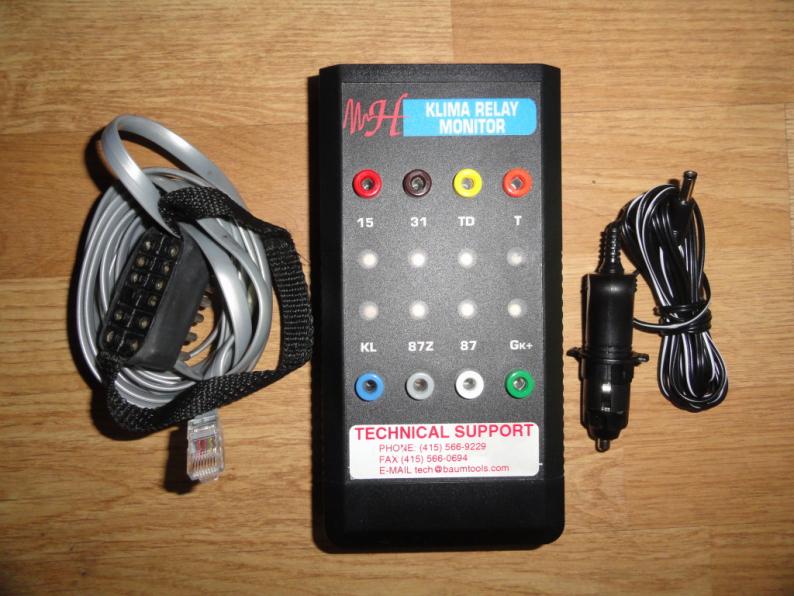

Snagged this...
Not sure if it is useful..
__________________
2009 Mercedes ML320 Bluetec Last edited by whunter; 08-07-2011 at 01:44 AM. Reason: attached picture
|
|
#3
08-02-2011, 10:57 AM
|
|||
|
|||
|
Yes!

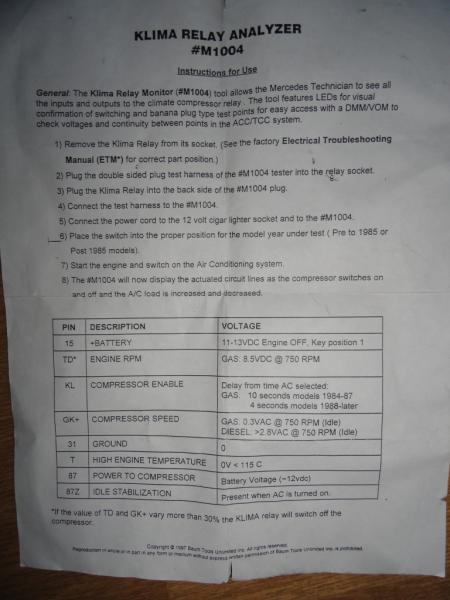

Never seen one before... The instructions mention flipping a switch for pre 85 Mercedes... but cant see a switch anywhere. Called Baum Tools, and they have no information about it. Anyone care to direct me to info on what readings the Klima puts out? Trying to figure out why the Compressor wont run on my 84 190D.
__________________
2009 Mercedes ML320 Bluetec
|
|
#4
08-03-2011, 12:03 PM
|
|||
|
|||
|

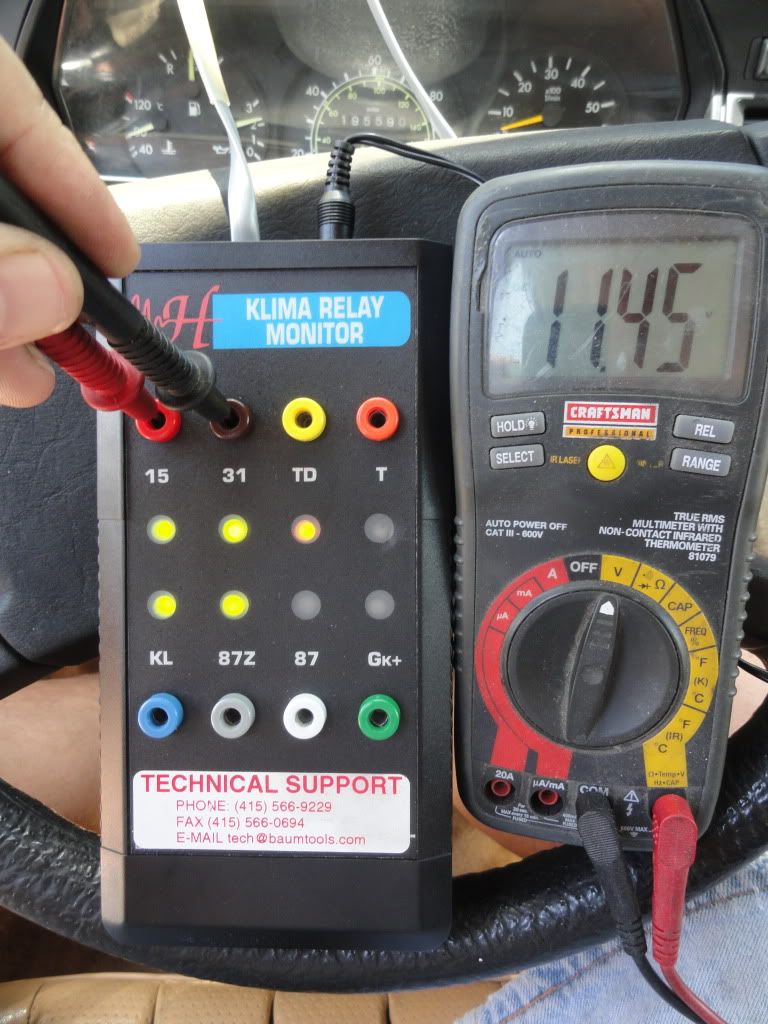

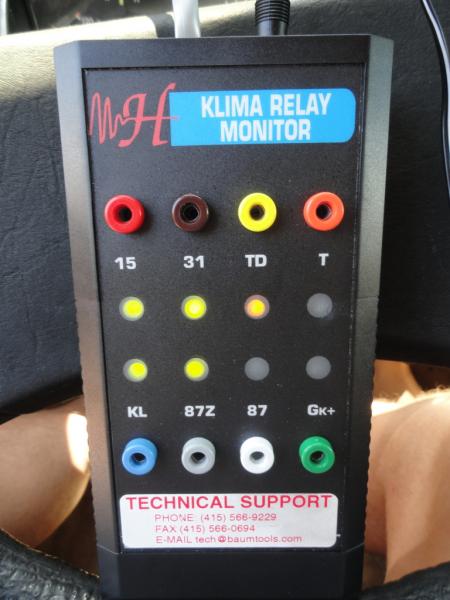

Used it yesterday....
Interesting...  Took some DMM readings for each pin...  Now I need to figure out what the readings mean!
__________________
2009 Mercedes ML320 Bluetec Last edited by whunter; 08-07-2011 at 01:45 AM. Reason: attached pictures
|
|
#5
08-03-2011, 12:04 PM
|
|||
|
|||
|
As the instructions state check for voltage from the control unit .I simply bridged the two pins together .compresser ran but drew 12 amps when it should be drawing close to 3 amps .I have replaced the clutch unit and it 2.8 A , which is normal draw ,but the klima unit does not work .
Regards Ad
|
|
#6
08-03-2011, 12:14 PM
|
|||
|
|||
|
I am gonna continue diagnosing my non functioning 190D A/C back on the thread I started here..
http://www.peachparts.com/shopforum/diesel-discussion/314691-c-compressor-not-engaging-ideas-post2763169.html#post2763169 But here are the reading I got.. All readings taken with my DMM with - probe in #31 on the Monitor engine at idle with A/C on max. #15 = 10.75V #TD = -0.85V #GK+ =-0.85V #87 = -0.885V #T =11.15V #KL =0.5V #87Z =9.5V
__________________
2009 Mercedes ML320 Bluetec
|
|
#7
08-04-2011, 01:54 AM
|
|||
|
|||
|
pin # 87 indicates there is no power going to the compressor.It should have battery voltage
KL pin is compressor enable ; does it have a change in voltage from max cool to max heat setting ? i assume it should to enable the relay to activate compressor regards .
|
|
#9
08-04-2011, 11:38 AM
|
||||
|
||||
|
That's a neat tool. I'd think it would be extra useful for tests on the compressor speed sensor.
-J
__________________
1991 350SDL. 230,000 miles (new motor @ 150,000). Blown head gasket  Tesla Model 3. 205,000 miles. Been to 48 states! Past: A fleet of VW TDIs.... including a V10,a Dieselgate Passat, and 2 ECOdiesels. 2014 Cadillac ELR 2013 Fiat 500E.
|
|
#10
08-04-2011, 12:29 PM
|
|||
|
|||
|
Yes, I feel good about buying it... now I need to learn and understand what its telling me!
Reading thru the FSM Alder sent me I spotted something interesting... It says the reading from the speed sensors should be reading in AC V, not DC V.. My meter is autoranging, but I will check that later. What I did note at the time, was it was reading Minus 0.8V... which i thought was odd. Also, I thought it odd that pin 15 that the instruction sheet say I should have battery voltage... I only am reading 10.76V...
__________________
2009 Mercedes ML320 Bluetec
|
|
#11
08-04-2011, 12:48 PM
|
||||
|
||||
|
Where did you find this tool?
__________________
 88 300e 89 300e 93 400e 93 500e 77 308 GTB
|
|
#12
08-04-2011, 07:21 PM
|
|||
|
|||
|
Was searching for a Klima relay for the 190D on Ebay...
It popped up in the search. Figured at $25 it was a steal...
__________________
2009 Mercedes ML320 Bluetec Last edited by Merkey; 08-04-2011 at 07:53 PM.
|
 |
