#1
12-29-2011, 12:38 PM
|
|||
|
|||
2005 E-Class Ambient Temp Sensor Mount
Hi, can someone tell me how the temp sensor behind the front bumper is mounted? Is it held by a bracket, or does it fit into a hole in the driver's side black plastic lower grill (this grill has a hole in it in about the right place, but the sensor does not fit tightly enough to stay in place, so i am missing something here...).
__________________
Providing a home for these cars: 1951 Buick Special De Luxe 1977 Rolls-Royce Silver Wraith II 1970 Rolls-Royce Silver Shadow 1986 Mercedes-Benz 420 SEL 2005 Mercedes-Benz E 320 CDI 2012 GMC Sierra 1500 4X4 1927 Pierce-Arrow Series 80 1931 Pierce-Arrow Series 43 1926 Ford Model T coupe
|
|
#2
12-29-2011, 02:45 PM
|
||||
|
||||
|

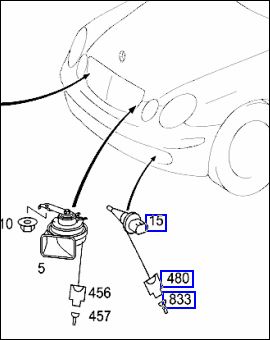

There is a little bushing that has probably fallen out. They are dealer-only items. Here are two pics from the EPC, the one shows your sensor and the bushing and connector, the other is the part numbers tied to the items. I'd guess you just need the bushing (#480 in the pic).
Alternatively, if you want to be quick and expedient, you could put the sensor in and tag it with a spot of silicone seal at the back of the grille. Not too much, just enough to hold it, then you can remove it later if needed. Good luck.
|
|
#3
12-30-2011, 11:36 PM
|
|||
|
|||
|
That's it, thanks a bunch! I will continue to drive the parts guy at my dealer crazy, and make him find it for me!
__________________
Providing a home for these cars: 1951 Buick Special De Luxe 1977 Rolls-Royce Silver Wraith II 1970 Rolls-Royce Silver Shadow 1986 Mercedes-Benz 420 SEL 2005 Mercedes-Benz E 320 CDI 2012 GMC Sierra 1500 4X4 1927 Pierce-Arrow Series 80 1931 Pierce-Arrow Series 43 1926 Ford Model T coupe
|
 |
