sludged up 2000 S500 engine pictures

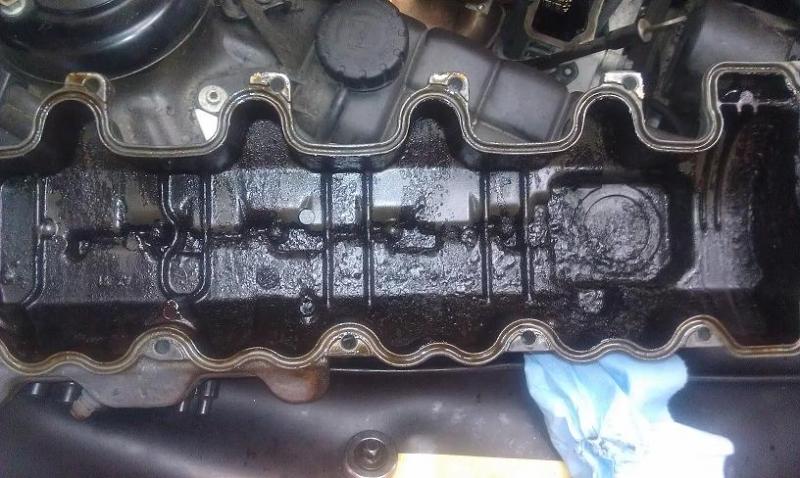

I had a 2000 S500 in the shop today that needed a new valve cover gasket. This is what I found when I pulled the cover. This is, by far, the worst sludged up engine that I have ever come up on.

The only way I know to clean it out would be to do 3000 mile oil changes for a year or so using Mobile 1. Anyone know of another way without taking the engine apart? I suspect that the owner is going by the oil change service indication using conventional motor oil.

Attached Thumbnails
sludged up 2000 S500 engine pictures-sludge-1.jpg   sludged up 2000 S500 engine pictures-sludge-2.jpg   sludged up 2000 S500 engine pictures-sludge-3.jpg   sludged up 2000 S500 engine pictures-sludge-4.jpg
__________________
Jim
Reply With Quote
  #2
Old 03-02-2012, 06:00 PM
Registered User

Join Date: Sep 2003
Location: Suburban Washington DC
Posts: 892
You call that sludge? That's nothing. THIS is sludge.





On a 2009 Cadillac I got used over 2 years ago. I took the car in for warranty work to replace the timing chains, but when they saw that, they wouldn't do it under warranty. I dragged it home and did it myself. 10 or so hours for the chains, another 10 with q-tips, plastic scrapers and brake cleaner got it cleaned up like this.



Reply With Quote
  #3
Old 03-02-2012, 06:25 PM
Yak Yak is offline
Registered User

Join Date: Aug 2009
Location: San Antonio, TX
Posts: 1,711
Maybe recommend for the owner to get an oil analysis? If it's that bad, what's wearing in there?

Any history of 'stop-leak' use in the oil system, like "my VC gasket is leaking, I'll put this stuff in here to stop it..."

I'd maybe go the other route from Mobil 1 - use a cheap, high-detergent based oil and change more often. Maybe use an engine flush product?
Reply With Quote
  #4
Old 03-02-2012, 07:12 PM
engatwork's Avatar
Registered User

Join Date: May 2000
Location: Soperton, Ga. USA
Posts: 13,666
Quote:
use a cheap, high-detergent based oil and change more often. Maybe use an engine flush product?
hmmmm, you know I think I like your idea better. I'll run that by the owner.

Wow at the Caddy pictures. Does anyone know what the typical first mechanical failure is on an engine that is too sludged up to keep going?
__________________
Jim
Reply With Quote
  #5
Old 03-02-2012, 08:00 PM
Southern's Avatar
Registered User

Join Date: Jan 2000
Location: Carol Stream, Il, USA
Posts: 605
I suggest the Mobil 1 at 3K mile change intervals. If too much sludge is dislodged too quickly it may cause screens/oil passages to plug up.

If you decide try the engine flush products, the two I recommend are Rislone and Seafoam (in the crankcase).
__________________
Ray
1998 Mercedes E320, 200K Miles
2001 Acura 3.2TL, 178K Miles
1992 Chevy Astro, 205K Miles
Reply With Quote
  #6
Old 03-02-2012, 08:05 PM
Registered User

Join Date: Oct 2004
Posts: 4,177
Quote:
Originally Posted by engatwork View Post
Does anyone know what the typical first mechanical failure is on an engine that is too sludged up to keep going?

Had a customer that never changed the oil on an ML 320 since new. It went 42k mi before it poked a rod out the side of the block. Inside it looked a lot like that caddy motor above.
__________________

90 300TE 4-M
Turbo 103, T3/T04E 50 trim
T04B cover .60 AR
Stage 3 turbine .63 AR
A2W I/C, 40 LB/HR
MS2E, 60-2 Direct Coil Control
3" Exh, AEM W/B O2
Underdrive Alt. and P/S Pulleys,
Vented Rear Discs, .034 Booster.
3.07 diffs 1st Gear Start

90 300CE
104.980
Milled & ported head, 10.3:1 compression
197° intake cam w/20° advancer
Tuned CIS ECU
4° ignition advance
PCS TCM2000, built 722.6
600W networked suction fan
Sportline sway bars
V8 rear subframe, Quaife ATB 3.06 diff
Reply With Quote
  #7
Old 03-02-2012, 08:10 PM
Registered User

Join Date: Sep 2003
Location: Suburban Washington DC
Posts: 892
You might want to try Kreen first. Big discussion about it at: Kreen Update - Bob Is The Oil Guy
Reply With Quote
  #8
Old 03-02-2012, 08:28 PM
engatwork's Avatar
Registered User

Join Date: May 2000
Location: Soperton, Ga. USA
Posts: 13,666
Quote:
It went 42k mi before it poked a rod out the side of the block
I guess it eventually gets so bad that it plugs oil passages up which lead to catastropic failure.
__________________
Jim
Reply With Quote
  #9
Old 03-02-2012, 08:38 PM
d.delano's Avatar
Dönerkebap

Join Date: May 2004
Location: DC
Posts: 1,466
I don't see a huge problem Jim, my car looks like that and it runs perfectly. I don't know how there could be sludge in a one-owner dealer-serviced car but there is some sludging in mine. Not my doing and it doesn't seem to be a problem so I just drive it. I never skip an oil change with Mobil 1 and it never skips a beat. I'm amazed at how filthy and ugly the engine in my car is considering how well it runs. Oh well.
__________________
'02 BMW 325i
'85 300D 450k
'93 190E 2.6 170k(killed by tree)
'08 Ducati Hypermotard 1100S 6k
'06 Ducati S2R800 14k(sold)
Reply With Quote
  #10
Old 03-02-2012, 09:43 PM
E150GT's Avatar
I'm a chicken

Join Date: Sep 2006
Location: SAN ANTONIO, TEXAS
Posts: 1,148
looks like my friends s2000. He never does anything to that car and its all sludged up but runs like a top.
__________________
1984 300SD Orient Red/ Palomino
1989 560SEC
2016 Mazda 6 6 speed manual
1995 Ford F-150 reg cab 4.9 5speed manual
Reply With Quote
  #11
Old 03-02-2012, 11:02 PM
FrankM's Avatar
Senior Member

Join Date: Jul 2000
Location: Location: NH
Posts: 329
Quote:
Originally Posted by engatwork View Post
Does anyone know what the typical first mechanical failure is on an engine that is too sludged up to keep going?
The oil rings are stuck and blocked, it becomes an oil burner. The next step is they do not check the oil and keep it topped off so they run low on oil causing bearing damage.

They hear a knock noise and top it off. The knock noise is a rod bearing shredding it self and often times turning in the big end. (if not then it will do it soon after)
The final stage is the turning rod bearing seizes and snaps the connecting rod, often times making a hole on the block.

That cleaned engine a few posts back is a candidate for an oil burner.
I would use Mobil 1 and change it every 3k. in about 10-15K miles the rings will be free and whistle clean.
Reply With Quote
  #12
Old 03-03-2012, 12:56 AM
d.delano's Avatar
Dönerkebap

Join Date: May 2004
Location: DC
Posts: 1,466
How many valves does that S500 have anyway. I'm assuming it's a V8, on the cylinder bank pictured I'm not seeing two camshaft sprockets per usual, and also it looks to be 3 valves per cylinder judging by the number of rockers which seems strange considering it's obviously DOHC.
__________________
'02 BMW 325i
'85 300D 450k
'93 190E 2.6 170k(killed by tree)
'08 Ducati Hypermotard 1100S 6k
'06 Ducati S2R800 14k(sold)
Reply With Quote
  #13
Old 03-03-2012, 08:18 AM
Registered User

Join Date: Aug 2003
Location: Phoenix
Posts: 3,726
Quote:
Originally Posted by d.delano View Post
How many valves does that S500 have anyway. I'm assuming it's a V8, on the cylinder bank pictured I'm not seeing two camshaft sprockets per usual, and also it looks to be 3 valves per cylinder judging by the number of rockers which seems strange considering it's obviously DOHC.
113 motors are SOHC.
Reply With Quote
  #14
Old 03-03-2012, 08:22 AM
oldsinner111's Avatar
lied to for years

Join Date: Nov 2008
Location: Elizabethton, TN
Posts: 6,249
I don't know if this helps,but I've run diesel motor oils in my gasoline engines too,for over 20 years.Always had a clean motor.
__________________
1999 w140, quit voting to old, and to old to fight, a god damned veteran
Reply With Quote
  #15
Old 03-03-2012, 08:41 AM
Registered User

Join Date: Aug 2003
Location: Phoenix
Posts: 3,726
Quote:
Originally Posted by oldsinner111 View Post
I don't know if this helps,but I've run diesel motor oils in my gasoline engines too,for over 20 years.Always had a clean motor.
But this is a 113 motor, prone to sludging. It's virtually impossible to sludge an older Mercedes motor if you change the oil at all, with anything. But still not a bad idea. Or Pennzoil Platinum synthetic.

Reply With Quote
