Angry fuel Accumulator 1991 190E 2.6

OK gang, I have continued on with this no start situation on my wifes car, what I have found is that water is in the fuel system. I removed the #6 injector and ran the pumps just to see how much fuel was getting threw, it seemed minuscule to me but I really did not know how m much should get threw the injector, though if you think about it atomization would be more important than quantity. I went in the house and about an hour later I went out and found water in my drip bowl. so I ran the pumps after removing the fuel inlet hose and found more water. So I am at this time in proses of draining the fuel system. I also am changing the filter, but now have a new question about the accumulator. When I removed it I had fuel drip from the small line, I have read that some is OK , but I shook it into a bowl and got a good bit of fuel from that small line, as in the pictures, dose this mean I need to replace the accumulator? The amount of fuel was 5 tea spoons.

Attached Thumbnails

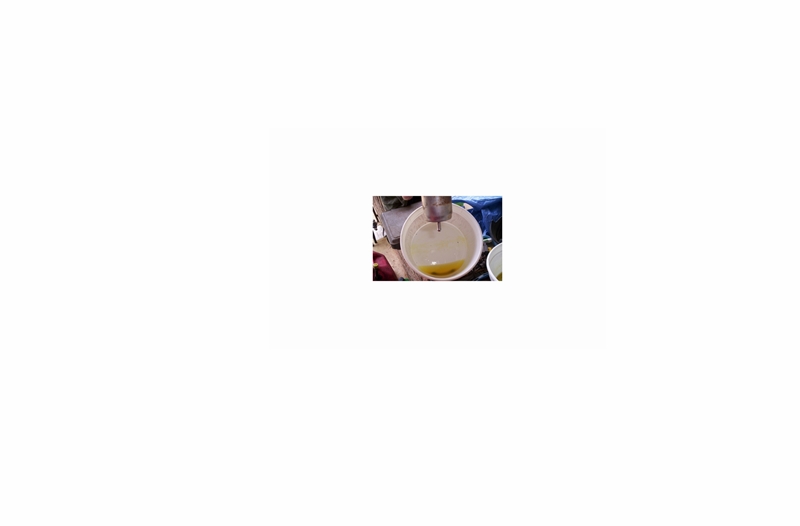

fuel Accumulator 1991 190E 2.6-coil-fuel-accumulator-006.jpg

Last edited by just-n-time; 04-27-2012 at 07:23 PM. Reason: bad picture
Reply With Quote
Old 04-30-2012, 09:34 AM
Join Date: Mar 1999
Location: Tucker, Ga USA
Posts: 12,153
Fuel on the return side of the accumulator is normal, because that is connected to the fuel pump pick-up.

However if you disconnect the return line from the accumulator & clamp it shut,
with the car running fuel should not keep running from the accumulator.
MERCEDES Benz Master Guild Technician (6 TIMES)
ASE Master Technician
Mercedes Benz Star Technician (2 times)
44 years foreign automotive repair
27 Years M.B. Shop foreman (dealer)
MB technical information Specialist (15 years)
190E 2.3 16V ITS SCCA race car (sold)
1986 190E 2.3 16V 2.5 (sold)
Retired Moderator
Reply With Quote
Old 04-30-2012, 03:58 PM
just-n-time's Avatar
Registered User
Join Date: Feb 2006
Location: Louisiana266 Maloy Rd winnfield71483
Posts: 804
Thank you doc, I recall this now that you reminded me.
