  #16
Old 06-29-2012, 03:01 PM
ps2cho's Avatar
Registered User

Join Date: Jun 2006
Location: Chandler, Arizona
Posts: 3,525
bumping this thread since I may end up doing this.

Found this:

He actually uses an MB pump:

Radiator Mist - beat the overheat - YotaTech Forums

__________________
2016 Monsoon Gray Audi Allroad - 21k
2008 Black Mercedes E350 4Matic Sport - 131k
2014 Jeep Wranger Unlimited Sahara - 62k
2003 Gray Mercedes ML350 - 122k
Reply With Quote
  #17
Old 07-01-2012, 02:42 PM
stormyc88's Avatar
muffled but untamed

Join Date: Oct 2010
Location: Babylon, NY
Posts: 160
does anybody know if the cool harness works when plugged into the green 3-prong sensor? Jim Forgione's instructions only mention to find the blue 2-prong sensor, but my car only has the 3-prong one.
__________________
Streetside: 1987 Mercedes 300E Petrol Blue/Green
2014 Ford Mustang Grabber Blue
1999 Ford Ranger Green

Dockside: 1968 Eltro 17
1985 Silverton 34C
Reply With Quote
  #18
Old 07-02-2012, 07:54 AM
Posting since Jan 2000

Join Date: Sep 2011
Posts: 7,166
If you have an overheating problem, you would be much better served by finding the cause of the problem and curing it. If you do NOT have an overheating problem, be happy and don't worry about it.
__________________
2001 SLK 320 six speed manual
2014 Porsche Cayenne six speed manual

Annoy a Liberal, Read the Constitution
Reply With Quote
  #19
Old 07-10-2012, 01:50 AM
lsmalley's Avatar
Registered User

Join Date: Oct 2006
Location: California
Posts: 2,135
After running with the resistor for about 3 weeks I realized that my ac would cycle off and on.....wasn't sure what the problem was at first, but it was cycling of and on every 30 sec to a minute. I removed the resistor yesterday and now the compressor stays on and car gets extremely cold. I will leave off the resistor. The engine temp does still rise once again to about 105-110*C, but when I'm driving with an outside ambient temp of 114*F I'd much rather be cooler.
__________________

1990 190E 3.0L
Reply With Quote
  #20
Old 06-28-2013, 03:22 AM
lsmalley's Avatar
Registered User

Join Date: Oct 2006
Location: California
Posts: 2,135
Thumbs up Manual engine cooler complete!

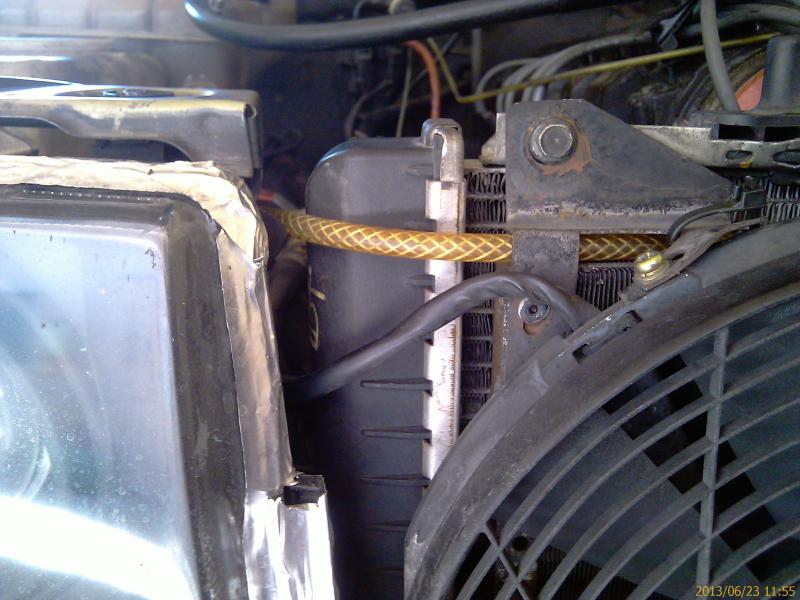

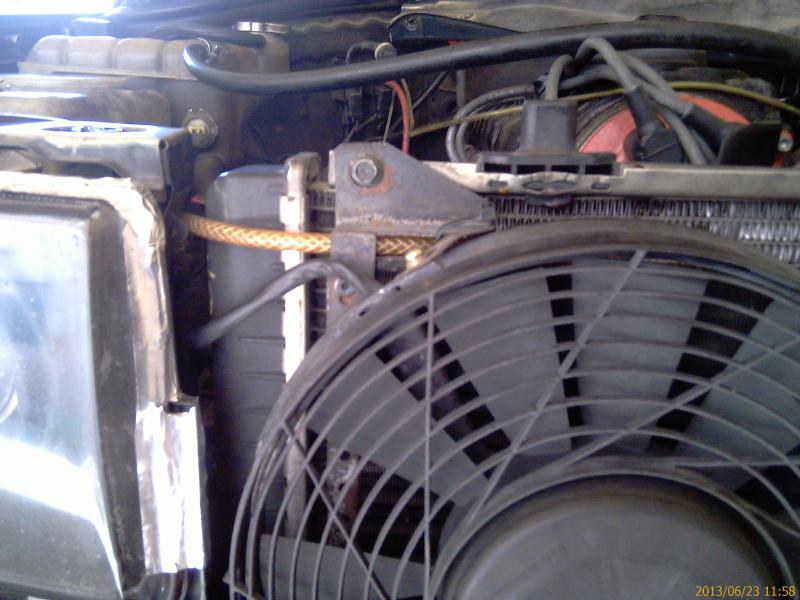

Ok guys, last summer I talked about making this manual engine cooler and I have done it. I alson have the manual high speed aux fan switch on my dash which also helps. Here are some pictures....as a side note, the pictures show only one vinyl tube feeding between the radiator and condenser, but I have installed a second washer pump into the washer reservoir port that was plugged with a closed rubber grommet, now I actually have 2 pumps and 2 hoses going between the radiator and condenser that spray water. When I use this in conjunction with the high speed fans it lowers the temp of the engine below the 100*C mark even wih the a/c on and the outside ambient temp at about 110*F. Only need to press the button a few times or either hold the button down for continuous water injection if the temp gauge is really high and the engine temp will begin cooling down within 20-30 seconds. I had to splice into the plug to add the second washer pump, since I took out my aux water pump, I used that harness since it is the exact same plug as the washer pump plug. I plugged the ends of the clear tubing and puncturd holes randomly on all sides of both holes to get better water misting/dispersion and to avoid having hot spots if I would've made the holes uniform.
Attached Thumbnails
I need the forum's input on manual engine cooling-imag1042.jpg   I need the forum's input on manual engine cooling-imag1043.jpg   I need the forum's input on manual engine cooling-imag1046.jpg
__________________

1990 190E 3.0L

Last edited by lsmalley; 06-28-2013 at 09:12 PM. Reason: below the 100*C mark not 80*C mark
Reply With Quote
  #21
Old 06-28-2013, 06:54 AM
oldsinner111's Avatar
lied to for years

Join Date: Nov 2008
Location: Elizabethton, TN
Posts: 6,246
nnice Ismalley. Are you running a m104 or 103 turbo? did you go to colder spark plugs?
__________________
1999 w140, quit voting to old, and to old to fight, a god damned veteran
Reply With Quote
  #22
Old 06-28-2013, 08:20 AM
JamesDean's Avatar
Electrical Engineer

Join Date: Apr 2005
Location: NE Ohio
Posts: 5,038
It would be pretty cool if you automated it, when engine temp = X, spray on the radiator for X seconds.
__________________
Cruise Control not working? Send me PM or email (jamesdean59@gmail.com). I might be able to help out.
Check here for compatibility, diagnostics, and availability!

(4/11/2020: Hi Everyone! I am still taking orders and replying to emails/PMs/etc, I appreciate your patience in these crazy times. Stay safe and healthy!)


82 300SD 145k
89 420SEL 210k
89 560SEL 118k
90 300SE 262k RIP 5/25/2010
90 560SEL 154k
91 300D 2.5 Turbo. 241k
93 190E 3.0 235k
93 300E 195k
Reply With Quote
  #23
Old 06-28-2013, 09:11 PM
lsmalley's Avatar
Registered User

Join Date: Oct 2006
Location: California
Posts: 2,135
Quote:
Originally Posted by oldsinner111 View Post
nnice Ismalley. Are you running a m104 or 103 turbo? did you go to colder spark plugs?
Not for intake or turbo....I did this because of the climate I live in and the outside ambient temp can reach 120* on some days, but mostly triple digits are a bit lower. So what this does is when my engine starts to get hot, I press the button and it shoots a dispersed mist of water filling the area between the radiator and condenser and the fans pull in the cooler air/water and cools down the engine.


James Dean, I agree, but I like having the manual controls because sometimes its just a few squirts and other times I'll hold the button down for a few seconds giving the radiator and condenser a nice spray to help bring the temp down faster.
__________________

1990 190E 3.0L
Reply With Quote
  #24
Old 06-29-2013, 03:36 PM
JamesDean's Avatar
Electrical Engineer

Join Date: Apr 2005
Location: NE Ohio
Posts: 5,038
I see no reason why you couldnt have both automatic spritzing and manual. I think it would be a fun project to do.

How long do you hold the button down for and how long does it take to achieve a good temperature? Like if it was a 100C, how long would you hold it down for until it reached 80C?
__________________
Cruise Control not working? Send me PM or email (jamesdean59@gmail.com). I might be able to help out.
Check here for compatibility, diagnostics, and availability!

(4/11/2020: Hi Everyone! I am still taking orders and replying to emails/PMs/etc, I appreciate your patience in these crazy times. Stay safe and healthy!)


82 300SD 145k
89 420SEL 210k
89 560SEL 118k
90 300SE 262k RIP 5/25/2010
90 560SEL 154k
91 300D 2.5 Turbo. 241k
93 190E 3.0 235k
93 300E 195k
Reply With Quote
  #25
Old 06-29-2013, 04:21 PM
lsmalley's Avatar
Registered User

Join Date: Oct 2006
Location: California
Posts: 2,135
Quote:
Originally Posted by JamesDean View Post
I see no reason why you couldnt have both automatic spritzing and manual. I think it would be a fun project to do.

How long do you hold the button down for and how long does it take to achieve a good temperature? Like if it was a 100C, how long would you hold it down for until it reached 80C?

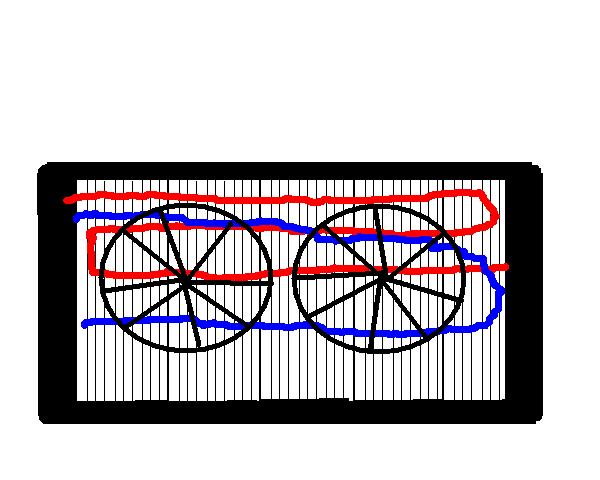

For the temp to drop down 20* I can hold the button down for about 10 seconds with high speed fans on and the temp would be down 20* in about 30-45 seconds. Never really timed it, but it drops pretty quickly. I just added another legnth of tubing to it and now I have tubing running between the radiator and condenser in a sort of an "S".....going back and forth. In the picture the red and blue lines represent the hoses between the radiator and condenser. Water sprays out from the entire legnth of the hose through tiny holes that create the mist that brings the temp down. Very easy to do. Just use distilled water to avoid mineral build up.
Attached Thumbnails
I need the forum's input on manual engine cooling-cooling.jpg
__________________

1990 190E 3.0L
Reply With Quote
  #26
Old 06-30-2013, 06:11 AM
oldsinner111's Avatar
lied to for years

Join Date: Nov 2008
Location: Elizabethton, TN
Posts: 6,246
I went from water pump fan to electric on my 300SD I hardly use the fan except when in the city,and its manual.I'm doing the same for my W140
__________________
1999 w140, quit voting to old, and to old to fight, a god damned veteran
Reply With Quote
  #27
Old 07-01-2013, 02:33 AM
lsmalley's Avatar
Registered User

Join Date: Oct 2006
Location: California
Posts: 2,135
Thumbs up Latest upgrade to manual cooling

So instead of running the tubes between the radiator and condenser I decided on another upgrade. I purchased 2 180 degree sprinkler nozzles from Lowe's with a 1/4 inch diameter barbed fitting and I purchased 1/4 inch clear tubing. I mounted the nozzles over the radiator and condenser pointing downward between the fans and now I get a nice uniform, spray that covers the entire radiator and condenser with considerably more with than my previous set up. Cooling the engine now takes less time. included are some photos and a diagram.


Materials used: *For dual nozzles, this can also be accomplished with one nozzle*

1.) 1/4 inch diameter clear tubing (legnth depends on diastance from washer reservoir to radiator)

2.) 2- 180 degree plasic sprinkler heads with 1/4 diameter barbed end

3.) Zip ties

4.) Check valve and Y- splitter tubing (optional)
Attached Thumbnails
I need the forum's input on manual engine cooling-cooling.jpg   I need the forum's input on manual engine cooling-imag1051.jpg   I need the forum's input on manual engine cooling-imag1052.jpg   I need the forum's input on manual engine cooling-imag1053.jpg

__________________

1990 190E 3.0L
Reply With Quote
