Early A/C system to later retrofit plus r12

So this will be my official progress thread as I attempt to make the best A/C system possible using only factory parts.

My 300TE is currently switched to r134a and it just doesn't cut it out here in Arizona.

Parts to upgrade:
Old 15cc to New 17cc Denso Compressor
Larger Condenser
Twin fan assembly
New Drier
R12 refrigerant

So basically, Mercedes used a larger condenser, larger compressor and better twin fan design to improve on the shortcomings of factory r134a system.
If I upgrade to that design, BUT use R12. How could it possibly get any better, right?

----

So went to the junkyard today and found a complete assembly with working fans (tested using portable battery).



The Fan and condenser should be easy....The only problem I think I will run into will be with the different placement of the hoses as shown below:

Early Model:
[IMG]https://www.***************/secure/PartImages/1248301770.jpg[/IMG]
Later Model:
[IMG]https://www.***************/secure/PartImages/1248301670NIS.jpg[/IMG]

Compressor Hose:

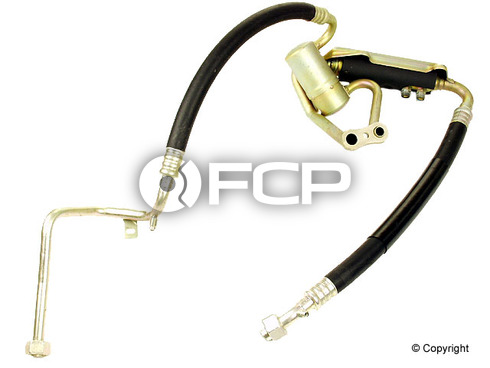

Early Model:

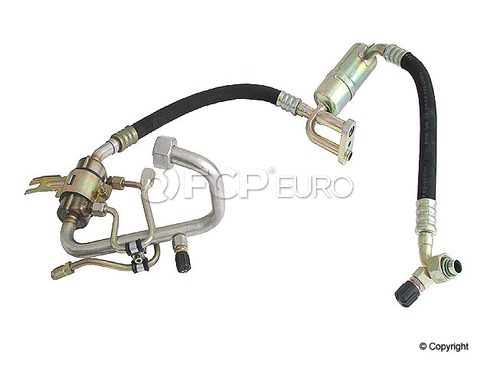

Later Model:


Does the 17cc compressor REQUIRE the later hose, or will the original one fit? Anybody know?

__________________
2016 Monsoon Gray Audi Allroad - 21k
2008 Black Mercedes E350 4Matic Sport - 131k
2014 Jeep Wranger Unlimited Sahara - 62k
2003 Gray Mercedes ML350 - 122k
Reply With Quote
  #2
Old 03-15-2013, 10:39 PM
LandYaghtLover's Avatar
Registered User

Join Date: Jun 2010
Location: Green Bay, WI
Posts: 1,341
Well the system could freeze up. Colder is not always better. But I am no expert. I use propane as a refrigerant in my cars that call for R12 after all!
__________________
1991 560 SEL / 185k miles
1992 750il / 17k miles - project car
Reply With Quote
  #3
Old 03-16-2013, 01:27 AM
ps2cho's Avatar
Registered User

Join Date: Jun 2006
Location: Chandler, Arizona
Posts: 3,523
In 120F, no way its gonna freeze up!
__________________
2016 Monsoon Gray Audi Allroad - 21k
2008 Black Mercedes E350 4Matic Sport - 131k
2014 Jeep Wranger Unlimited Sahara - 62k
2003 Gray Mercedes ML350 - 122k
Reply With Quote
  #4
Old 03-19-2013, 04:04 PM
ps2cho's Avatar
Registered User

Join Date: Jun 2006
Location: Chandler, Arizona
Posts: 3,523
Just purely out of the curiosity and to keep within my budget, I have decided to do this in two stages:

Stage 1: Bigger condenser and dual fans sticking with R134a.
I want to see what immediate difference it makes with R134a with the small upgrade. Since the later condenser is still the same tube and fin design, I can simply flush it clean when moving onto stage 2

Stage 2: 17cc compressor and R12.

Will update soon with Stage 1 progression! Awaiting the condenser in the mail.
__________________
2016 Monsoon Gray Audi Allroad - 21k
2008 Black Mercedes E350 4Matic Sport - 131k
2014 Jeep Wranger Unlimited Sahara - 62k
2003 Gray Mercedes ML350 - 122k
Reply With Quote
  #5
Old 03-19-2013, 07:42 PM
ps2cho's Avatar
Registered User

Join Date: Jun 2006
Location: Chandler, Arizona
Posts: 3,523
Took a closer look tonight at the hose assembly. Definitely needs to be changed to make this work....

After some hunting my stock suction hose /w fuel cooler: PN # 103-130-17-57 shown below: (for future researchers replaced by 103-130-38-57 followed by 103-130-32-57 all same unit same as photo below)


Superceded to 103-130-53-57 (THIS looks like its the one I need) shown below:


Note the longer line that bends around towards the top of the original condenser:

Versus the superceded part # that is shorter and simply bends at a 90deg angle to go to the new location of the outlet.

Interesting enough I just noticed something...

It seems that as of 1990 onwards, they ALL use the later model condenser. If you plug a 1990 300E and a 1994 E320, the condenser has the same part # and the same location of the outlets. I guess then that in fact contrary to common knowledge, models with R12 between 1990-r134a introduction had the best systems! They came with the later condenser (is it even any bigger now??), the dual fan set up and the sweet R12
The ONLY thing that changed with the r134a systems was the Nippodenso 17cc compressor. That's ALL! I am going to guess that they only replaced it because at IDLE R134a was struggling hard so to compensate, they gave it a boost.
__________________
2016 Monsoon Gray Audi Allroad - 21k
2008 Black Mercedes E350 4Matic Sport - 131k
2014 Jeep Wranger Unlimited Sahara - 62k
2003 Gray Mercedes ML350 - 122k
Reply With Quote
  #6
Old 03-19-2013, 07:58 PM
Gilly's Avatar
Registered User

Join Date: Mar 2001
Location: Evansville WI
Posts: 9,616
I wouldn't do it, but can see you've made your mind up.
Technically, the problem I wonder about are the fittings. The R12 fittings have the threads that the 134 adapters screw on to, but how do you get R12 fittings on to the 134 connectors?

I think the system will "cut it" once the updated and later 124 components are added (that were made for factory 134a cars). R12 conversions are known for being subpar, but that is not only because the 134 isn't as good as the R12 (we know it's not!), but also because the system was designed for R12, once you drop in 134, yeah it's a lose-lose situation. Once the system is upgraded to 134-spec components it will be a lot better. In my opinion.
Reply With Quote
  #7
Old 03-19-2013, 08:01 PM
Gilly's Avatar
Registered User

Join Date: Mar 2001
Location: Evansville WI
Posts: 9,616
Quote:
Originally Posted by ps2cho View Post
Just purely out of the curiosity and to keep within my budget, I have decided to do this in two stages:

Stage 1: Bigger condenser and dual fans sticking with R134a.
I want to see what immediate difference it makes with R134a with the small upgrade. Since the later condenser is still the same tube and fin design, I can simply flush it clean when moving onto stage 2

Stage 2: 17cc compressor and R12.

Will update soon with Stage 1 progression! Awaiting the condenser in the mail.
OK I see so you are going to see what happens with the condensor. I would give it a chance with the new compressor and 134 as well. I know you have more extreme conditions out there. I wonder what difference it makes that you guys are hot and dry and we in the midwest are hot and humid?
Reply With Quote
  #8
Old 03-19-2013, 08:06 PM
ps2cho's Avatar
Registered User

Join Date: Jun 2006
Location: Chandler, Arizona
Posts: 3,523
The hoses used in 1990-1991 connect to the later condenser, but still have the r12 fittings because in those model years, r12 was still used. You can see from the 2nd photo above. That is what I found out through this research. The so called "later" condenser in fact was used with R12...its not an R134a enhancement.
__________________
2016 Monsoon Gray Audi Allroad - 21k
2008 Black Mercedes E350 4Matic Sport - 131k
2014 Jeep Wranger Unlimited Sahara - 62k
2003 Gray Mercedes ML350 - 122k
Reply With Quote
  #9
Old 03-19-2013, 08:39 PM
Registered User

Join Date: Jan 2008
Location: Melbourne Australia
Posts: 834
I have a series II '90 W124 ex Japan.

It came with R12 and I still use it. The car has the dual fan setup and larger Denso condenser. The rear pipes for the condenser fit in O.K.

The trade off is that changing the water pump is extremely difficult. There is very little room behind the pump and above the condenser.

My setup works well. The dual fans only come on when the engine temp reaches 110. or in traffic. The R12 gas in my system is at the correct level. We have over 110 degree Fahrenheit temperature days in summer also.
Reply With Quote
  #10
Old 03-19-2013, 09:14 PM
ps2cho's Avatar
Registered User

Join Date: Jun 2006
Location: Chandler, Arizona
Posts: 3,523
Does the hose go behind the water pump??
It doesn't go to the side of the power steering pump?

Happen to be able to snap a picture?
__________________
2016 Monsoon Gray Audi Allroad - 21k
2008 Black Mercedes E350 4Matic Sport - 131k
2014 Jeep Wranger Unlimited Sahara - 62k
2003 Gray Mercedes ML350 - 122k
Reply With Quote
  #11
Old 03-19-2013, 09:37 PM
Home appliance genius

Join Date: Jul 2009
Location: cleveland
Posts: 1,160
You can create a fitting to makeup the distance between the old style to. New, otherwise go back and get the hose.

If you are going to do it, do it all at once. Every time you open up your system you re- contaminate it. I wish you were closer because I have everything you could ever need to do it right the first time. Spring for the nitrogen tank, keep in mind you can start filling your tires up with it as well

The regulator and misc stuff can be had on fleabay.

So says the guy with really cold a/c.
__________________
Eugene

10 E63 AMG
93 300te 4matic
07 BMW X3
14 Ford F-150 Fx2
Reply With Quote
  #12
Old 03-19-2013, 10:34 PM
Registered User

Join Date: Jan 2008
Location: Melbourne Australia
Posts: 834
Quote:
Originally Posted by ps2cho View Post
Does the hose go behind the water pump??
It doesn't go to the side of the power steering pump?

Happen to be able to snap a picture?
Sorry - Nephew has my W124 at the moment - I'm fixing his W202.

You sort of see it here
Reply With Quote
  #13
Old 03-30-2013, 12:25 AM
ps2cho's Avatar
Registered User

Join Date: Jun 2006
Location: Chandler, Arizona
Posts: 3,523
Got the condenser in today...So pretty
Went with Behr over Nissens because I got the hookup on a brand new Behr for the same price as the Nissens so since MB used Behr as the OE, I went with Behr. Says made in Thailand..
I am going to TRY and see if I can simply bend my current A/C to fit instead of paying for a new hose simply for location. It may work since I can bend the metal. Worst case I have to get the new hose from the junkyard. No biggie. Will report back if it works.





Next up is to evacuate system, remove radiator, attach dual fan assembly, install everything, add oil and recharge.

Now -- I have had nothing but large pressure before with r134a. Should I instead charge by low side and by measuring the evaporator temperature? Is that a better way than simply doing 80%?
The system wouldn't even ACCEPT 80% of the weight before.
__________________
2016 Monsoon Gray Audi Allroad - 21k
2008 Black Mercedes E350 4Matic Sport - 131k
2014 Jeep Wranger Unlimited Sahara - 62k
2003 Gray Mercedes ML350 - 122k
Reply With Quote
  #14
Old 03-30-2013, 12:34 AM
Home appliance genius

Join Date: Jul 2009
Location: cleveland
Posts: 1,160
Weren't you going to use r12?
__________________
Eugene

10 E63 AMG
93 300te 4matic
07 BMW X3
14 Ford F-150 Fx2
Reply With Quote
  #15
Old 03-30-2013, 02:16 AM
ps2cho's Avatar
Registered User

Join Date: Jun 2006
Location: Chandler, Arizona
Posts: 3,523
Quote:
Originally Posted by lorainfurniture View Post
Weren't you going to use r12?
I want to see how r134a performs with a simple condenser and fan change first just out of curiosity. Still planning to do r12.
