Extra bolt - where does it go? M104 timing cover task

I just replaced the upper timing cover seal and water pump on my 1995 E320. The problem is that I have an extra bolt left over and I can't figure out where it came from. It's a 13 mm bolt that looks similar to the ones used to bolt the the upper timing cover. This is not characteristic of my work and it has me worried.

All 6 bolts are present on the timing cover.
All 4 bolts are present on the water pump mount.
Both bolts are present on the water outlet on the timing cover front.
Both bolts are present on the air pump mount.
Both bolts are present on the power steering mount.

So where does it go?

Attached Thumbnails

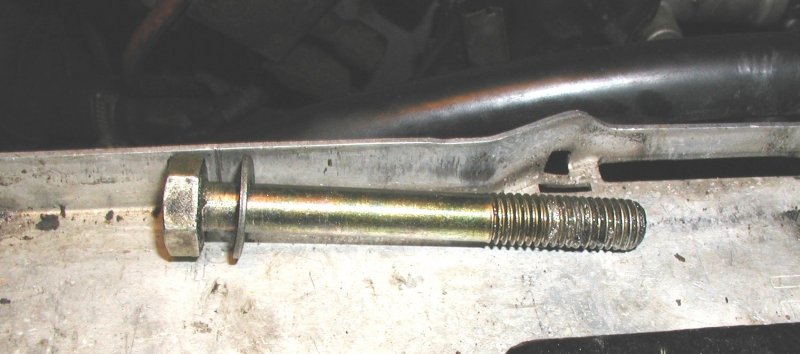

Extra bolt - where does it go? M104 timing cover task-p1010230.jpg
__________________
95 E320 Cabriolet, 159K
Reply With Quote
  #2
Old 05-16-2014, 11:50 PM
Registered User

Join Date: Feb 2007
Location: los angeles
Posts: 815
How about the bolt or bolts that go to power steering pump ? or the bracket that goes over tensioner?
Reply With Quote
  #3
Old 05-17-2014, 01:21 PM
I told you so!

Join Date: Jun 2002
Location: Motor City, MI
Posts: 2,853
Solved! It was a bolt removed from the lower timing cover.

__________________
95 E320 Cabriolet, 159K
