Hey guys, I'm new

Wanted to pick your brains for a minute. I have completed a heater core swap in my 99 C230 Kompressor, it is all done except for 1 plug under the dash I can't figure out or remember where it goes. It IS driving me nuts!

This plug is a cam lock type, like the 2 that go to the instrument cluster. The IC plugs are accounted for though. This one hangs down by the drivers right knee at the moment, in the vicinity of the OBDII plug.

It is marked..

:AMP
1-S67336-2
>PBT-GF15<

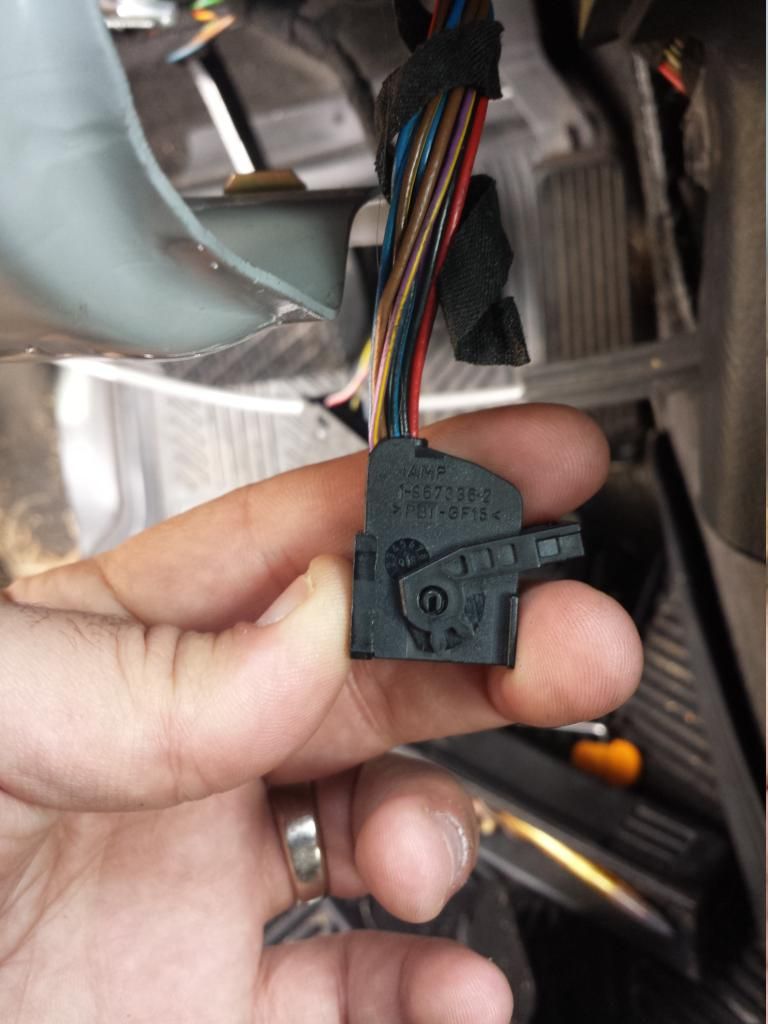

Here is a picture of it.

[/QUOTE]


I am positive it does not go to the IC as there are only 2 plugs I see on the cluster and they are both there ready to be plugged in. They are a large and medium cam lock type plug, this mystery one being a smaller version of those.

Thanks in advance for any help!
-Chase

Did you unplug the DAS box behind the instrument cluster? ( 4" x 5" x 1" black box above the brake pedal )

Please post the result to help others.

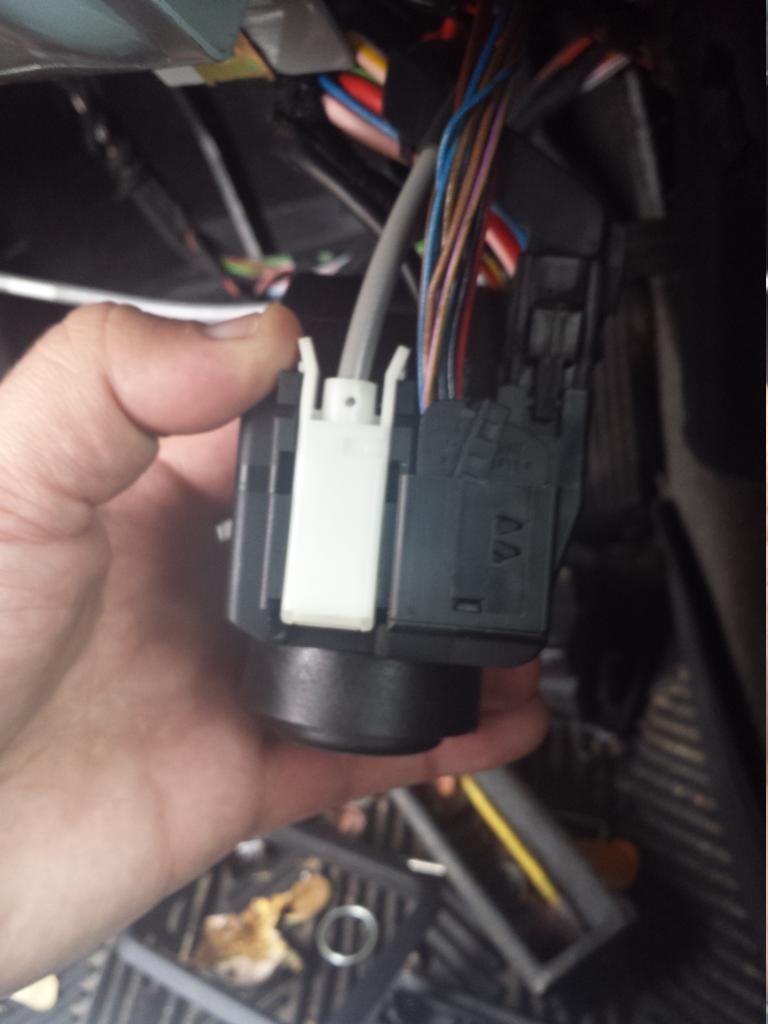

possibly, i will have to look. what is a DAS box? have to do with the ignition switch? that is all plugged in....

the das box? is this separate from the ignition switch? I will check it out!
