My 16-hole diagnostic port doesn't seem to match the info that I've found for how to use a code reader.

#1 besides the contact sleeve in the hole, it has a black button below it
#3 also has a contact sleeve and has a red light below it
#6, 7, and 14 are the only other ones that have contact sleeves.
All the others are empty.

The instructions on my reader say that #1 is for ground (black wire) and #16 (red wire) is for power but it's empty.

Of the available holes with contacts (3,6,7,14) which will I use for power?

Is it correct for me to assume that I'll pull codes from the remaining 3?

Thanks,

AL

__________________
03 CLK430 Cabrio 211K Pweter Silver/ Oyster Leather
90 300SEL 214k Pearl Black/ Alto Grey/Black Leather

Prior: 85 190E, 88 300TE, 89 300TE, 90 300E 2.6, 90 300TE, 92 300E 2.6, 91 and 93 300SL, 87 Ferrari Mondial Cabrio

I don't have direct experience with this but CA spec cars used the light and button, 49 state cars did not.

Just connect power to battery, connection 3 is trouble codes for cis

If it has an led and button , hold down button for 3 seconds and count the number of flashes

Seems like 89/90 was the break point of having a real port and one that tests items like the infinitely important seat belt buzzer only.

__________________
1985 300D 198K sold
1982 300D 202K
1989 300E 125K
1992 940T

"If you dont have time to do it safely, you dont have time to do it"

"The democracy will cease to exist when you take away from those who are willing to work and give to those who would not."

Calif. car owners. Any instructions on how to use the button and red light that's on the diagnostic socket itself?

Thanks.

__________________
03 CLK430 Cabrio 211K Pweter Silver/ Oyster Leather
90 300SEL 214k Pearl Black/ Alto Grey/Black Leather

Prior: 85 190E, 88 300TE, 89 300TE, 90 300E 2.6, 90 300TE, 92 300E 2.6, 91 and 93 300SL, 87 Ferrari Mondial Cabrio

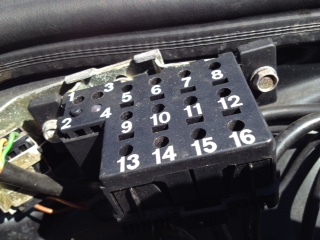

Per my local indi-mech, for CA cars with Black button and red light at diagnostic socket (below #1 and 3)

Key on w/ engine off
Hold black button down 4 seconds, then release
Count number of time red light flashes to determine error code
Repair issue
Reset by holding down black button down 8 seconds to move on to next code if present

System will only display one code at a time.
Reset only clears one code at a time.

Attached Thumbnails



__________________
03 CLK430 Cabrio 211K Pweter Silver/ Oyster Leather
90 300SEL 214k Pearl Black/ Alto Grey/Black Leather

Prior: 85 190E, 88 300TE, 89 300TE, 90 300E 2.6, 90 300TE, 92 300E 2.6, 91 and 93 300SL, 87 Ferrari Mondial Cabrio

Fault code manual for Mercedes...
http://www.mbslk.com/files/artikel/r170_fehlercodes.pdf
