92 300D fan problem

The fan in my 92 300D only runs on low speed, no matter what speed it is switched to. I am talking about the fan for the ac and the heat. Bad switch?

Reply With Quote
  #2
Old 03-31-2016, 07:36 AM
Registered User

Join Date: Aug 2006
Posts: 726
Either the pushbutton unit or the fan speed regulator module, which is mounted on a heat sink below the blower motor, could cause the problem that you describe.

You need to measure the control voltage coming from the pushbutton unit. There is a 3 terminal connector behind the brake booster that has black (ground), red (+12 volts) and yellow (control) wires.

The connector is quite difficult to get to. I made an adapter to measure the voltages but you could remove the plastic connector housing, re-install the terminals and then probe them to check voltages.

The voltage on the yellow wire should vary from 1.0 (low speed) to 6.0-10 volts (high speed) depending on your pushbutton unit settings. If your voltage does change but your fan speed does not then your speed regulator module is defective. If the voltage stays low, then it is your pushbutton unit.
Reply With Quote
  #3
Old 04-05-2016, 08:30 PM
Hogweed's Avatar
Watching SB LII every day

Join Date: May 2005
Location: in the back of beyond a.k.a. Pa.
Posts: 3,383
Plan on it being the regulator. In either case I have both parts if you need them
__________________
0o==o0

James 4:8

"...let us put aside the blindness of mind of those who can conceive of nothing higher than what is known through the senses"
-Saint Gregory Palamas, ---Discourse on the Holy Transfiguration of Our Lord God and Savior Jesus Christ


Centrally located in North East Central Pa.
Reply With Quote
  #4
Old 06-30-2016, 06:44 AM
Registered User

Join Date: Jun 2007
Location: Waterloo Illinois
Posts: 1,336
Ok, I changed the regulator and no change, I also changed the push button unit and no change. I also hooked up the fan directly to the battery and the fan is fine. What do I do now?
Reply With Quote
  #5
Old 06-30-2016, 01:33 PM
BenzEnthusiast's Avatar
Registered User

Join Date: Dec 2011
Location: Manteca, CA
Posts: 207

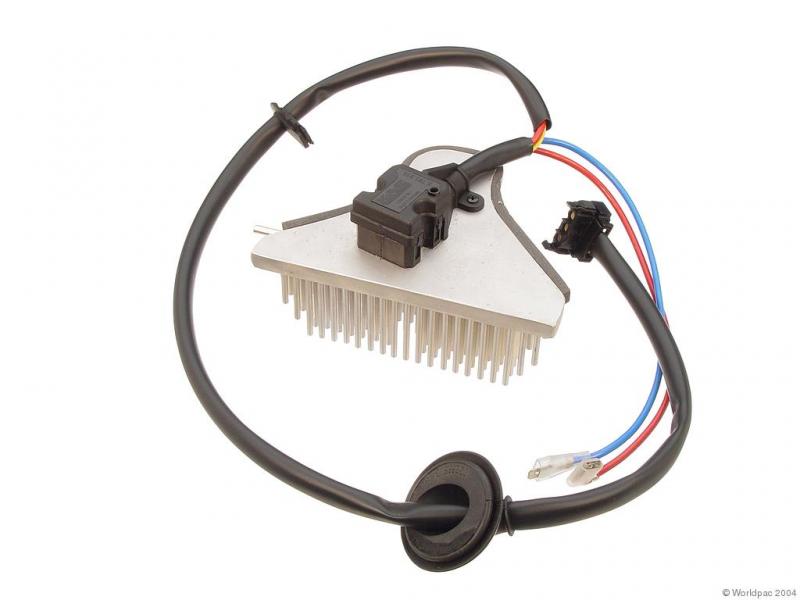

Did you replace the regulator and heat sink as one assembly or did you replace just the regulator and bolt it onto the old heat sink?

If you did the latter, then you need to be sure to use heat sink paste between the regulator and the heat sink.

I had this problem on my car until I replaced the regulator and put some fresh heat sink paste between there.
Attached Thumbnails
92 300D fan problem-440734d1335496645-1991-w124-blower-regulator-help-w01331598863kae-no-dust-filter.jpg
__________________
1998 E320 Wagon

1992 300D 2.5 TURBO

1991 560SEL M119.960

1986 300SDL TURBO

1992 500SL Parts Car

1991 420SEL Parts Car

Last edited by BenzEnthusiast; 06-30-2016 at 02:31 PM.
Reply With Quote
  #6
Old 07-01-2016, 06:36 AM
Registered User

Join Date: Jun 2007
Location: Waterloo Illinois
Posts: 1,336
Quote:
Originally Posted by BenzEnthusiast View Post
Did you replace the regulator and heat sink as one assembly or did you replace just the regulator and bolt it onto the old heat sink?

If you did the latter, then you need to be sure to use heat sink paste between the regulator and the heat sink.

I had this problem on my car until I replaced the regulator and put some fresh heat sink paste between there.
Heat sink paste? No i did not put any heat sink paste between them, that will cause it not to work? Where do I get the heat sink paste? Thanks for all the heip.
Reply With Quote
  #7
Old 07-04-2016, 02:12 PM
BenzEnthusiast's Avatar
Registered User

Join Date: Dec 2011
Location: Manteca, CA
Posts: 207
I know that if the heat sink compound is not present it can cause the resistor to overheat. The paste helps transfer the heat between the two surfaces. Also, on my car, the previous owner had replaced that part without the heat sink paste and the resistor burned out. When I replaced it, I put the paste between the heat sink and the resistor and the blower now blows very strongly and has been doing so for over 2 years.

You can find it at most electronics stores, but you can also buy it online.

Also, did you test the voltage going to the resistor to make sure that the CCU is working properly?
__________________
1998 E320 Wagon

1992 300D 2.5 TURBO

1991 560SEL M119.960

1986 300SDL TURBO

1992 500SL Parts Car

1991 420SEL Parts Car
Reply With Quote
  #8
Old 07-05-2016, 11:19 AM
Registered User

Join Date: Nov 2010
Location: TX
Posts: 3,979
get a tube of the heatsink paste from frys or best buy - its in the custom computers aisle.

__________________
2012 BMW X5 (Beef + Granite suspension model)

1995 E300D - The original humming machine (consumed by Flood 2017)
2000 E320 - The evolution (consumed by flood 2017)
