  #1
Old 03-15-2018, 02:21 AM
Registered User

Join Date: Jul 2013
Location: Phoenix, AZ.
Posts: 155
A/C Options...

Hey guys, just bought my first 560SEL. It has been converted in the past to r134a, but is currently blowing warm air, and that is no good since it's getting warmer in Phoenix and it's only going to get worse. Silver lining is that the previous owner replaced all of the vacuum pods in the HVAC system. I have a $1,000 to spend on either recharging the system with r134a, or converting it back to r12. I am inclined to go back to r12 since this system is designed for it, but not sure how expensive that would get. I just don't want to regret it mid-summer if it's not good enough with r134a in 115 degree heat. Any thoughts on this, or anyone know of someone in the Phoenix area familiar with re-converting r12 systems? Thanks - Mike
Reply With Quote
  #2
Old 03-15-2018, 11:28 AM
Diseasel300's Avatar
Registered User

Join Date: May 2016
Location: Texas Hill Country
Posts: 4,274
Was the conversion a proper conversion, complete with expansion valve, or did they just dump gas and oil in the system and let 'er rip?

If they changed the expansion valve, you're now stuck with 134a. The good news is that with the expansion valve changed, the Gen II W126's work well with 134a since they have a much improved condenser compared to the earlier models. It helps if you have your windows tinted. Not sure how well it works in 115˚ heat, but I've had mine running in 110˚ heat and it did just fine.

If the system has leaked out, you probably have a leak somewhere. Best to have that found and fixed before dumping gas in there. The O-ring seals in the various connections are the most prone to leaking.
__________________
'11 Honda Accord EX - "The Daily" 64K
'83 500SL Euro - "The Money Pit" 116K
'86 300SDL - "The Diseasel" 189K (Totaled 1/31/19)
The Diseasel Thread - Everything You Didn't Know You Wanted To Know
Reply With Quote
  #3
Old 03-15-2018, 11:40 AM
Registered User

Join Date: Apr 2003
Location: Phoenix Arizona. Ex Durban R.S.A.
Posts: 3,391
What year is your 560?
- Peter.
__________________
81 240D stick. 316000 miles at purchase. 342000 now
2000 GMC Sonoma
Formerly...
2002 Kia Rio. Worst crap on four wheels
1981 240D 4spd stick. 389000 miles. Deceased Jan 08
1984 123 200
1979 116 280S
1972 Cadillac Sedan DeVille
1971 108 280S
Reply With Quote
  #4
Old 03-15-2018, 04:40 PM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: SF Bay Area
Posts: 20,638
Do you have a shop that will charge with R12? They’re really hard to find in San Jose. I think it’s easier for them to deal with R134a exclusively so they say R12 is illegal. There are hydrocarbon alternatives (eg; I-12a, ES-12a) some swear by and others say aren’t good long term solutions.

Sixto
98 E320s sedan and wagon
Reply With Quote
  #5
Old 03-15-2018, 05:39 PM
Registered User

Join Date: Jul 2013
Location: Phoenix, AZ.
Posts: 155
reply

I'm not sure if it was a proper conversion or not, but I'm inclined to think it was since all work was done at the Mercedes dealership and everything looks very clean. The original owner was an older lady who passed away a year ago and had the car since new, then her grandson inherited it and occasionally used it. Judging by the receipts, whatever the dealer suggested she do, so just handed them her gold card. Very wealthy family. The car has 209,000 miles on it, but I'm thinking it's mostly highway and/or longer trips since the family lives on the outskirts of town in a rural farming area. It's a 1988 and silver-blue with blue leather. Leather has zero rips and just needs some Tanner's Preserve to hydrate it. Transmission shifts smoothly except yesterday when it randomly flared from 2-3 (I think) for a split second a couple times, but I think it's low on tranny fluid. I just ordered a bunch of parts (dash mat, cup holders, side marker lights, headlight doors, tow hook cover, driver's seat switch, 4 new door puddle lights, etc) and need to get a new plastic grill insert too. Maybe URO or something. The Becker Grand Prix tape deck works, but the radio stations are dead silent. It's the model that doesn't have the separate "brain" in the trunk, so must be built in. But yeah, I don't know of anyone who does r12 here in the valley, but my mechanic definitely works with r134a. Any physical differences I could be able to make out by just glancing up at the expansion valve to figure out if it's been changed? - Mike

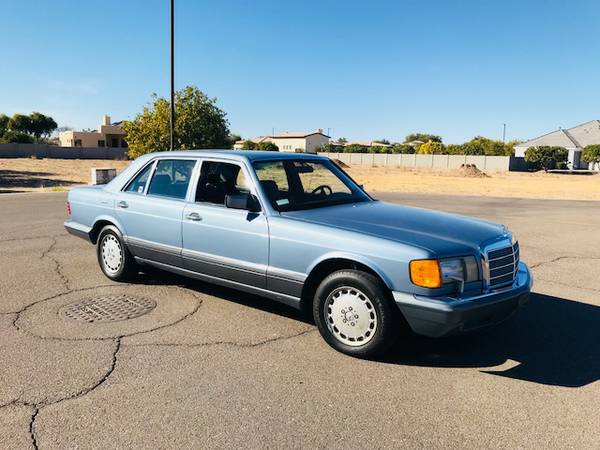

A/C Options...-560.jpg

Last edited by Mikebear79; 03-15-2018 at 05:41 PM. Reason: typos
Reply With Quote
  #6
Old 03-15-2018, 09:04 PM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: SF Bay Area
Posts: 20,638
How long ago was the conversion? I imagine someone who gave the shop carte blanche would have been happy with the conversion or done something about it. If so, have the system leak tested, repaired as necessary then charged with R134a. Consider an R12 “upgrade” if iR134a is incapable of a 115*F day. Consider also that the incapability of an R134a charge might not be caused by your refrigerant choice. It could be a tired compressor, clogged refrigerant line, etc.

Sixto
98 E320s sedan and wagon
Reply With Quote
  #7
Old 03-16-2018, 11:18 AM
Registered User

Join Date: Apr 2003
Location: Phoenix Arizona. Ex Durban R.S.A.
Posts: 3,391
Quote:
Originally Posted by Mikebear79 View Post
It's a 1988 and silver-blue with blue leather.

Attachment 147063
Nice one. There were several 560's available locally over the last few months. I'd been considering that one as well as I saved up for a new vehicle, but in the end I just fixed up the A/C in my truck.

- Peter.
__________________
81 240D stick. 316000 miles at purchase. 342000 now
2000 GMC Sonoma
Formerly...
2002 Kia Rio. Worst crap on four wheels
1981 240D 4spd stick. 389000 miles. Deceased Jan 08
1984 123 200
1979 116 280S
1972 Cadillac Sedan DeVille
1971 108 280S
Reply With Quote
  #8
Old 03-16-2018, 01:05 PM
Hit Man X's Avatar
I LOVE BRUNETTES

Join Date: Sep 2004
Location: FUNKYTOWN
Posts: 9,057
Thumbs up

We just discussed this in another thread - R12 System - Evacuate or not? It should help too.

System works leaps and bounds better with R12 than 134A. You probably need an entire system overhaul... condenser cleaning, evaporator cleaning, verify aux fan works, new fan clutch, be certain you are not losing airflow to the defrost pod, the recycle door pods work, etc.

You are in AZ like my pal in Mesa. Tint that thing ASAP with quality film, something ceramic and go as dark as legally possible. Use windshield reflective screens in the front AND back anytime you park, you want to keep as much of that sun and heat out of the interior as possible. Park with the rear glass pointing to the sun if possible, less heat on the dash, which is less heat for the evap to remove.

It will take four, 12oz cans to fully fill your car with R12. Buy it now and you can usually snag a can for about $25/ea. Wait much longer and you will pay the premium due to what I call 'the summer tax'. Since it blows hot now, I would just toss in 152A and get on with life as that can be done for about $12. Start cleaning critical components as you have time....do not be shocked to find out how nasty your evap is after all these years.

Been my experience that R12 will not leak from the hoses at nearly the same rate as 134/152A will due to molecular size. I am not talking about o-ring leaks.
__________________
I'm not a doctor, but I'll have a look.

'85 300SD 244k
'87 300SDL 251k
'90 300SEL 325k
'91 560SEL 189k

Eight others from IH, BMW, GM, Ford, and Volvo.

Liberty will not descend to a people; a people must raise themselves to liberty.
[/IMG]
Reply With Quote
  #9
Old 03-17-2018, 12:49 PM
Registered User

Join Date: Jan 2018
Posts: 259
Not sure about an 88 560, but as I confirmed with part numbers and observation of my 92 and 93 300TE and E parts cars, the AC components (except expansion valve) are identical in a factory R12 or R134a system.
Reply With Quote
  #10
Old 03-17-2018, 07:53 PM
Registered User

Join Date: Oct 2007
Location: Greater Metropolitan Beaverdam VA
Posts: 2,122
I had my 1983 W123 converted to R134. It was properly done with R134-compatible compressor, expansion valve, dehydrator, hoses and o-rings. The molecular structure of R134 is smaller than R12 and it WILL leak through the hoses and o-rings if they are not replaced with the right ones.

Performance in Virginia on those days approaching 100 deg has been fine for the past 5 years since converted. I think with the addition of a good cross-flow condensor performance will meet or exceed that of an R12 system. If I lived in a hotter climate, it would probably be essential. I may look for one anyway.
Reply With Quote
  #11
Old 03-19-2018, 02:07 PM
Hit Man X's Avatar
I LOVE BRUNETTES

Join Date: Sep 2004
Location: FUNKYTOWN
Posts: 9,057
Thumbs up

I tossed a PF condenser in the 300SD as the original sprung a leak due to an unruly rock. My SD came with the small tube unit as found on the '85-87/90-91 Diesel W126. Trying to find a replacement was a waste of time, so now I have R12 with a PF condenser. I would agree it would be a requirement for the early condenser with small aux fan cars to attempt to run 134A.
__________________
I'm not a doctor, but I'll have a look.

'85 300SD 244k
'87 300SDL 251k
'90 300SEL 325k
'91 560SEL 189k

Eight others from IH, BMW, GM, Ford, and Volvo.

Liberty will not descend to a people; a people must raise themselves to liberty.
[/IMG]
Reply With Quote
  #12
Old 03-19-2018, 07:51 PM
Registered User

Join Date: Jul 2013
Location: Phoenix, AZ.
Posts: 155
Update

Well, I took my 560sel in to the mechanic today and he was generally impressed with the over-all shape of the car. He said the A/C compressor looked pretty new and that when he went to vacuum out the system, it had barely anything left in it. He recharged it up with new r134a and took it for a drive. Everything was working fine when he pulled back up to the shop. The system was clicking on and off, the compressor had a healthy whirring sound to it and the aux fan was cycling between low and high. Interior was pretty damn cold, Iíd say. Thereís just one weird thing. When I have the temp wheel set to 22 and the big middle button pressed, the a/c air flow will alternate between blowing out the center vents or the defrost. I donít remember that being normal on a 300E I used to have a while back. I know from receipts that all of the pods were replaced in 2010, which was 10k miles ago. If I rotate the temp wheel to 18, itíll ramp up the fan speed and defrost will switch back to center vents. Itís maybe 72 here today. Any thoughts? Vacuum valve sticky or maybe a general vacuum leak vs a pod?
Reply With Quote
  #13
Old 03-19-2018, 11:05 PM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: SF Bay Area
Posts: 20,638
Interesting that a reputable professional would charge a depleted system without confirming system integrity but I wasn’t there.

Check the vacuum supply to the ACC first.

The PBU can go goofy. A rebuilt - whatever that means - or new unit will fix things. I can’t imangine what a new PBU costs.

Sixto
98 E320s sedan and wagon
Reply With Quote
  #14
Old 03-20-2018, 01:03 AM
Registered User

Join Date: Jul 2013
Location: Phoenix, AZ.
Posts: 155
Acc vacuum

Whereís the acc vacuum at so I can check it?
Reply With Quote
  #15
Old 03-20-2018, 01:30 AM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: SF Bay Area
Posts: 20,638
IIRC it comes from the engine to a yellow check valve by the brake booster then into the cabin. I’m not sure if the same line supplies the folding rear headrests. Or maybe 126s don’t have a dash switch to lower rear headrests. There’s a vacuum switch bank in passenger footwell to control air distribution. It’s an involved process to check all the pods from there

Sixto
98 E320s sedan and wagon
